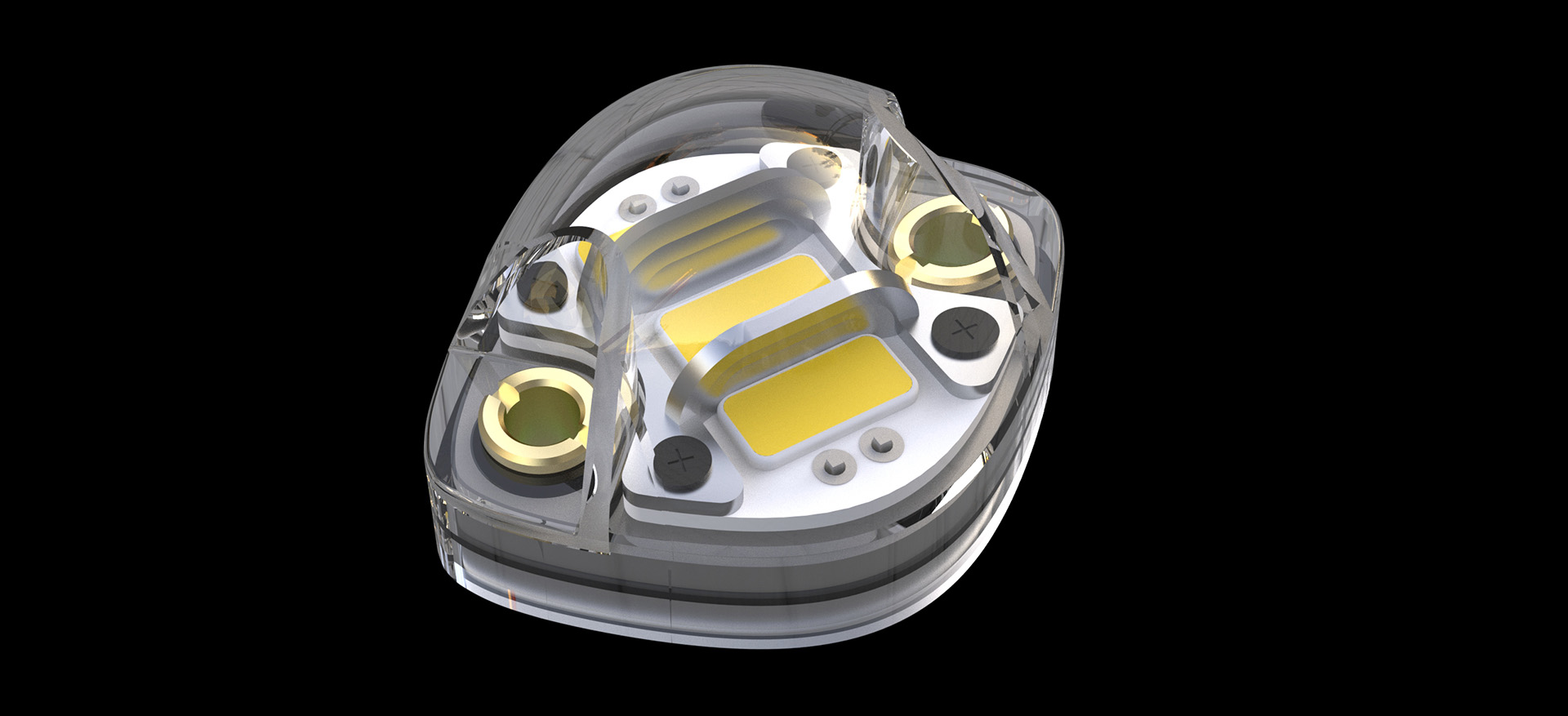

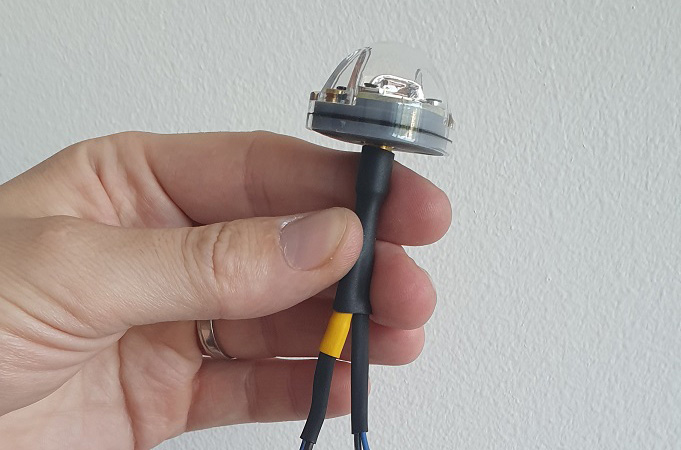

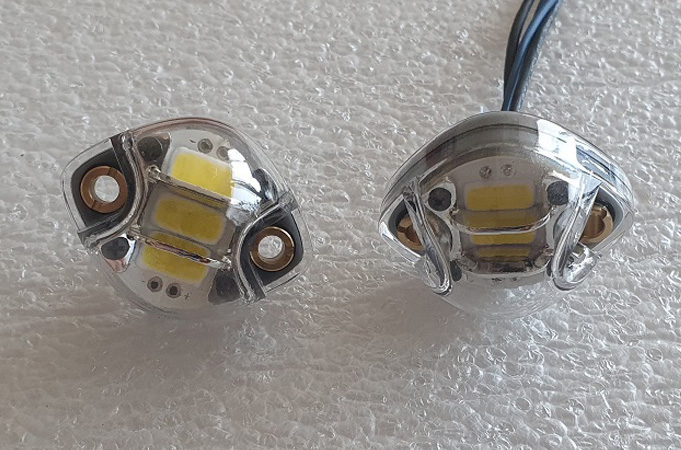

PosiStrobe DV

Tiny Rear Position / Strobe LED Light for Drones

PosiStrobe - rear position / strobe light

At only 20.5 millimeters in height (0.809 inches) the new PosiStrobe DV™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

PosiStrobeDV_2+ PosiStrobeDV_thumbnl+ PosiStrobeDV+ PosiStrobe DV - Rear Position Strobe Light+ PosiStrobeDV_3+

Specification

Dimensions (mm): 34.6 mm x 27.6 mm x 20.5 mm
Dimensions (inches): 1.36“ x 1.09“ x 0.81“
Weight: 16 g / 0.56 oz
Operating Voltage Range: 10 – 18 VDC
Input Current – Steady:
Input Current – Strobe (peak):		 0.05A @14V
0.6A @14V
Input Power – Steady:
Input Power – Strobe (peak):		 0.7W @14V
8.4 W @14V
Repetition Rate of Strobe: 50 cycles per minute
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: Yes
Reverse Polarity Protection: Yes
Transient Voltage: 24 V
Waterproof, Dust-proof, Vibration-proof: Yes

Specification Sheet

DOWNLOAD HERE

Drawing

Posi_Strobe_DV
