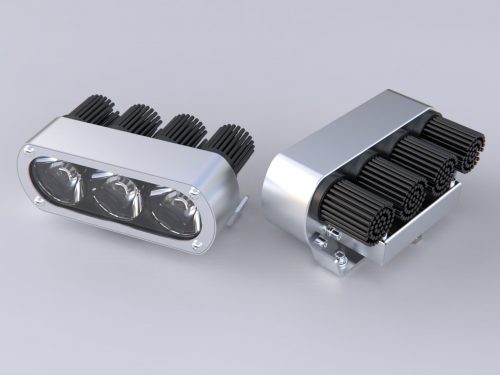

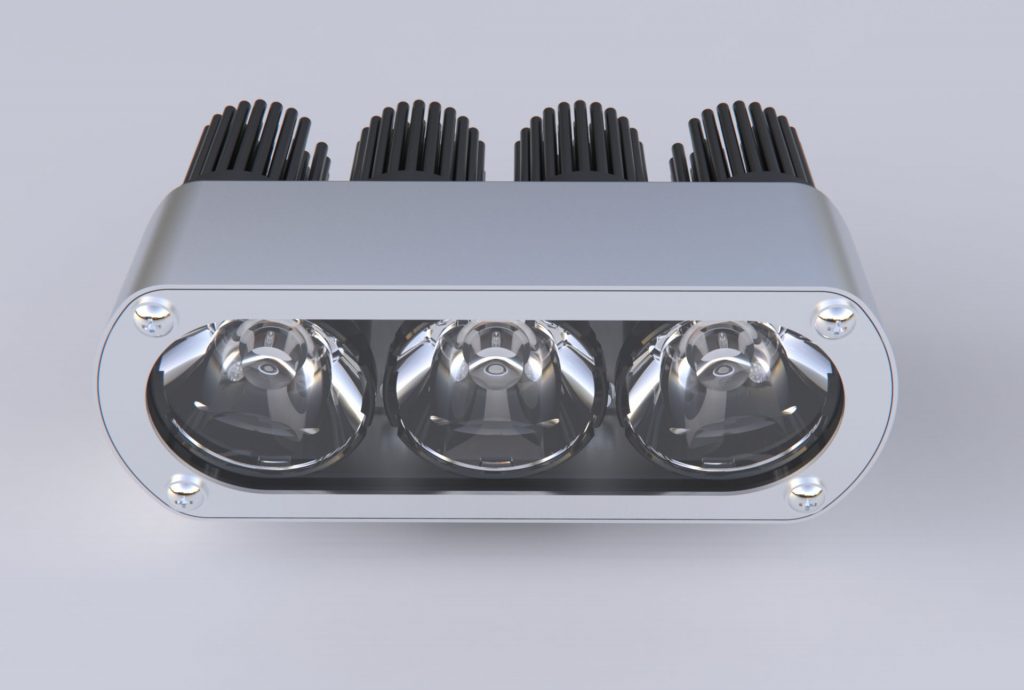

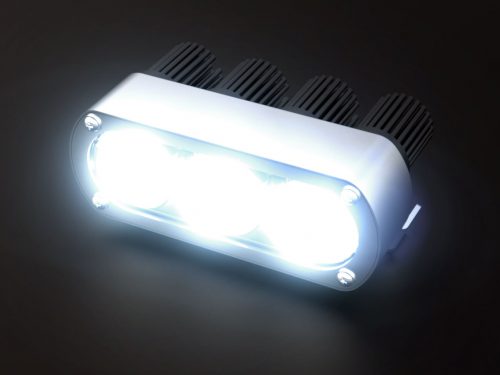

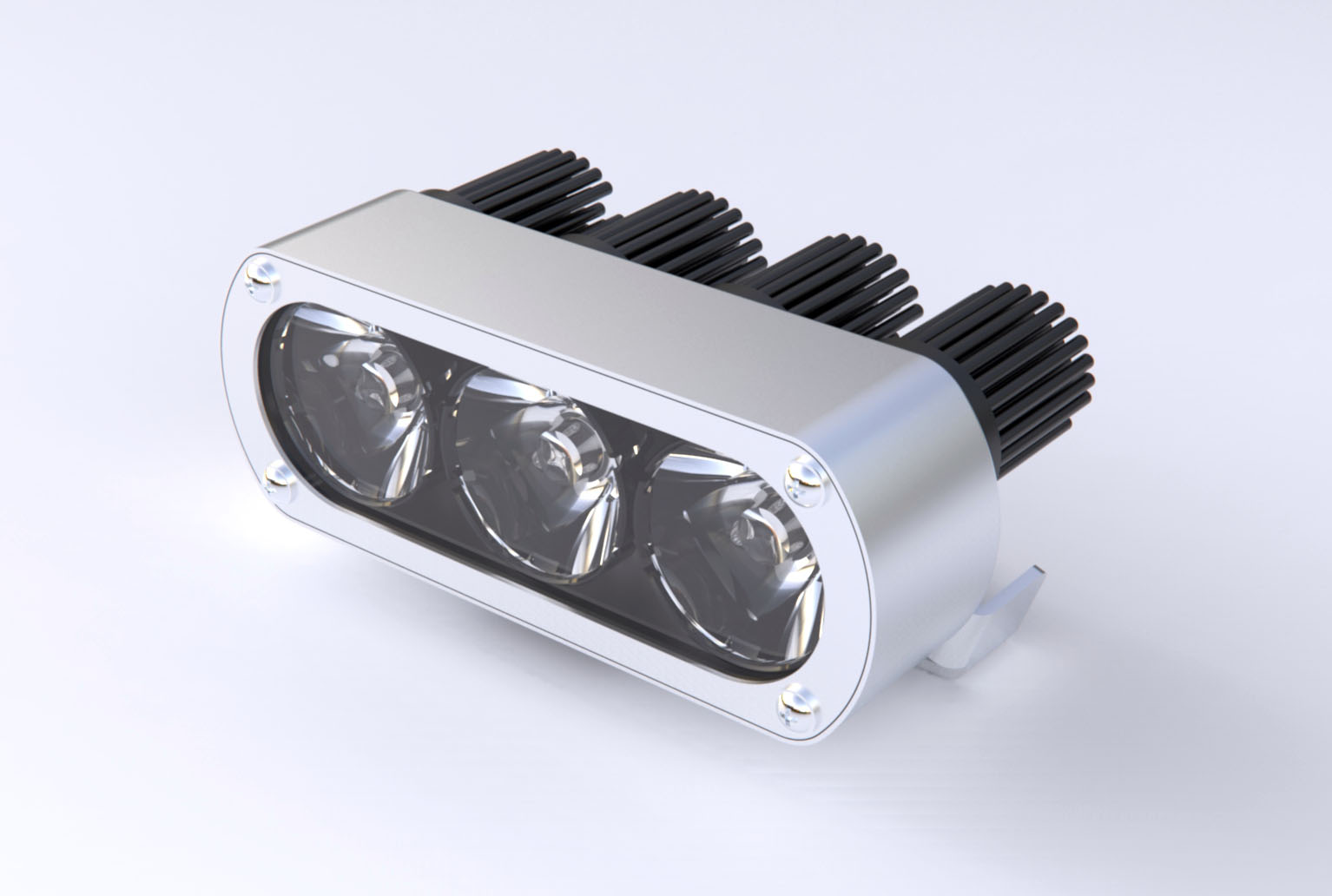

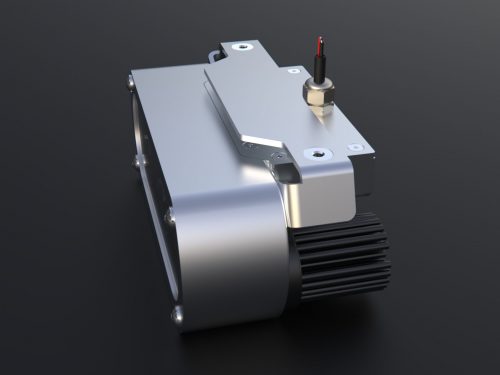

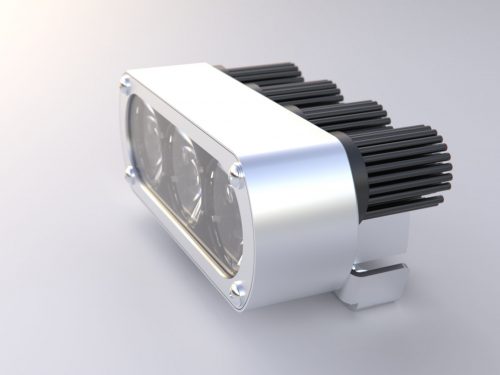

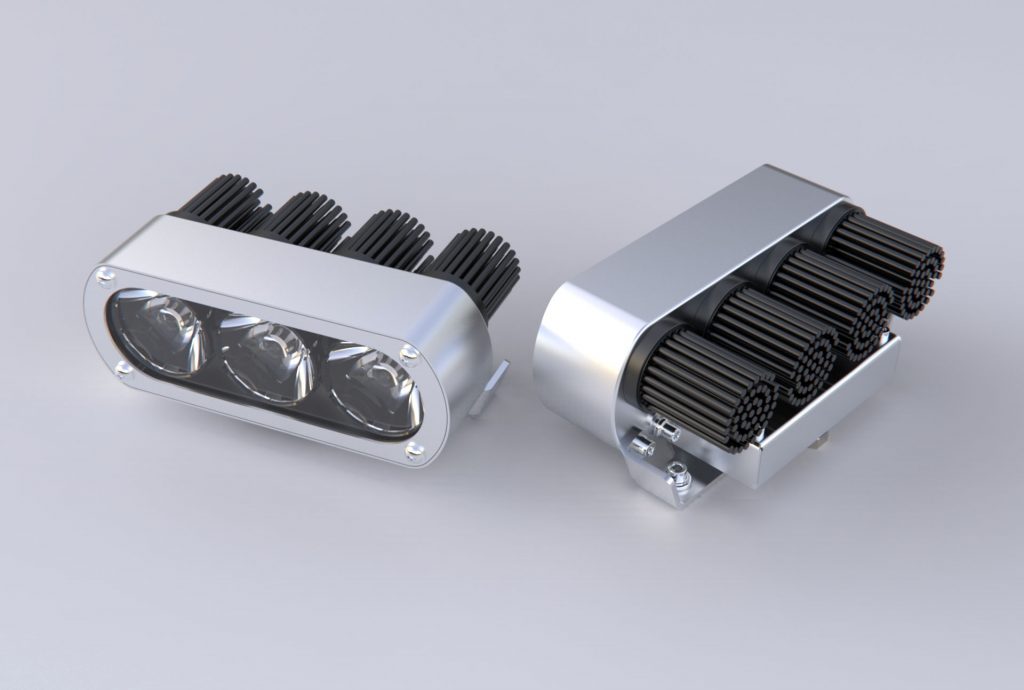

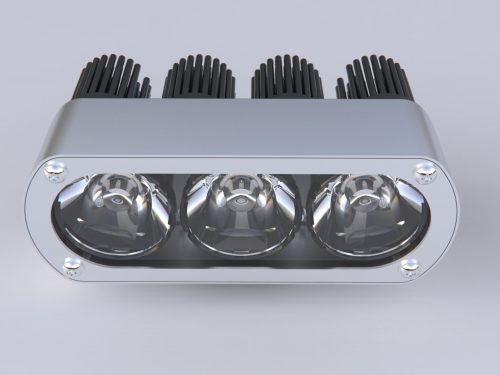

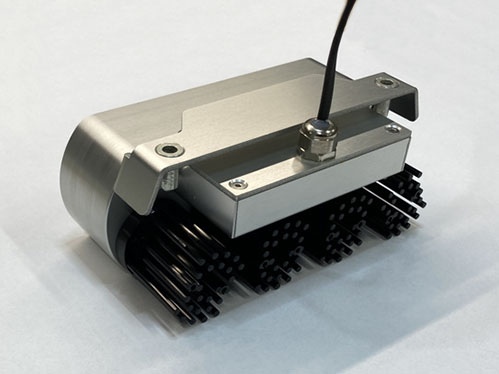

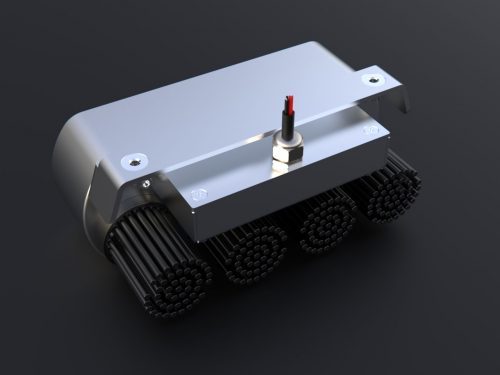

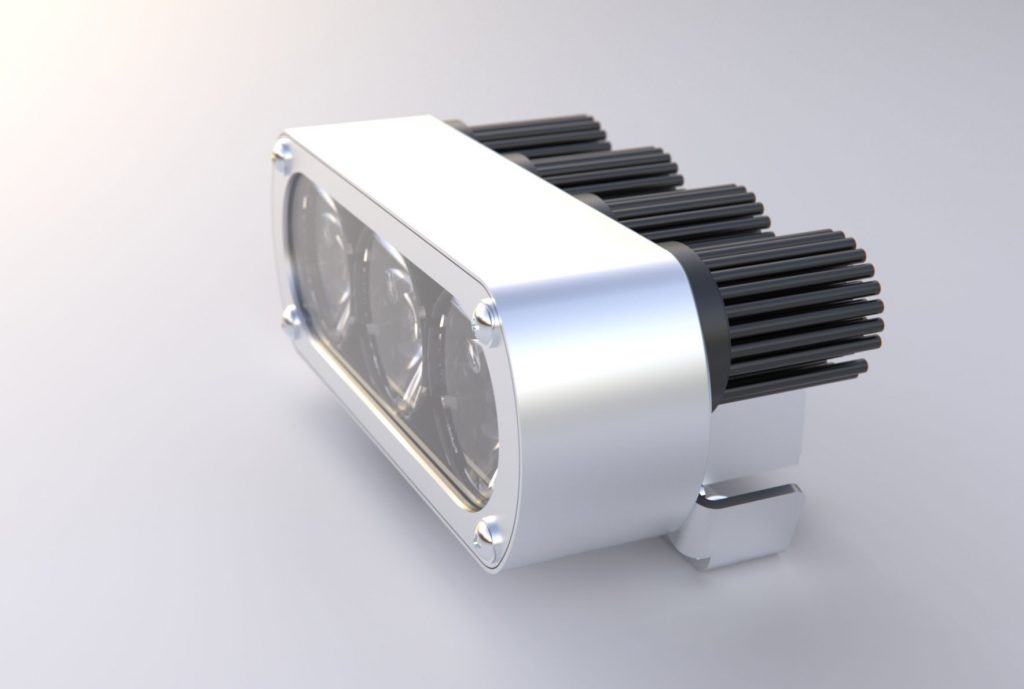

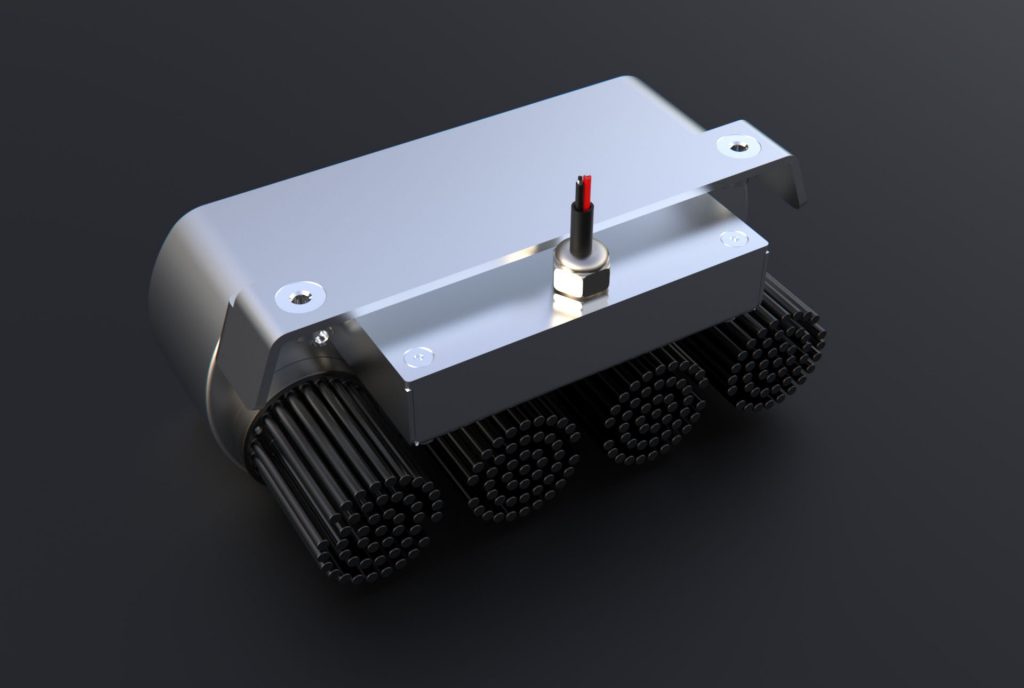

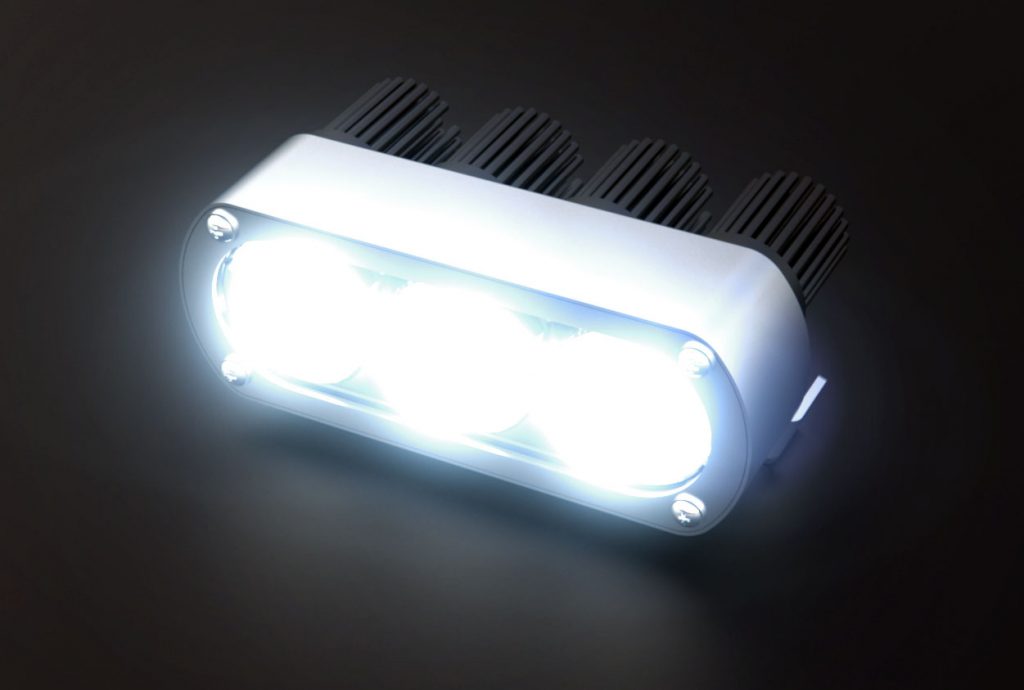

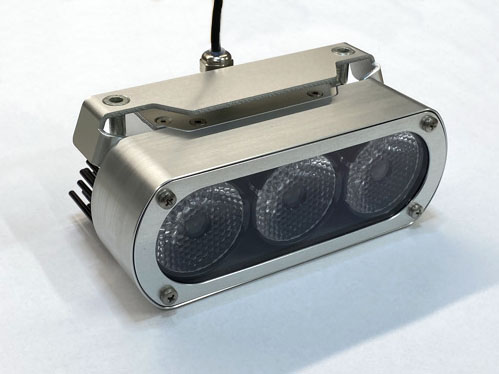

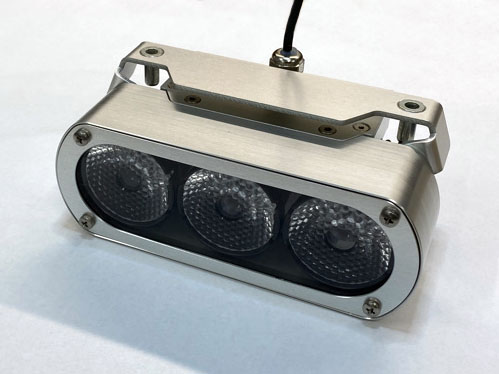

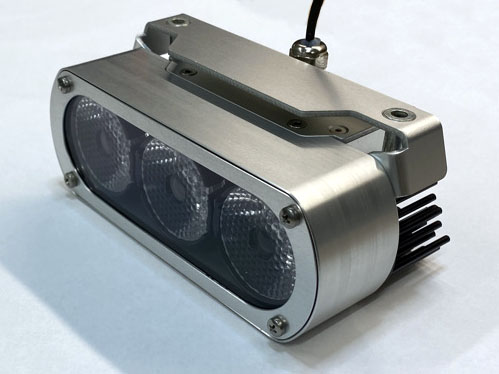

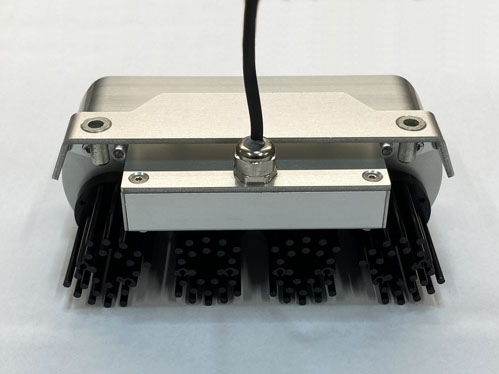

Nubius – Landing or Taxi Light

Affordable Hi-Performance Landing or Taxi Light

Stunning Performance at an Amazing Price Point!

Lens Options: 3° – AVE-NB3SW-TU1
10° – AVE-NB3SW-TN1
28° – AVE-NB3SW-TM1
37° x 9° – AVE-NB3SW-TA1

Specification

Dimensions (mm): 132 mm x 57 mm x 72 mm
Dimensions (inches): 5.2“ x 2.24“ x 2.83“
Weight: 500 g / 17.63 oz
Operating Voltage Range: 18 – 36 V DC
Input Current: 1.05 A @ 28 VDC
Input Power: 29.4 W @ 28 VDC
Fuse (Circuit Breaker) Recommendation: 3 A
Ambient Temperature: from -55°C to +80°C
from -67°F to +176°F
Overheat Protection: Yes (temperature dependent decrement of intensity)
Recommended Size of Mounting Screw: M4x12
Color: Cool White
Lens Options:
AVE-NB3SW-TU1
AVE-NB3SW-TN1
AVE-NB3SW-TM1
AVE-NB3SW-TA1

3°
10°
28°
37x9°
Reverse Polarity Protection: Yes
Transient Voltage: 55V
Under-Voltage Protection (lockout): 16.25 V
Over-Voltage Protection (lockout): 39.5 V
Useful Life: not less than 30,000 aircraft flight hours
Waterproof, Dust-proof, Vibration-proof: Yes

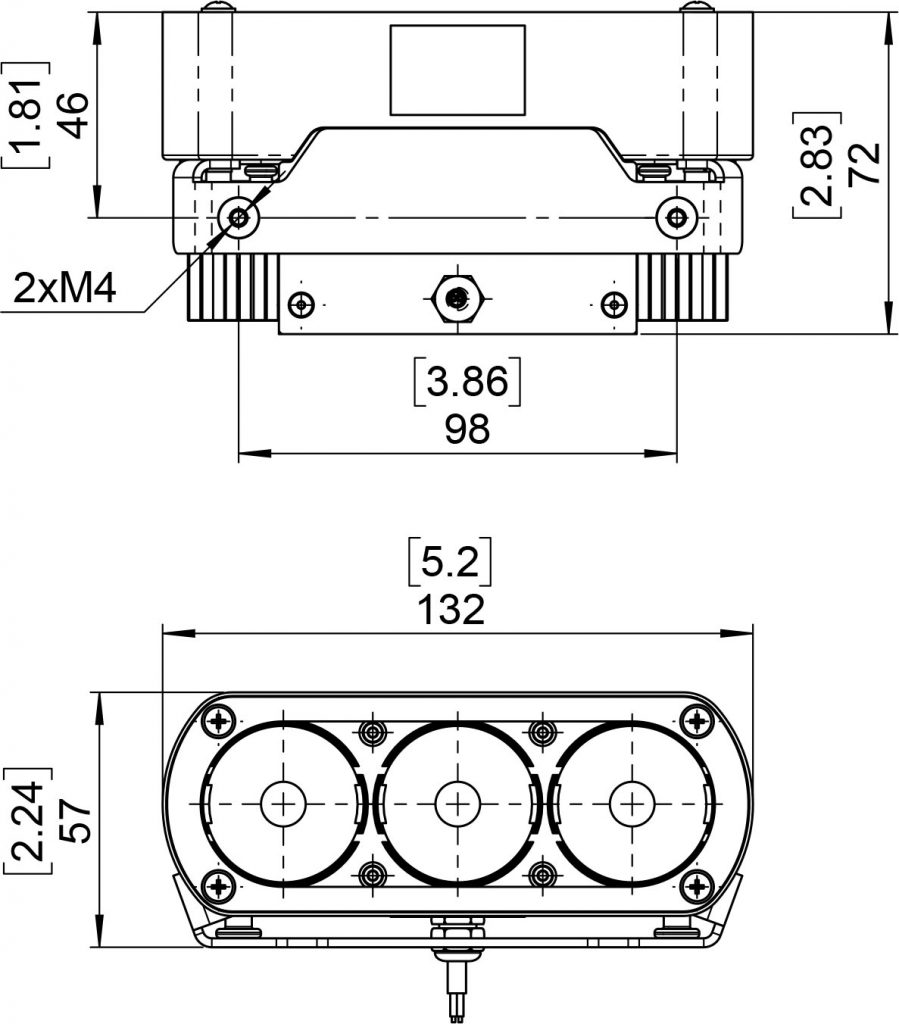

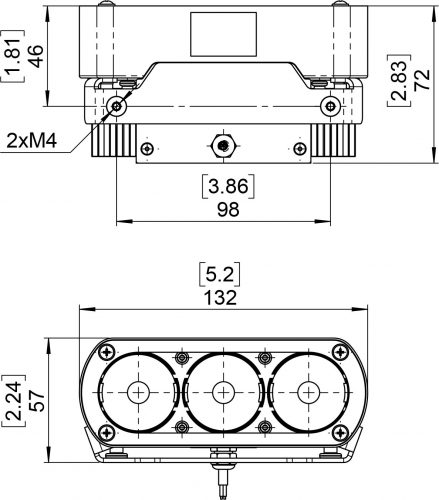

Drawing

drawing

Intensity

AVE-NB3SW-TU1 – 3°: 162.000 cd

AVE-NB3SW-TN1 – 10°: 63.000 cd

AVE-NB3SW-TM1 – 28°: 13.500 cd

AVE-NB3SW-TA1 – 37° x 9°: 26.800 cd

Specification Sheet
