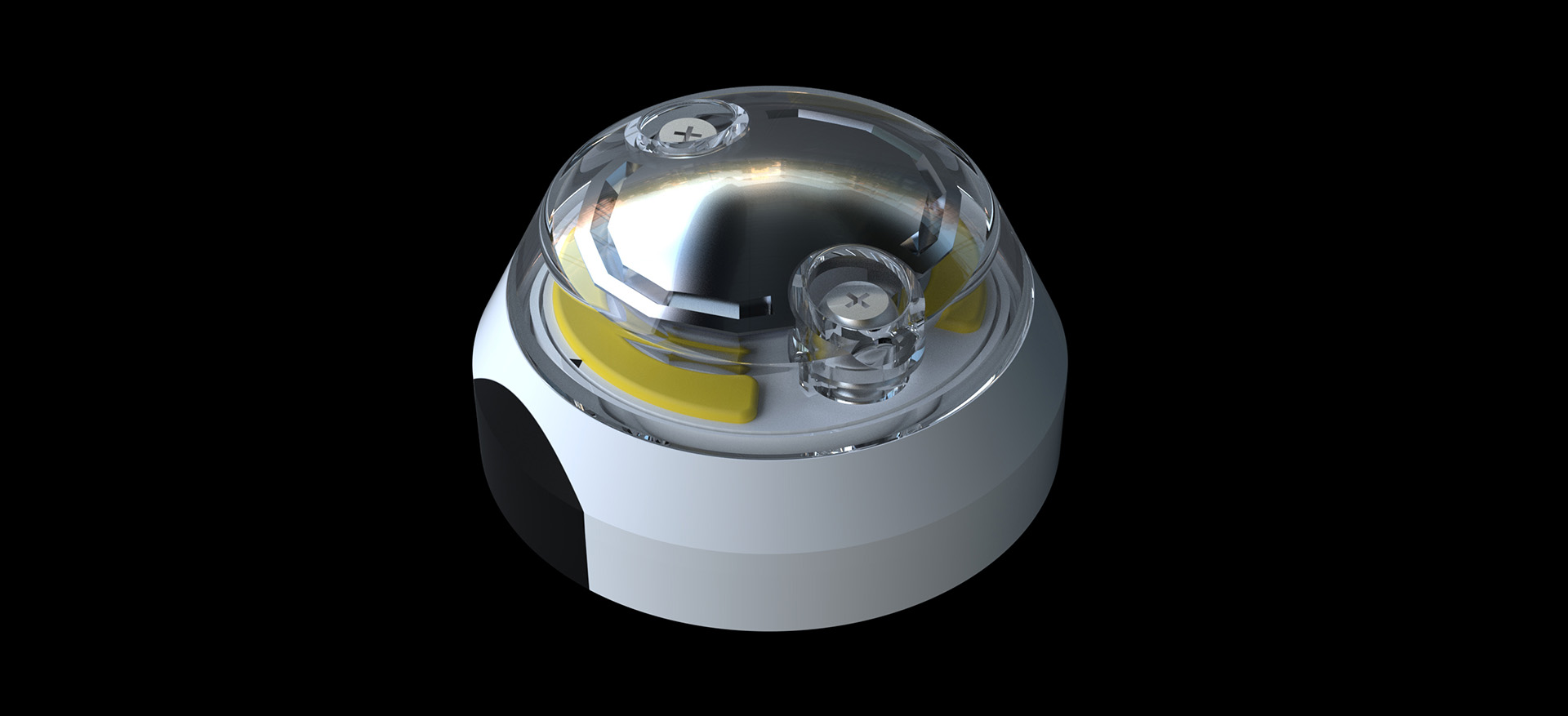

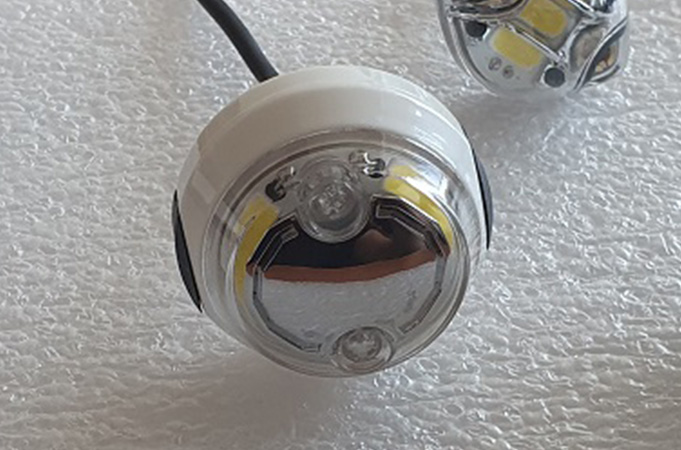

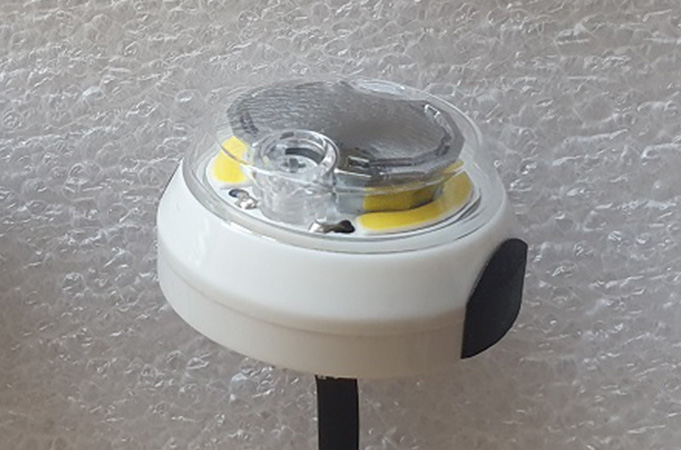

MicroMax DV

Tiny Anti-collision LED Light for Drones

Anti-collision LED light – Red, Green or White

Fully D0-160 tested and weighing 17 grams, MicroMax DV™ will help you comply with all the tightening and future regulations around operating small UAVs/MiniDrones and ensure SAFETY is included in your flight operations. Available in Red, Green or White, the patented MicroMax DV™ provides a 360 degree arc of coverage. An amazing product from Aveo’s famous engineering prowess, which has made it the world market leader in UAV lighting by a wide margin.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

MicroMax DV - anti-collision light for drones+ MicroMax DV - anti-collision light for drones+ MicroMax DV - anti-collision light for drones+ MicroMax DV - anti-collision light for drones+

Specification

Dimensions (mm): 39 mm x 39 mm x 20 mm
Dimensions (inches): 1.54“ x 1.54“ x 0.79“
Weight: 17 g / 0.6 oz
Operating voltage range: 5-9 VDC
Input Power (peak): 3.75W @5V
Input Current (peak): 0.75A @5V
Repetition Rate of Strobe: 50 cycles per minute
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: Yes
Reverse Polarity Protection: Yes
Transient Voltage: 24V
Waterproof, Dust-proof, Vibration-proof: Yes

Specification Sheet

DOWNLOAD HERE

Drawing

Picollo_drawing
