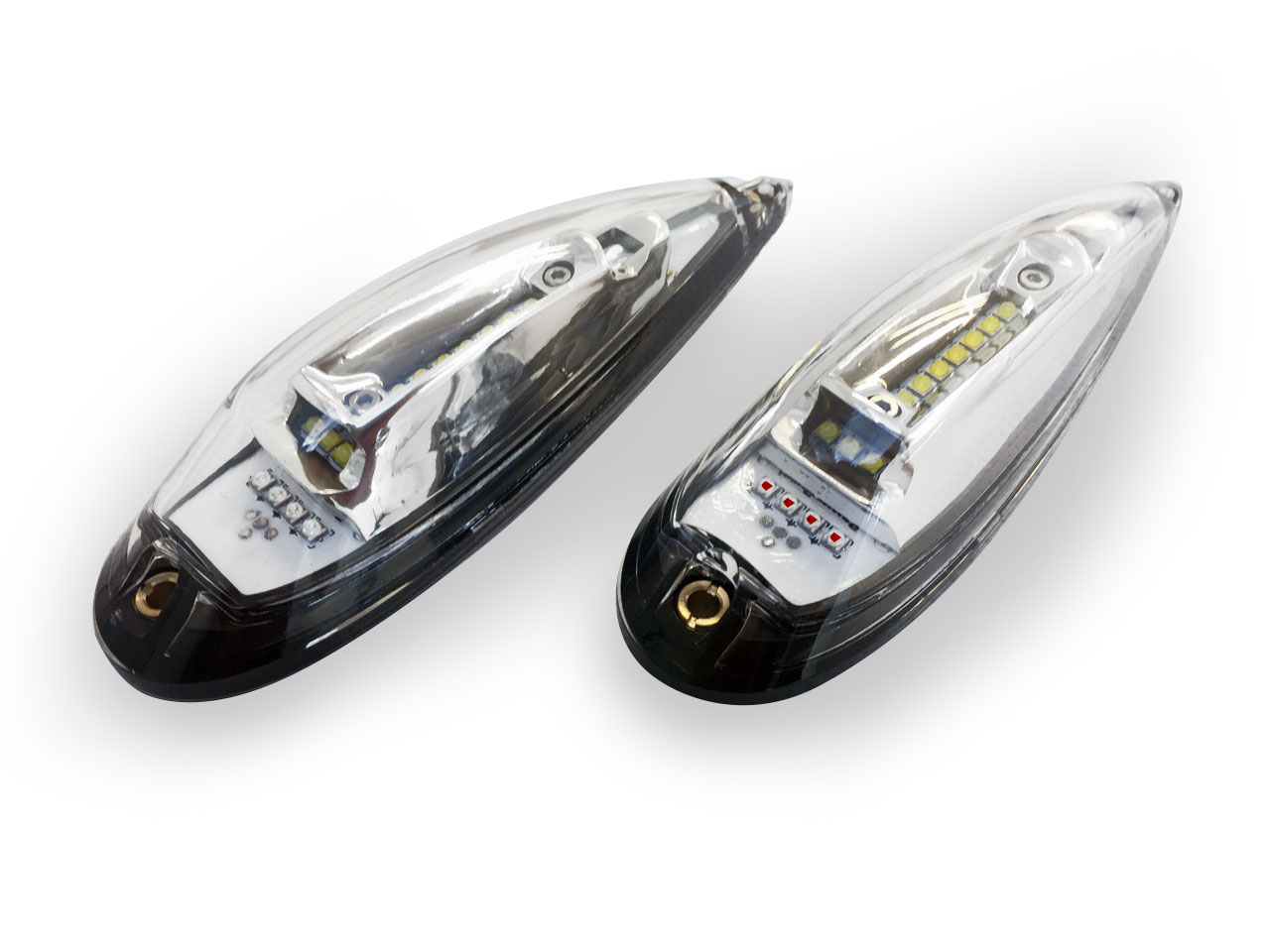

PowerBurst NG DayLite
Navigation / Position / Strobe LED light
WATERPROOF, VIBRATION PROOF
Often copied, never matched
At only 26 millimeters in height (1.024 inch) the new PowerBurst NG™ DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and LED management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification
| Dimensions (mm): | 115 mm x 33 mm x 26 mm |
|---|---|
| Dimensions (inches): | 4.547” x 1.302” x 1.024” |
| Weight: | 64 g / 2.25 oz |
| Operating Voltage Range: | 9 – 18 V DC |
| Input Current – Position / Nav - green (@14V): | 0.28 A |
| Input Current – Position / Nav - red (@14V): | 0.23 A |
| Input Current – Strobe (@14V): | 2 A peak |
| Output Power - Position / Nav - green: | 3.3 W |
| Output Power - Position / Nav - red: | 2.5 W |
| Output Power - Strobe: | 24 W peak |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M3 / DIN 7984, stainless steel recommended. Length depends upon placement location on wing tips. |
| Torque requirement for screw M3 / DIN 7984: | 0.5 Nm |
| Ambient Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Overheat Protection: | Yes |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | No |
| Under-Voltage Protection: | No |
| Over-Voltage Protection: | No |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof: | Yes |
