PosiStrobe DayLite
Rear Position / Strobe LED light
At only 30 millimeters in height (1.180 inch) the new PosiStrobe DayLite™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification

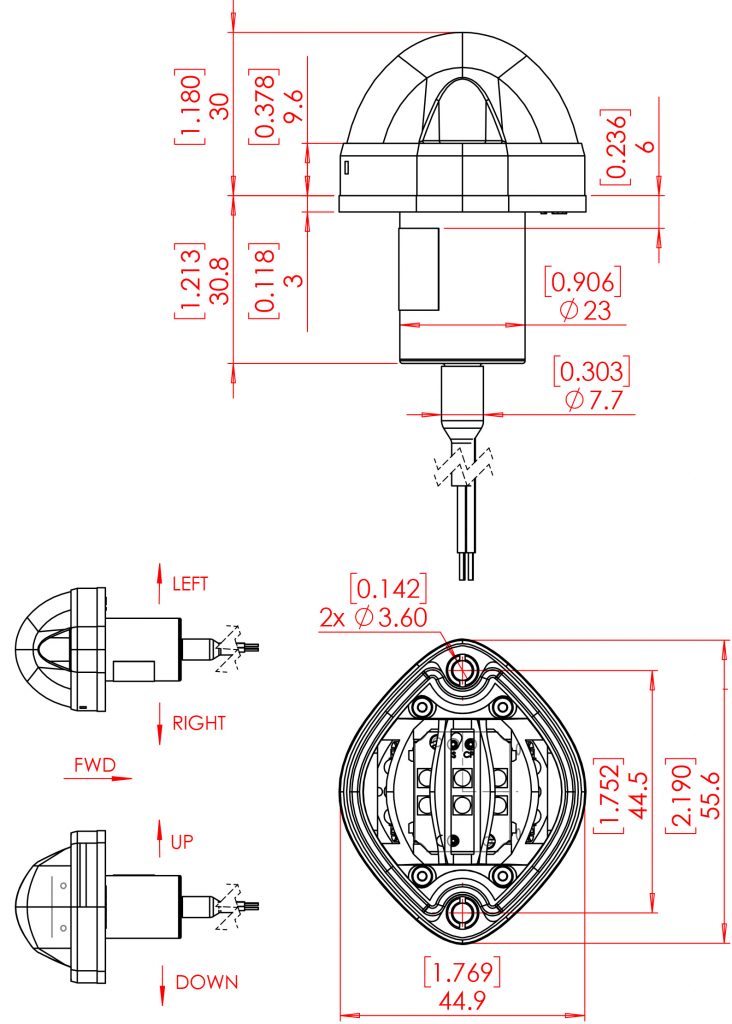

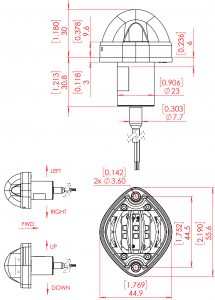

| Dimensions (mm): | 45.3 mm x 56 mm x 30 mm |
|---|---|
| Dimensions (inches): | 1.785“ x 2.206“ x 1.18“ |
| Weight (g): | 67 g |
| Weight (oz): | 2.363 oz |
| Operating Voltage Range: | 9 – 18 VDC |
| Input Current – Position: | 0.28 A @14V |
| Input Current – Strobe: | 3.5 A @14V (peak) |
| Average Current Consumption per Frame – Strobe: | 0.56 A |
| Average Current Consumption per Frame – Pos and Strobe: | 0.8 A |
| Input Power - Position: | 4 W @14V |
| Input Power - Strobe: | 49 W @14V (peak) |
| Repetition Rate of Strobe: | 48 cycles per minute |
| Fuse (Circuit Breaker) Recommendation: | 5A for position 5A for strobe |
| Recommended size of mounting screw: | M3, #6-32 |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 60V at 2sec max, both polarities |
| Under-Voltage Protection (lockout): | Yes (9V) |
| Over-Voltage Protection (lockout): | Yes (18V) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
