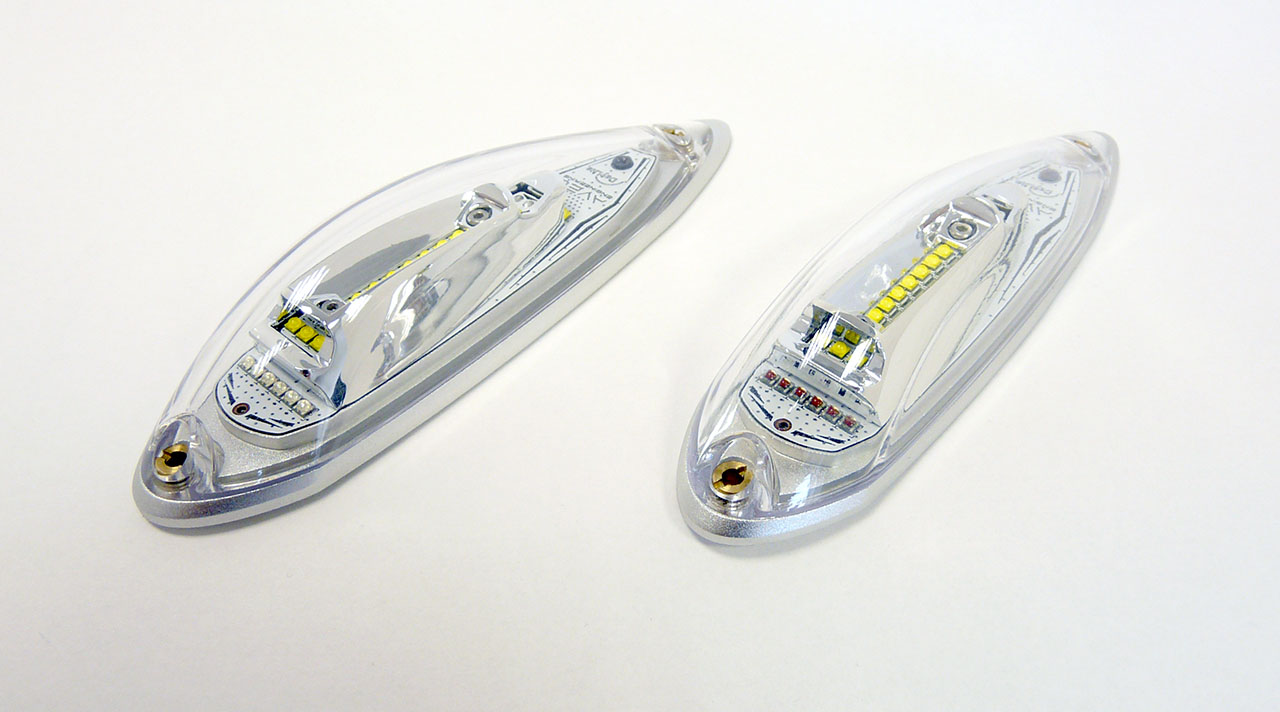

Andromeda DayLite 14V – Wingtip Navigation / Strobe / Position Light
Navigation / Position / Strobe LED light
At only 28 millimeters in height (1.102 inch) the new Andromeda™ DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and LED management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification
| Dimensions (mm): | 134.7 mm x 33.6 mm x 28 mm |
|---|---|
| Dimensions (inches): | 5.303” x 1.323” x 1.102” |
| Weight: | 82 g / 2.89 oz |
| Operating Voltage Range: | 9 – 18 V DC |
| Input Current – Position / Nav - green (@14V): | 0.35 A |
| Input Current – Position / Nav - red (@14V): | 0.33 A |
| Input Current – Strobe (@14V): | 1.65 A peak |
| Input Power - Position / Nav - green: | 4.9 W |
| Input Power - Position / Nav - red: | 4.62 W |
| Input Power - Strobe: | 23.1 W peak |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M3, stainless steel recommended. Length depends upon placement location on wing tips. |
| Ambient Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Overheat Protection: | Yes |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 50 V DC for 1s |
| Under-Voltage Protection: | Yes |
| Over-Voltage Protection: | Yes |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
