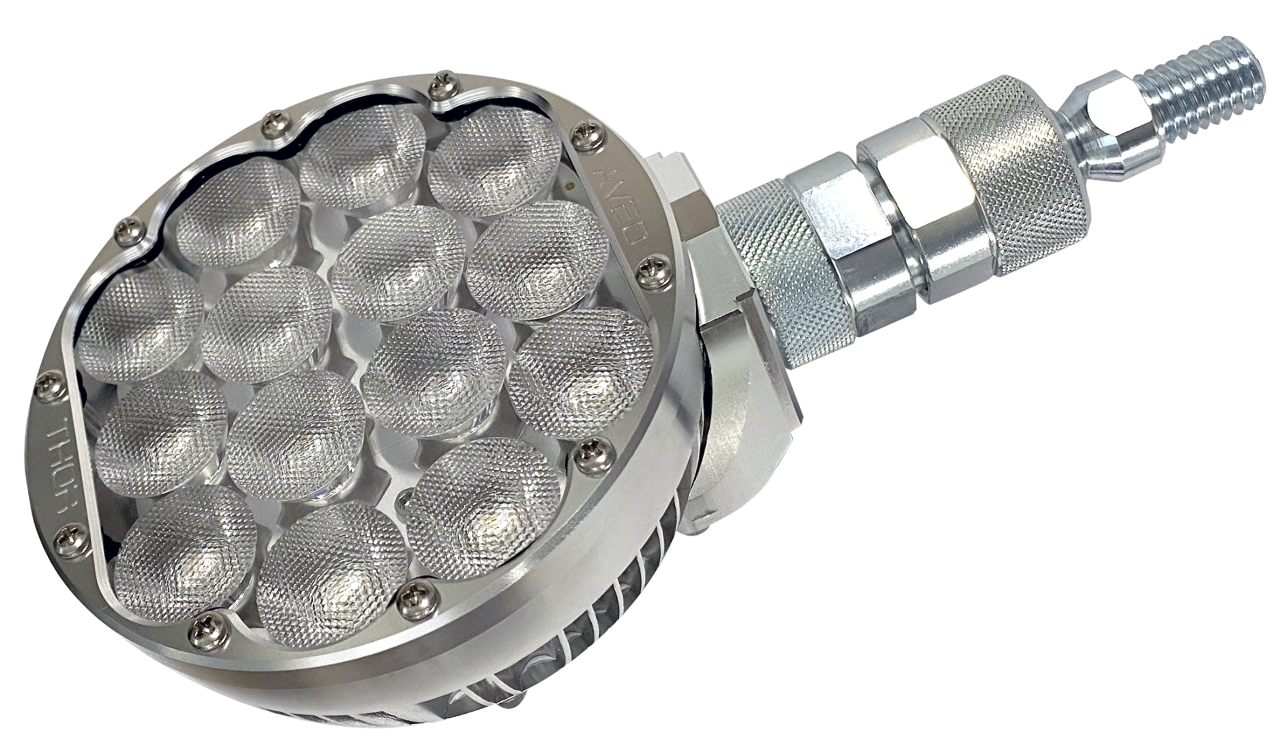

Thor LLP™
PAR 36 Landing or Taxi Light
PAR 36 Landing or Taxi Light
Finally you can remove that ridiculous white bowl housing that only shortens the life of lights with its oven type function. The Thor LLP has its own mounting stem to just simply bolt on in place of the old Grimes white “can”. Thor performance in an elegant and efficient form factor for a much longer lifetime of your investment.
Functions:
| LED quantity | 14 pcs |
| Input voltage | from +9 to +36 VDC |
| Input current | 4.7 A @ 14 VDC 2.25 A @ 28 VDC |
| Input power | 65.8 W @ 14 VDC 63 W @ 28 VDC |
| Output power | 55 W |
| Transcient voltage | 2 seconds +40V |
| Under-voltage lockout | +9 VDC, not more |
| Over-voltage lockout | +36 VDC, not less |
| Ambient temperature | from -55°C to +85°C (from -67°F to +185°F) |
| Lens (Beam pattern) | Landing light version: 7.5° viewing angle – symmetrical beam Taxi light version: 9° × 11° viewing angle – asymmetrical beam |
| Color and shade | Cool White, Color shade 1D0 |
| Overheat protection | temperature dependent decrement intensity |
| Weight | 521 g / 18.37 oz |
| Useful life | not less than 30,000 aircraft flight hours |
| Material | a. Housing/Heatsink: Aluminum Alloy, natural anodizing b. Lens: Clear PMMA |
