RedBaron XP Galactica™
Anti-collision / Beacon Light
Anti-collision / Beacon Light

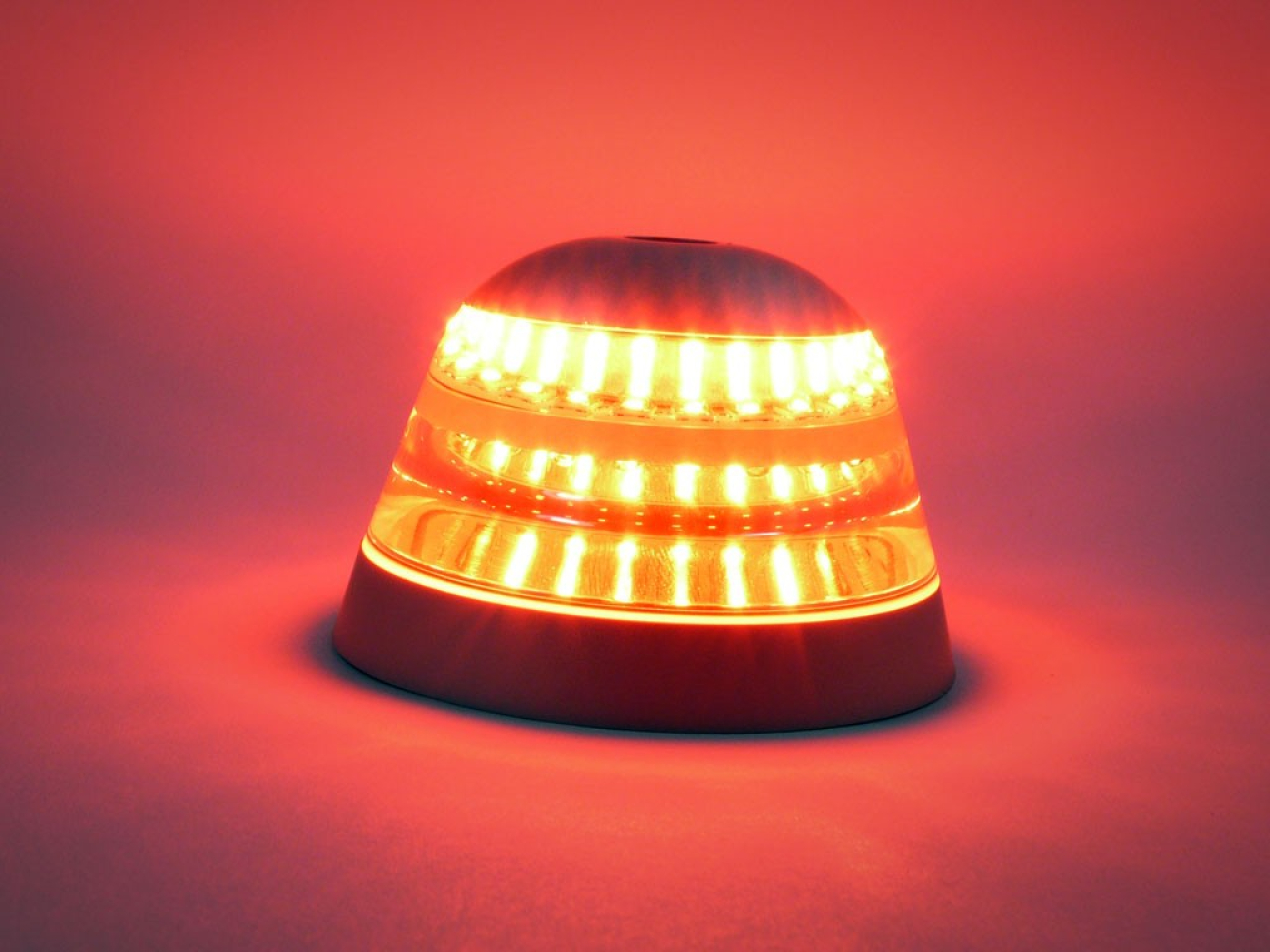

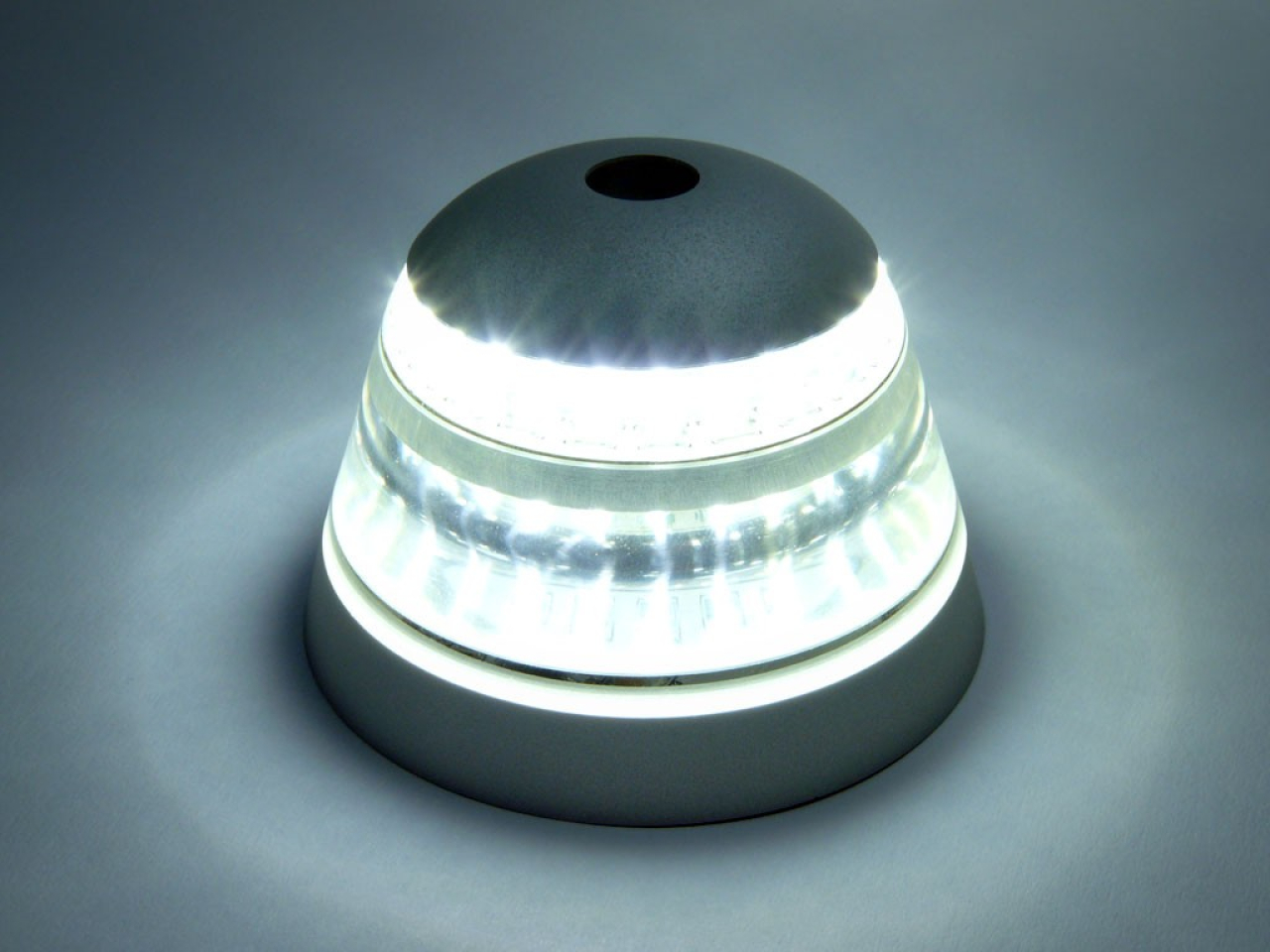

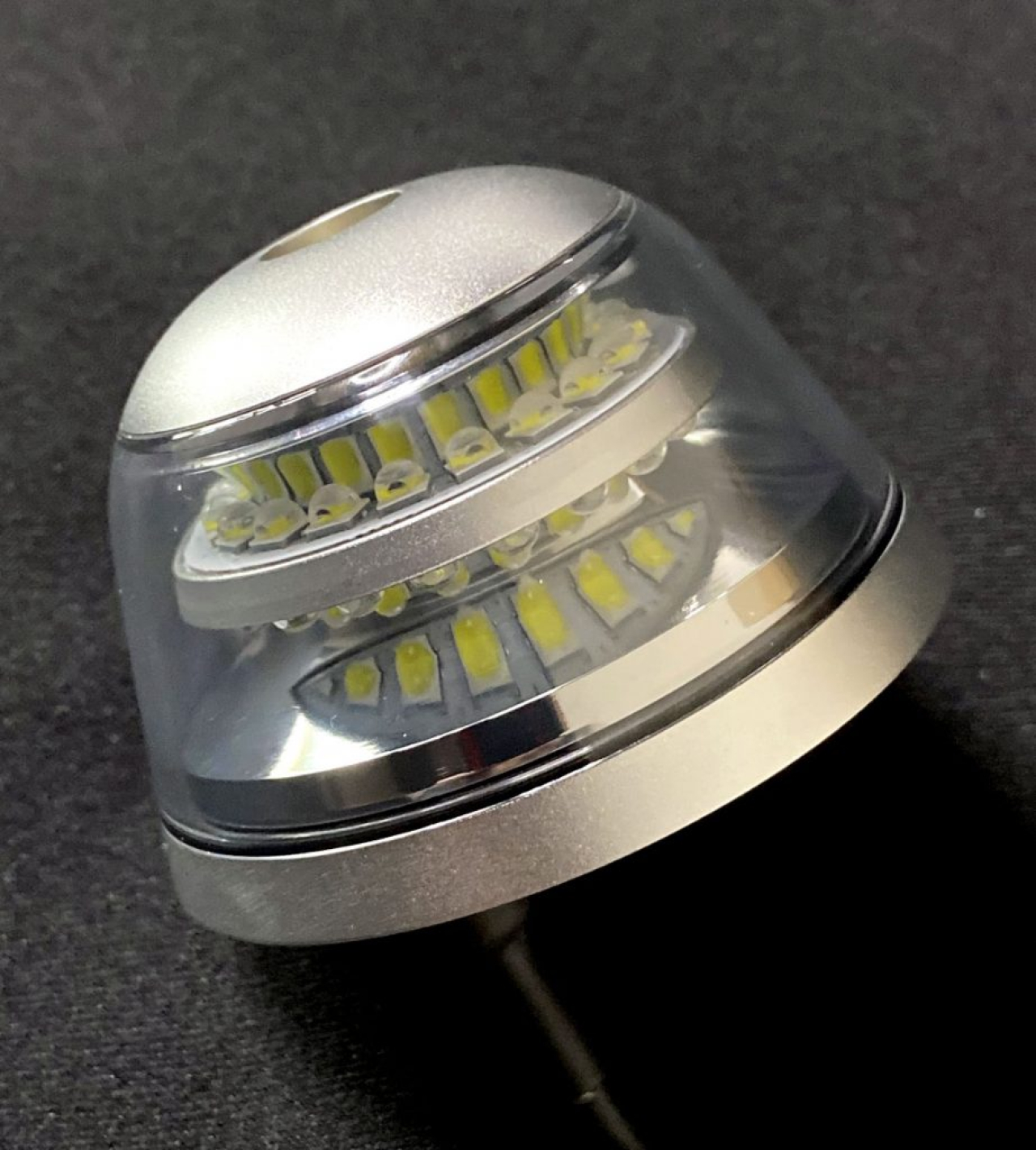

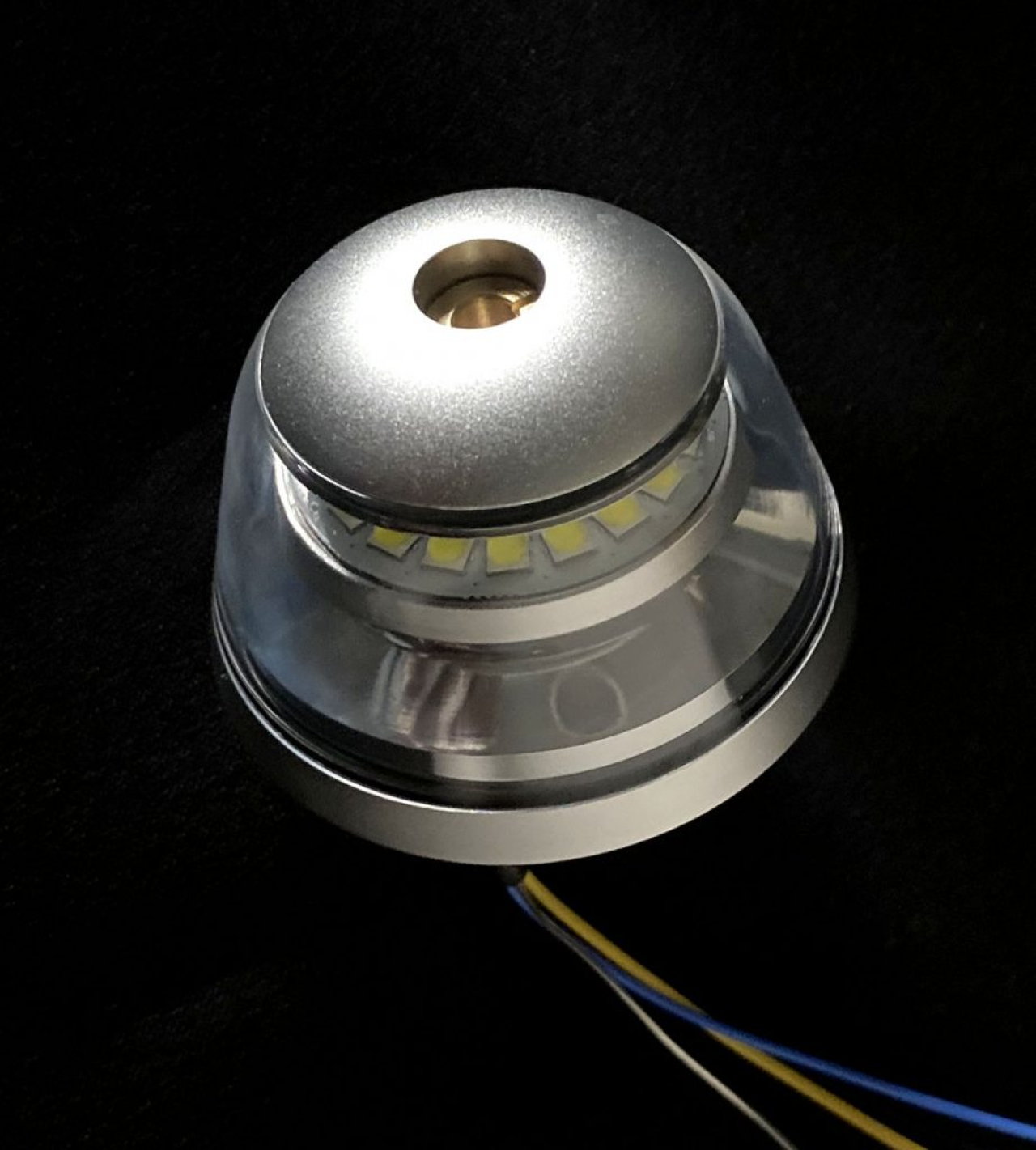

The RedBaron™ series of anti-collision lights were designed specifically for certified aircraft requirements and the need to be seen at the farthest distances and in poor visibility. They represent the cutting edge in optics design and the use of LED arrays that have been optimized for its exacting coverage patterns. This light features highly polished reflectors and is available in either red, white or custom order NVIS/IR.
TSO Certified
Functions:
| Dimensions (mm) | 64 mm x 64 mm x 39,8 mm |
| Dimensions (inches) | 2.52“ x 2.52“ x 1.565“ |
| Weight | 145 g / 0.32 lb |
| Operating Voltage Range | 9–36 VDC |
| Input Current – Red Strobe | 4.14 A @14V, 2.31 A @28V |
| Input Current – White Strobe | 4.22 A @14V, 2.8 A @28V |
| Input Power – Red Strobe | 57.96 W @14V, 64.68 W @28V |
| Input Power – White Strobe | 59.10 W @14V, 78.53 W @28V |
| Repetition Rate of Strobe | 50 cycles per minute |

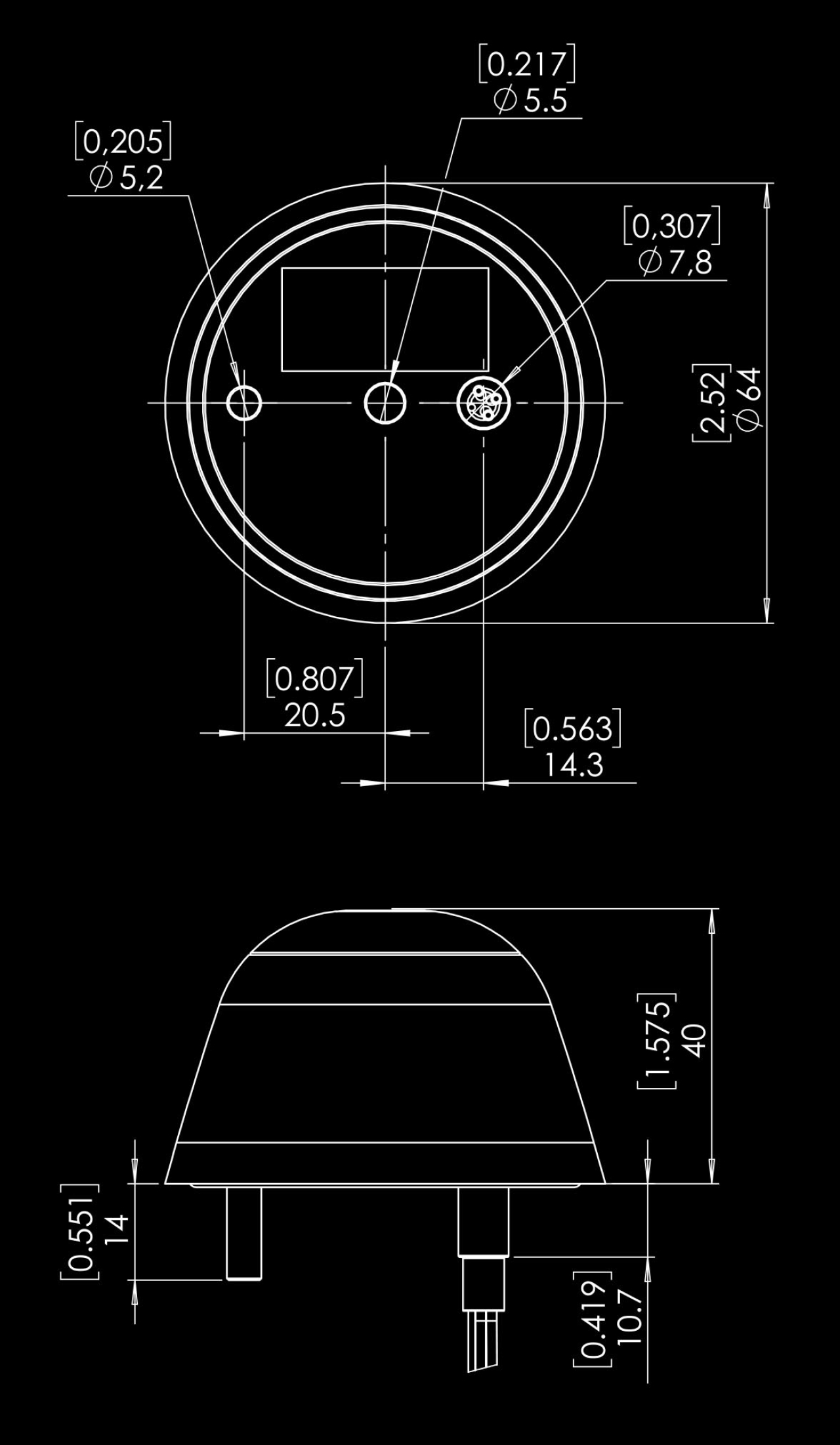

| Recommended size of mounting screw | See pictures in section Drawing |
| Ambient Temperature | -55°C to +85°C -55°F to +185°F |
| Overheat Protection | Yes (+85°C / +185°F) |
| Reverse Polarity Protection | Yes |
| Transient Voltage | 60 V, both polarities |
| Under-Voltage Protection (lockout) | Yes (9 V) |
| Over-Voltage Protection (lockout) | Yes (36 V) |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof | Yes |
