PosiStrobe DayLite™ 14VDC
Rear Position / Strobe LED light
Rear Position / Strobe LED light
Another breakthrough was achieved in affordability for a still high-performance position and strobe combination light that is widely popular worldwide in UAVs, general aviation and high performance military aircraft alike.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
Functions:

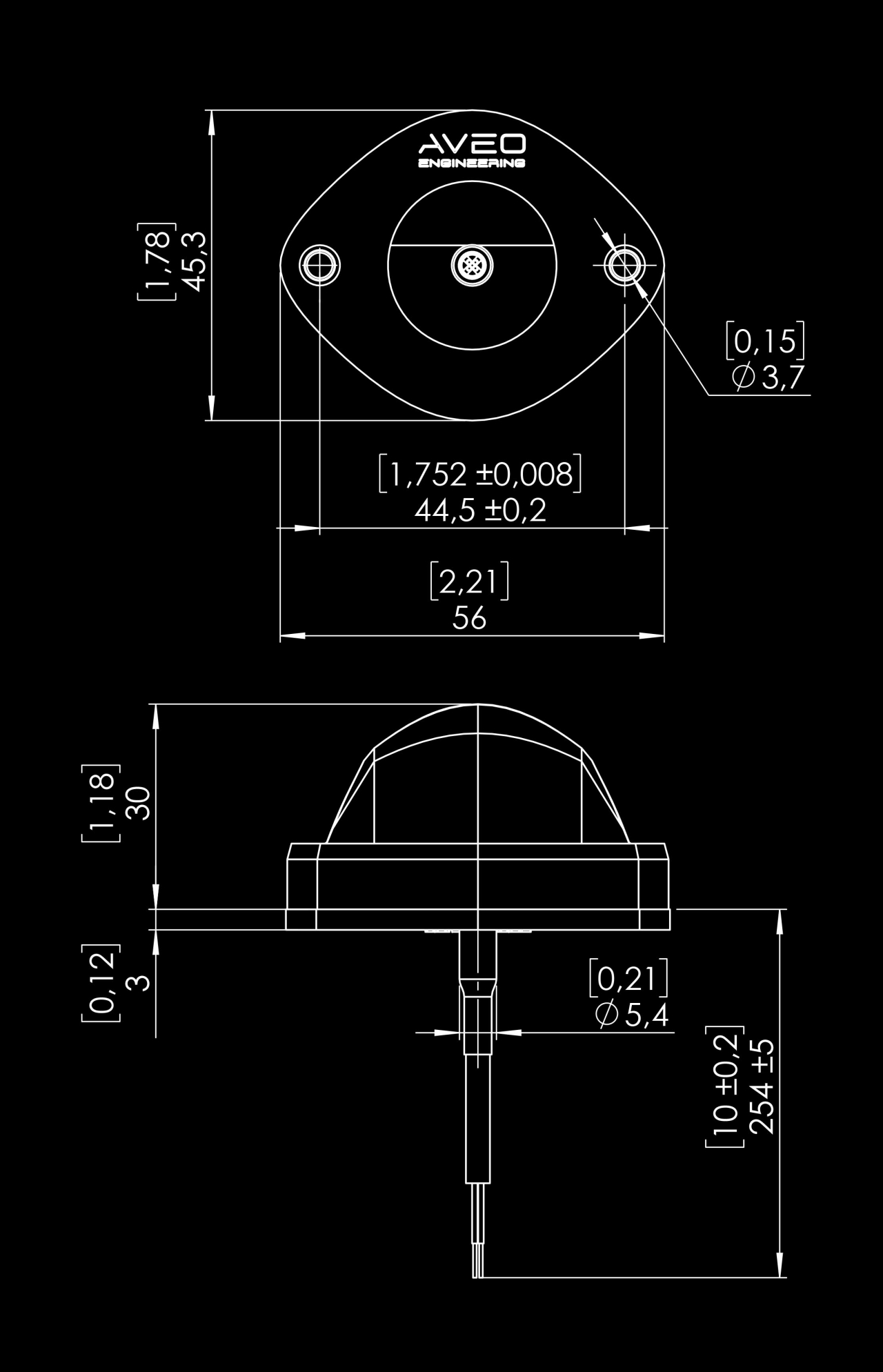

| Dimensions (mm) | 45.3 mm x 56 mm x 30 mm |
| Dimensions (inches) | 1.785“ x 2.206“ x 1.18“ |
| Weight (g) | 67 g |
| Weight (oz) | 2.363 oz |
| Operating Voltage Range | 9–18 VDC |
| Input Current – Position | 0.31 A @14V |
| Input Current – Strobe | 3.85 A @14V (peak) |
| Average Current Consumption per Frame – Strobe | 0.64 A |
| Average Current Consumption per Frame – Position and Strobe | 0.95 A |
| Input Power – Position | 4.3 W @14V |
| Input Power – Strobe | 54 W @14V (peak) |
| Repetition Rate of Strobe | 48 cycles per minute |
| Fuse (Circuit Breaker) Recommendation | 5 A for position 5 A for strobe |
| Recommended size of mounting screw | M3, #6-32 |
| Ambient Temperature | -55°C to +85°C -55°F to +185°F |
| Overheat Protection | Yes (+85°C / +185°F) |
| Reverse Polarity Protection | Yes |
| Transient Voltage | 60 V at 2 s max, both polarities |
| Under-Voltage Protection (lockout) | Yes (9 V) |
| Over-Voltage Protection (lockout) | Yes (18 V) |
| Waterproof, Dust-proof, Vibration-proof | Yes |
