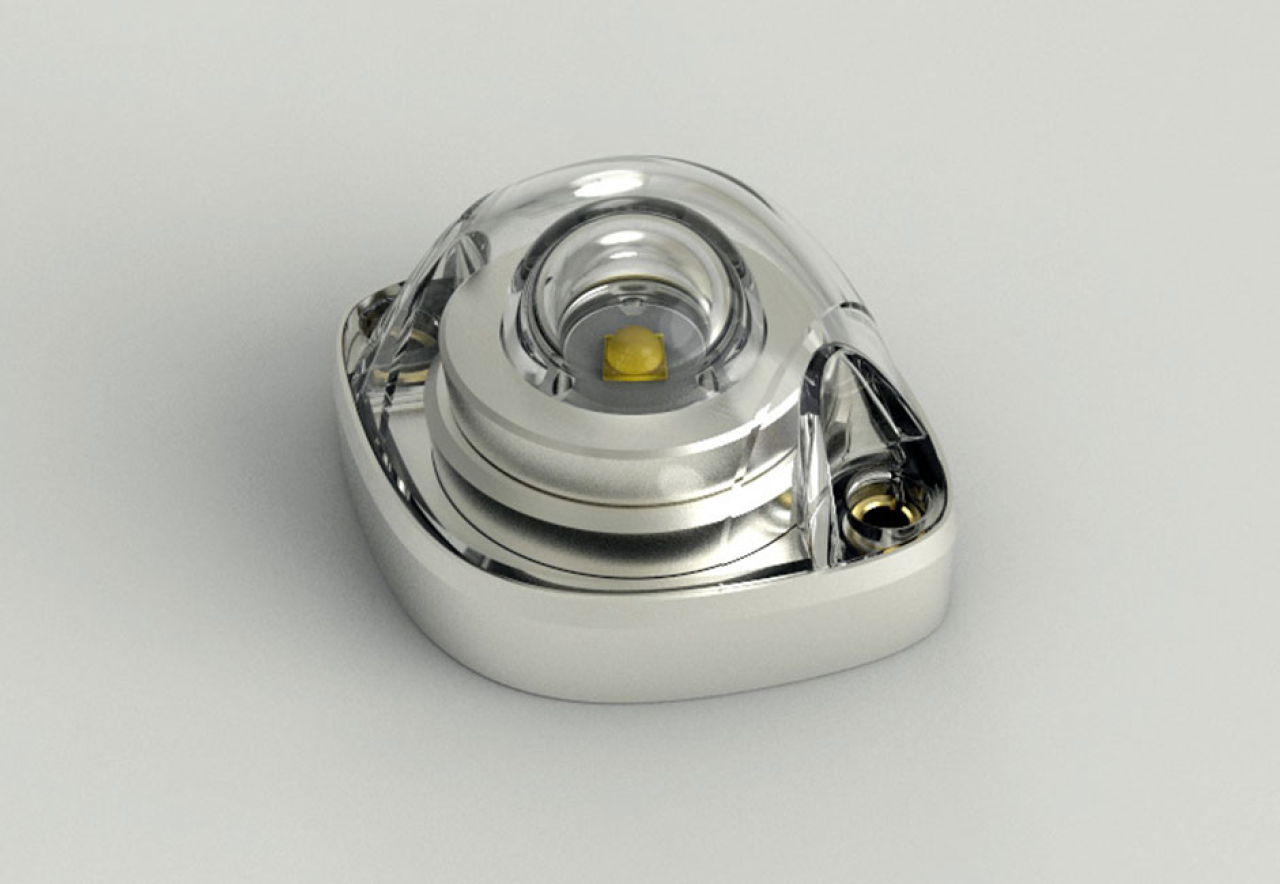

MiniMax Ariel™
2-in-1 Anti-collision / Steady LED Light
2-in-1 Anti-collision / Steady LED Light
Developed originally at the request of the world’s leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax Ariel™ is a compact powerhouse of hemispheric light. It is also a great anti-collision light to use on upper and lower fuselage in combination with Aveo DayLite™ wing lights due to its incredibly small footprint.
MiniMax Ariel™ is available in white, amber, red or infrared LED color.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
Functions:

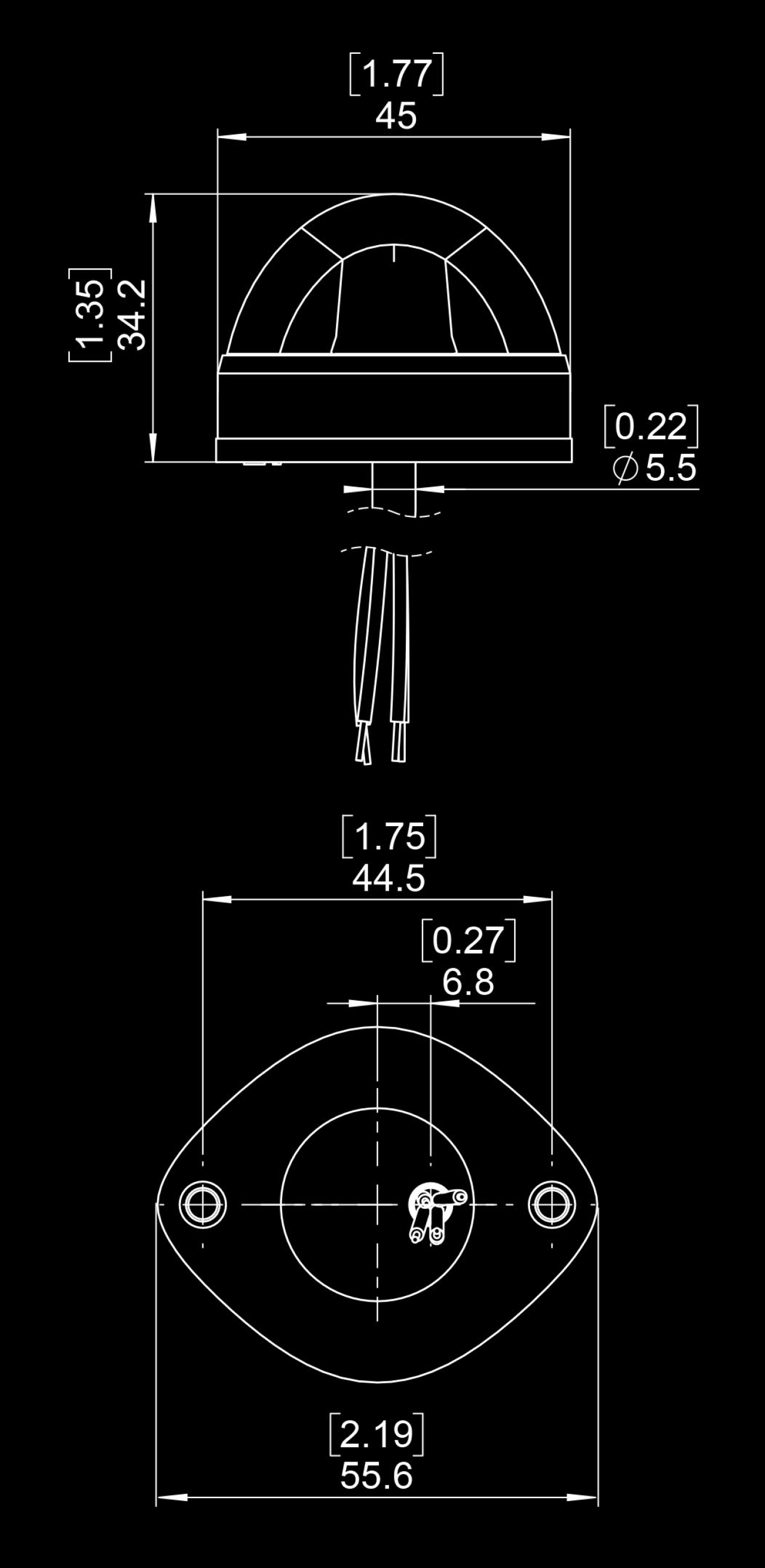

| Dimensions | See drawing on the right |
| Weight | 53 g / 1.87 oz |
| Operating Voltage Range | 9–36 V DC |
| Input Current – Strobe | 2.0 A (@12V) |
| Input Current – Steady | 0.22 A (@12V) |
| Output Power – Strobe | 24 W |
| Output Power – Steady | 2.6 W |
| Flash Rate | 100/50 + 50/50 + 50/950 (ms) |
| Ambient Temperature | -40°C to +75°C -40°F to +167°F |
| Overheat Protection | Yes (+85°C / +185°F) |
| Transient Voltage | 60 V |
| Under-voltage Lockout | 9 V, not more |
| Over-voltage Lockout | 36 V, not less |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof | Yes |
| Wiring | Teflon insulation, 500 V Wire length from base of unit: 254 mm (10") min. Red: VCCP - AWG 20, Positive power supply line for position Yellow: VCCS - AWG 20, Positive power supply line for strobe Black: GND - AWG 20, Common negative power supply line Blue: SYNC - AWG 20, Synchronization line |
| Note | Performance at 25°C and 88% DC-DC efficiency |
