MicroMax DV™
Anti-collision LED Light for Drones
Anti-collision LED Light for Drones

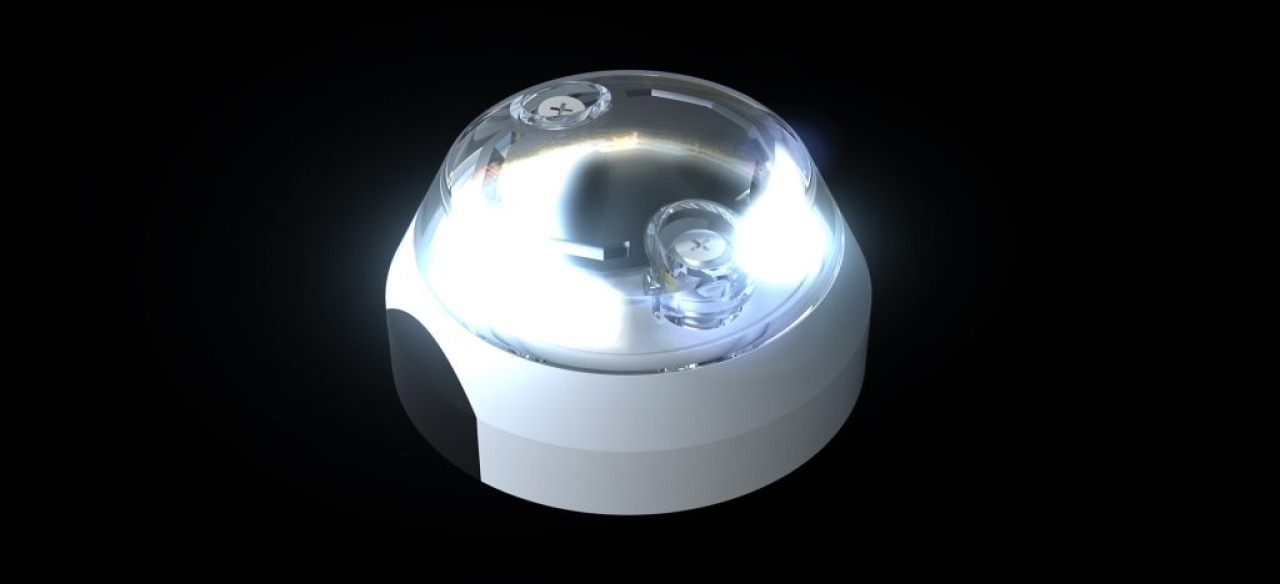

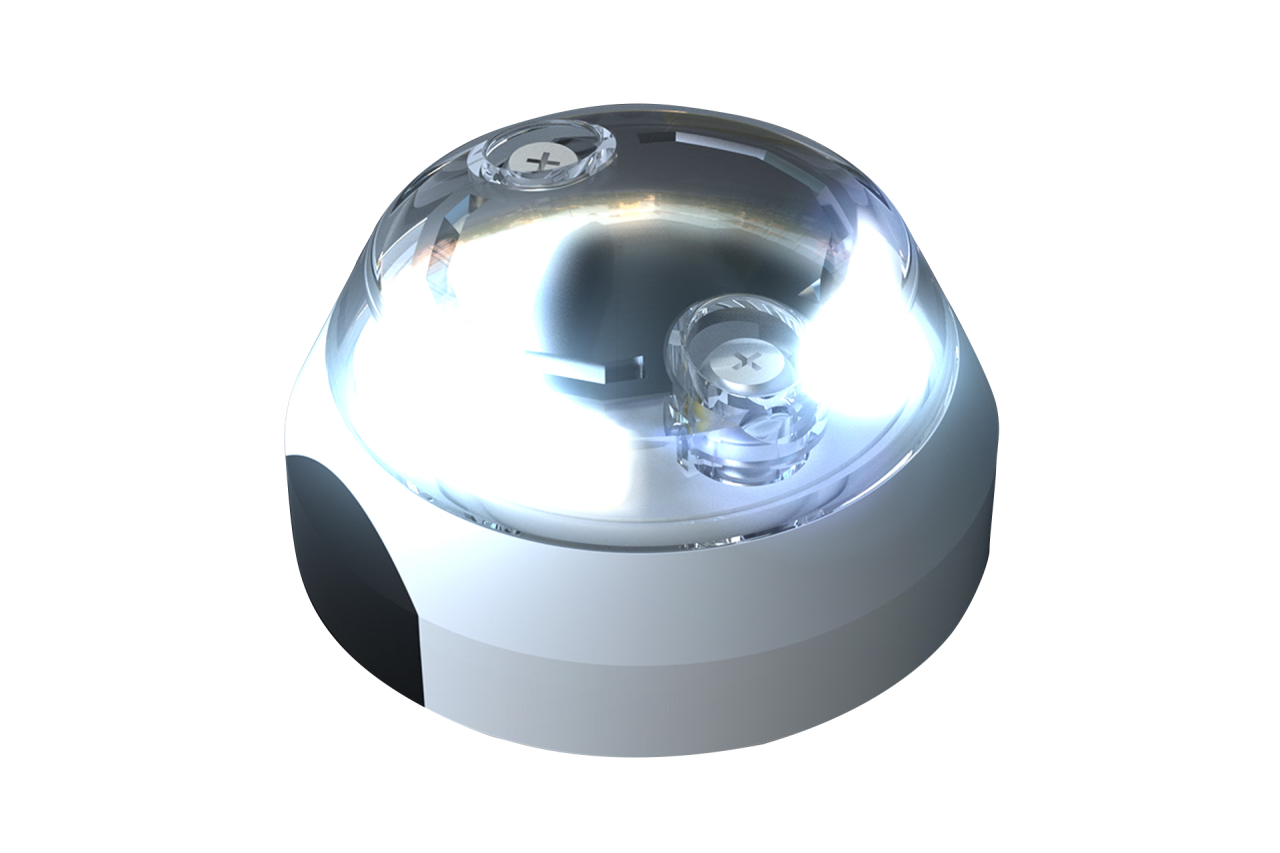

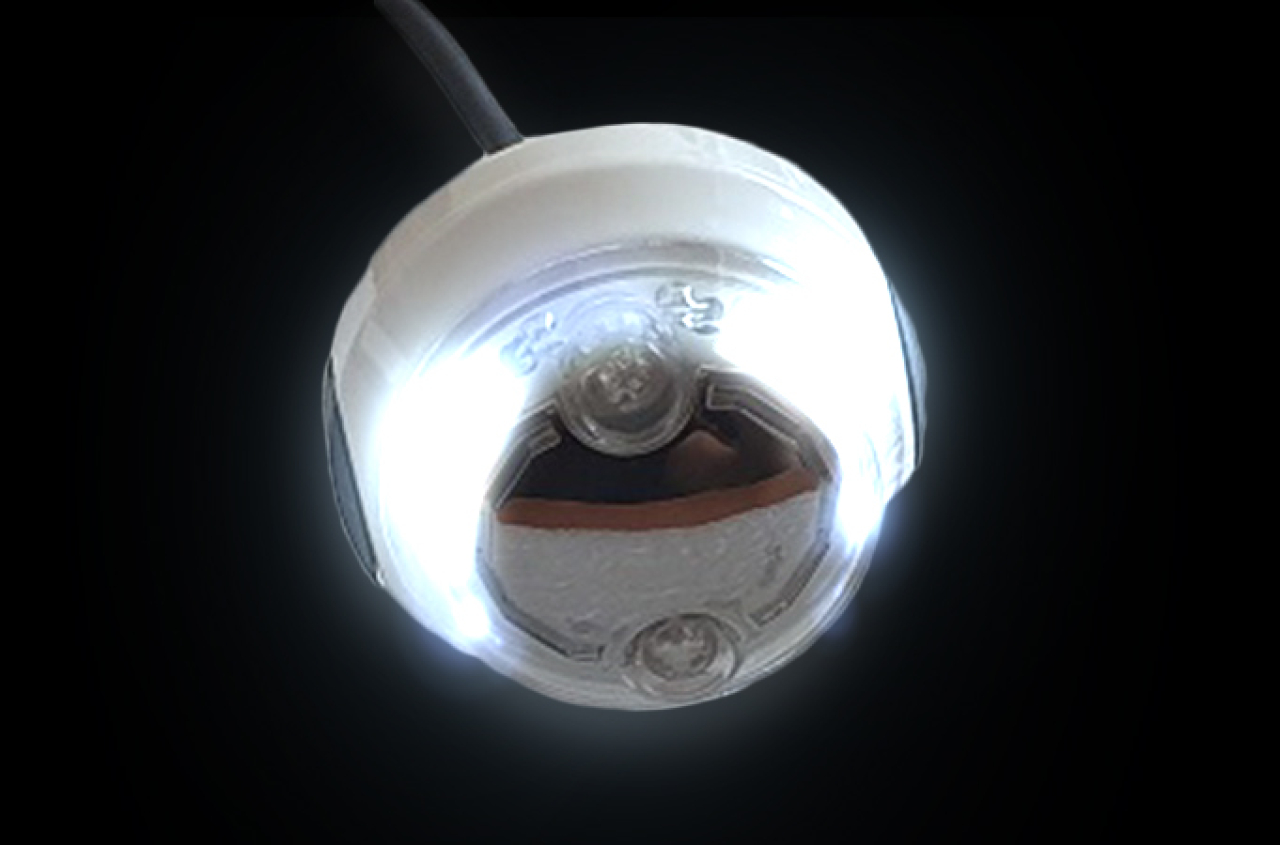

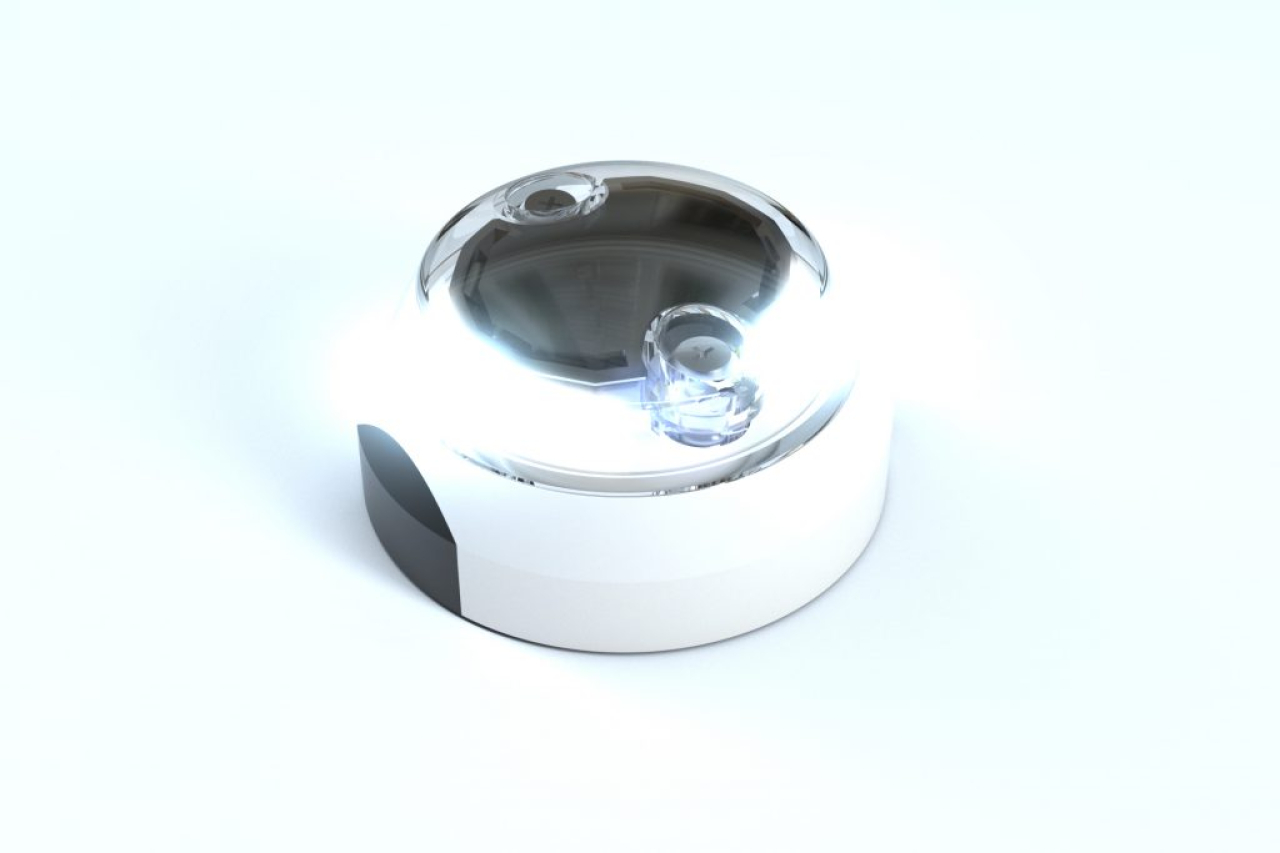

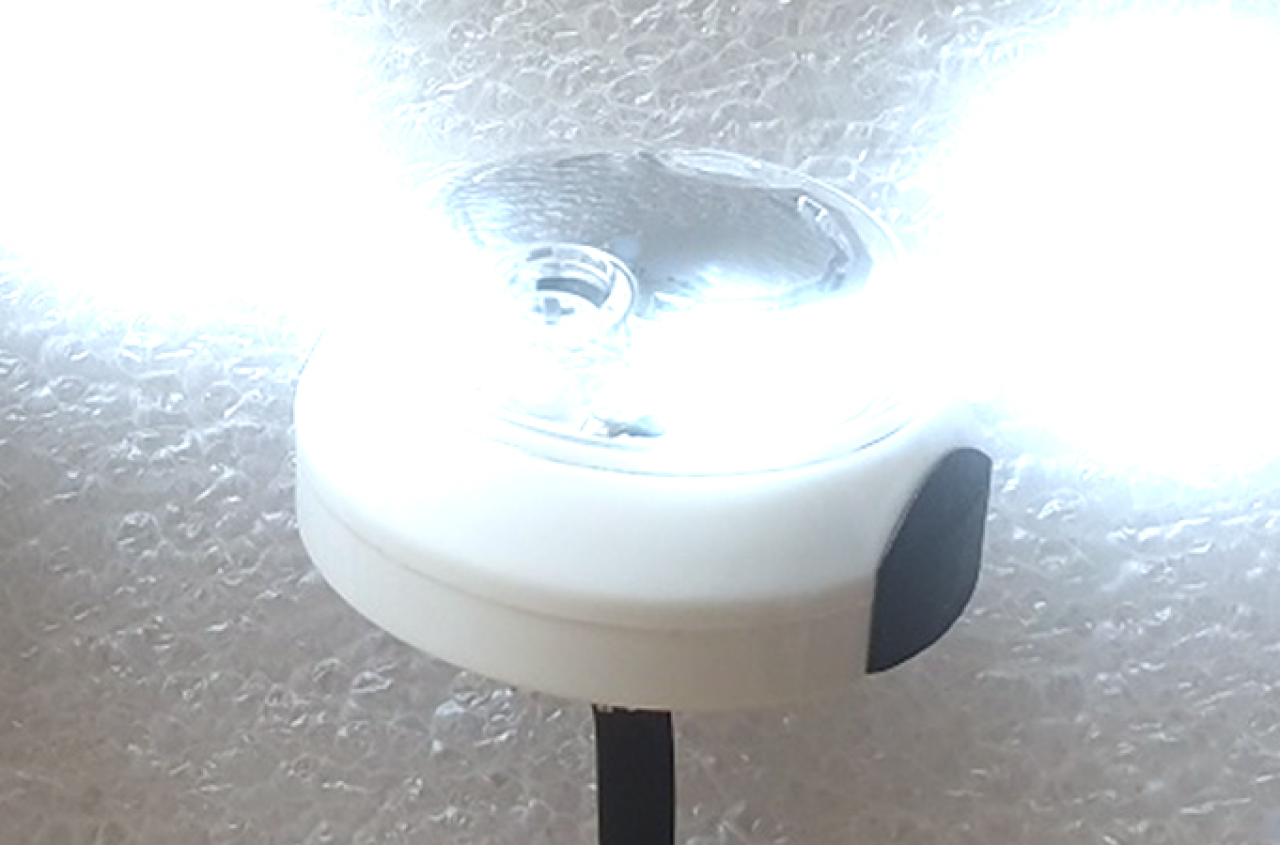

Developed for drones and military UAVs, the MicroMax comes in a wide variety of colors including NVIS IR. Extremely light and extremely bright, you will not find it anywhere else but Aveo.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
Functions:

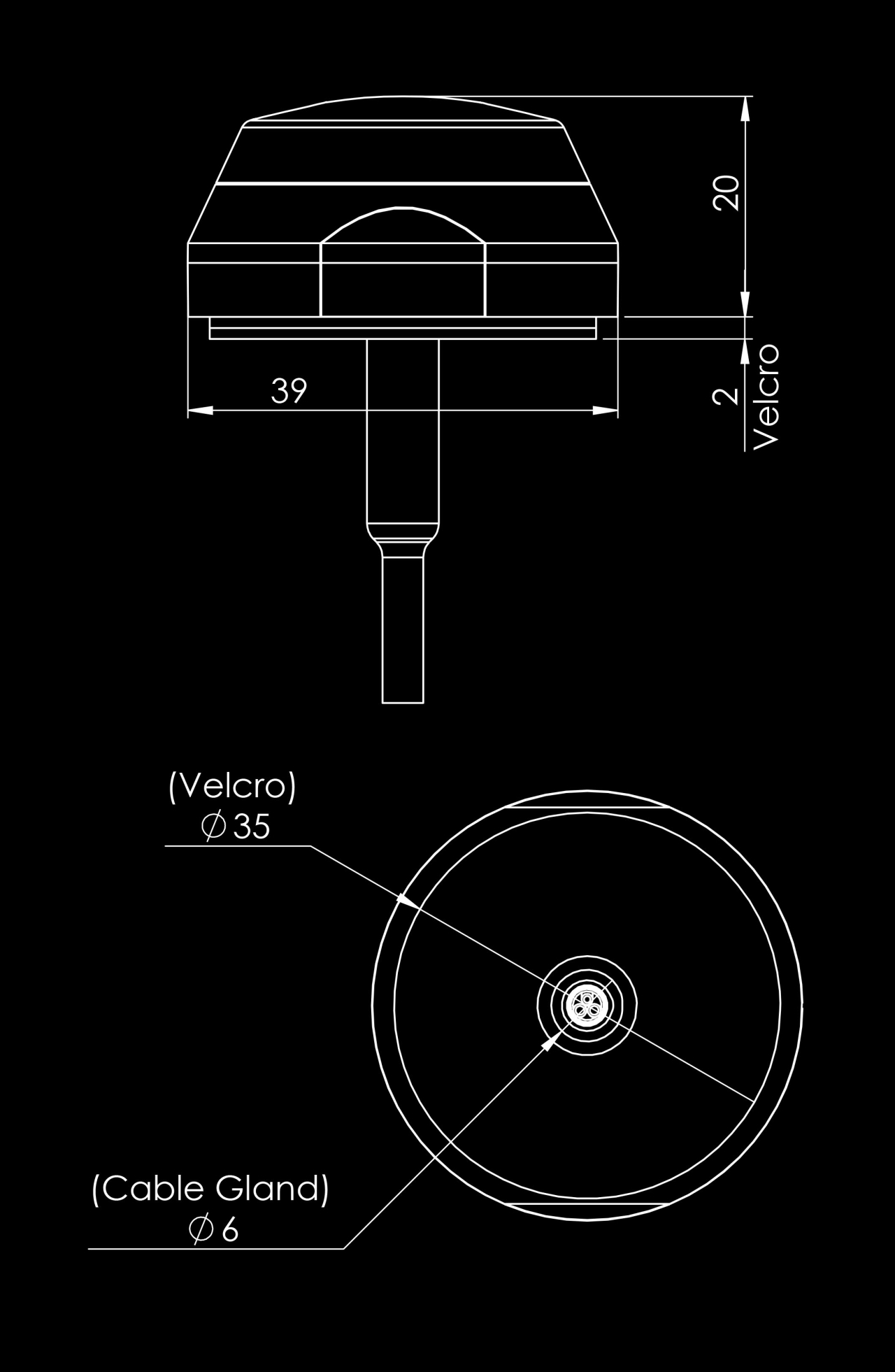

| Dimensions (mm) | 39 mm x 39 mm x 20 mm |
| Dimensions (inches) | 1.54“ x 1.54“ x 0.79“ |
| Weight | 17 g / 0.6 oz |
| Operating Voltage Range | 5–9 VDC |
| Input Power (peak) | 3.75 W @5V |
| Input Current (peak) | 0.75 A @5V |
| Repetition Rate of Strobe | 50 cycles per minute |
| Ambient Temperature | -40°C to +85°C -40°F to +185°F |
| Overheat Protection | Yes |
| Reverse Polarity Protection | Yes |
| Transient Voltage | 24 V |
| Waterproof, Dust-proof, Vibration-proof | Yes |
