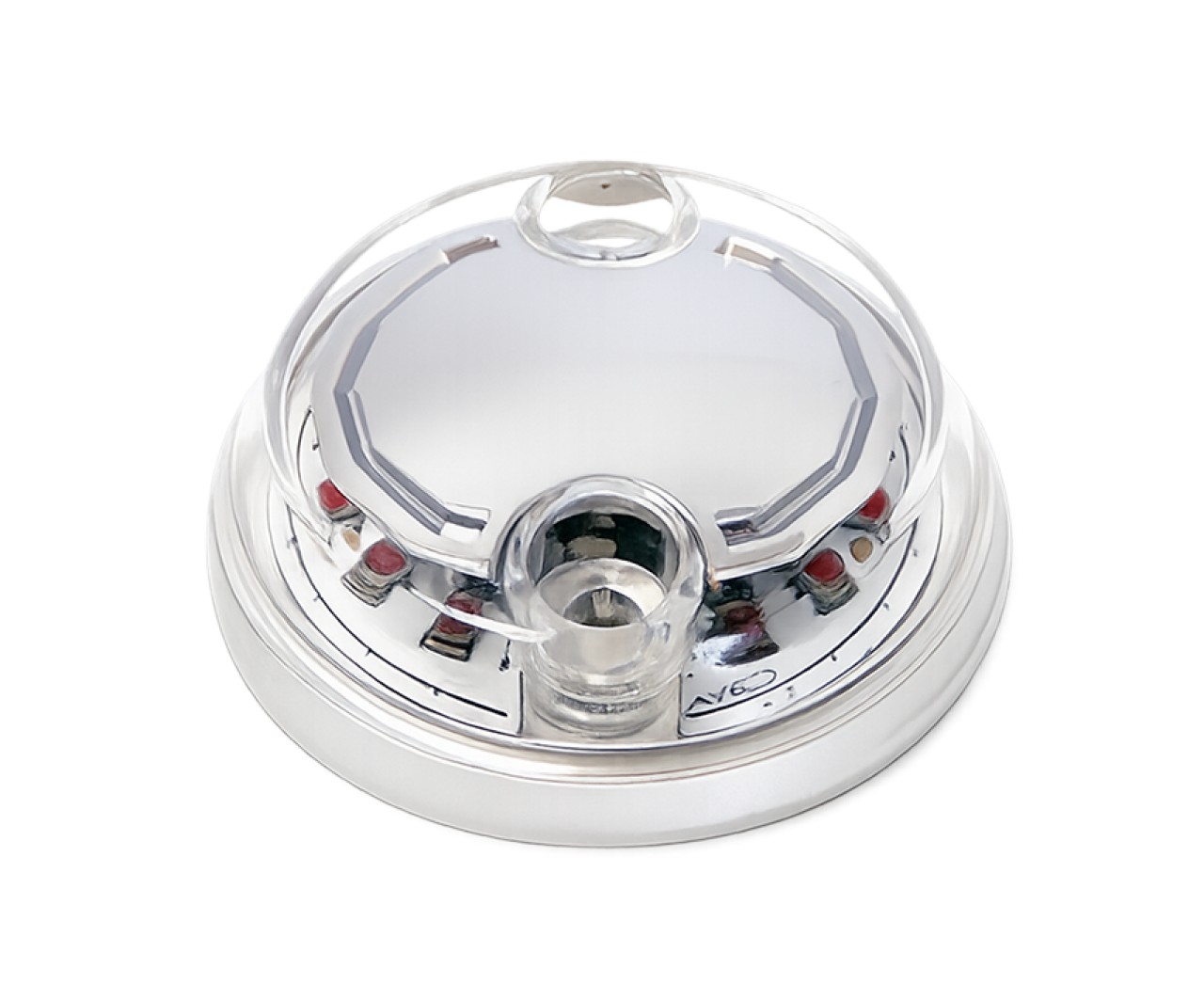

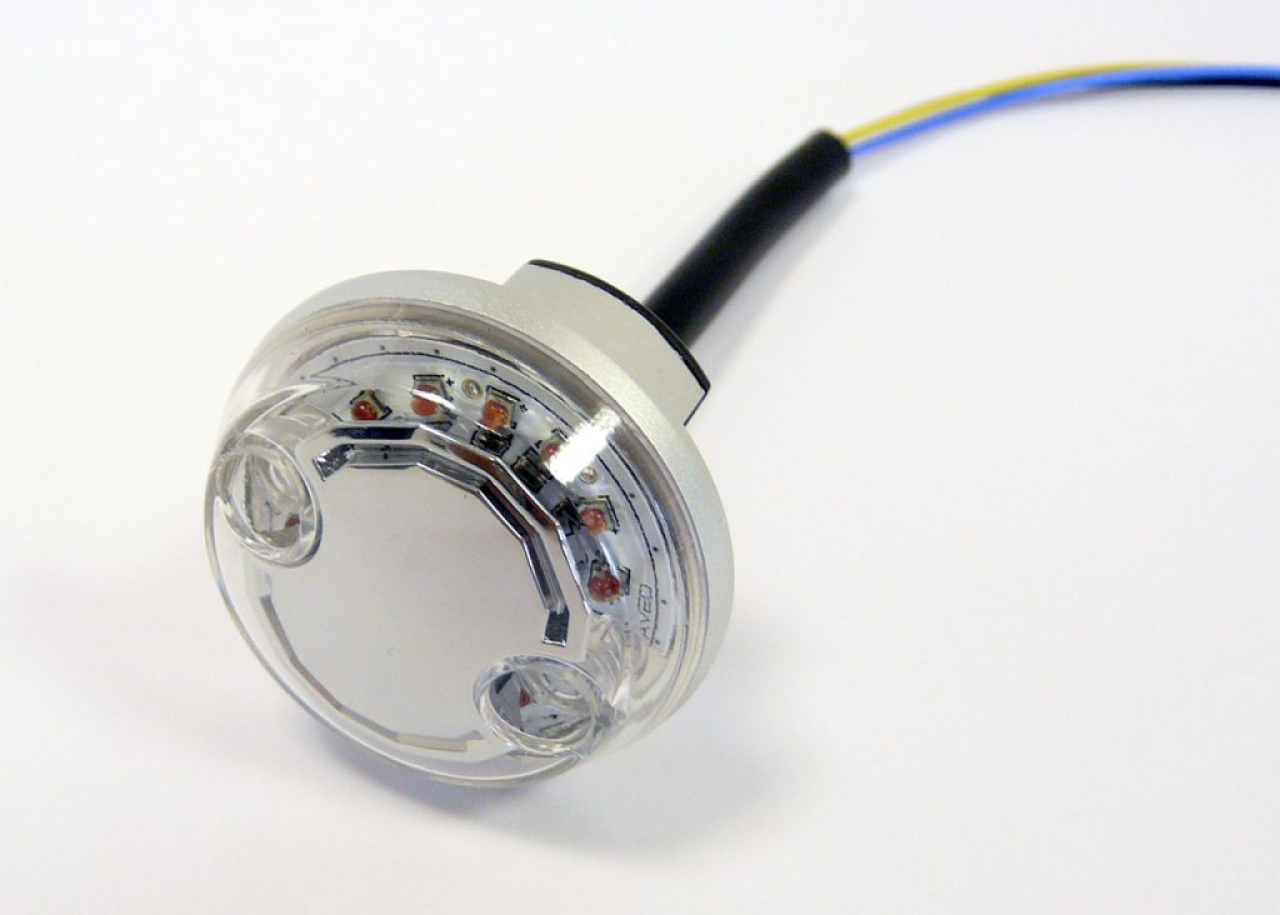

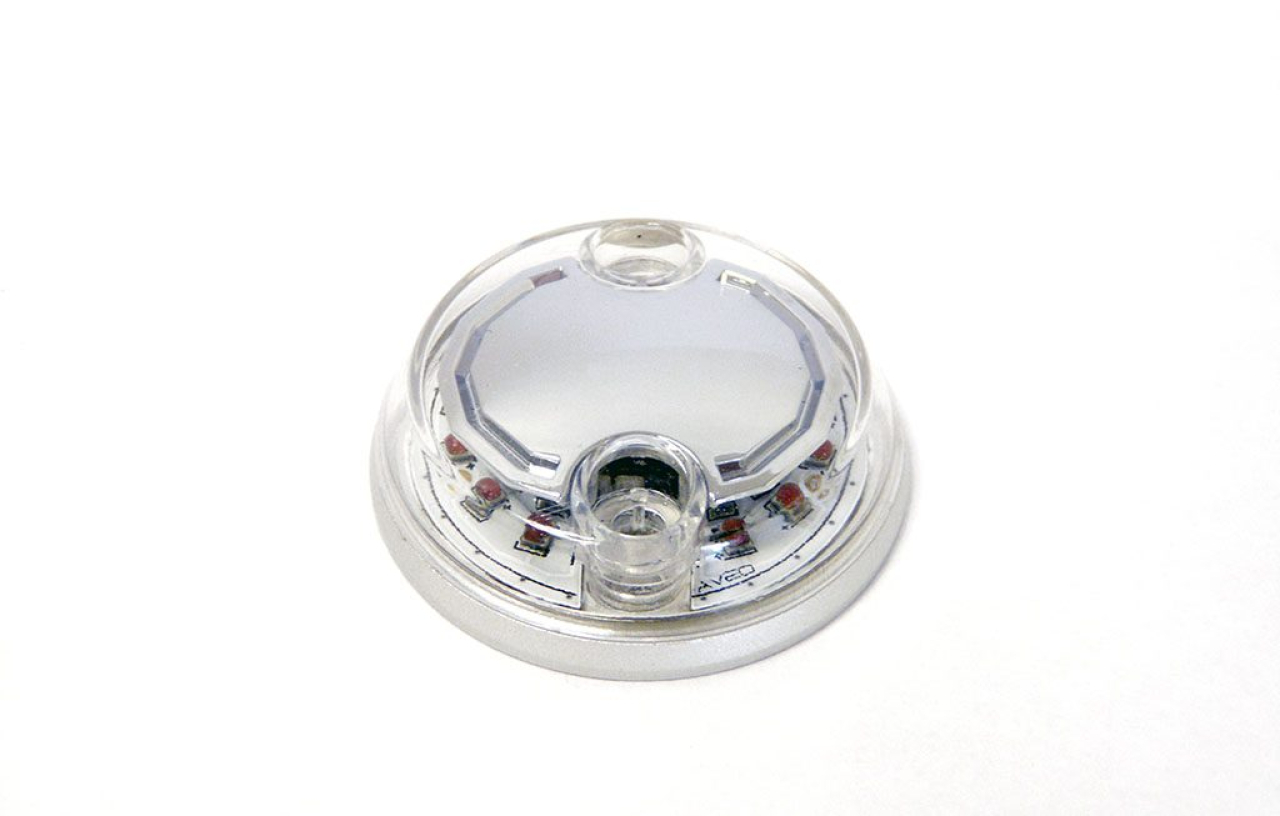

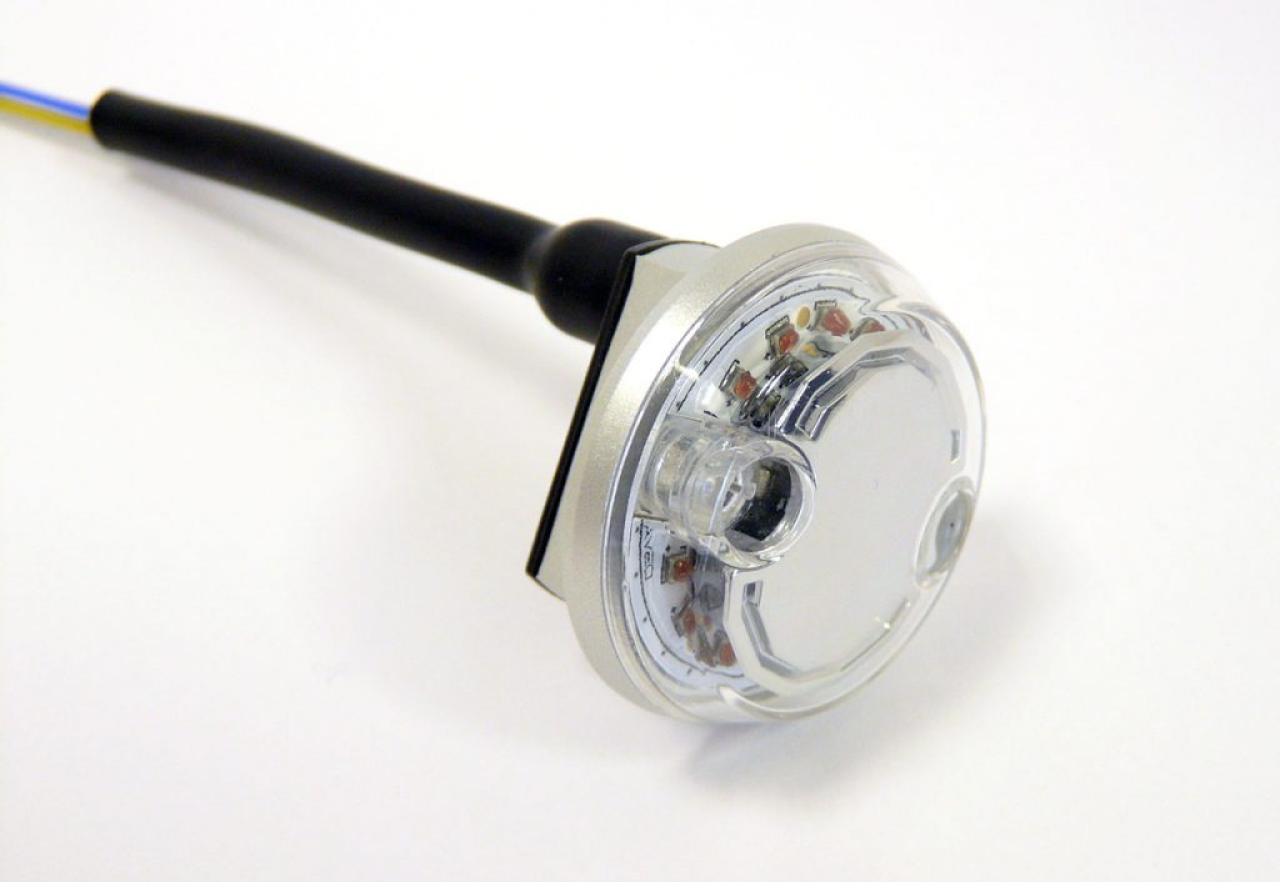

MicroMax™

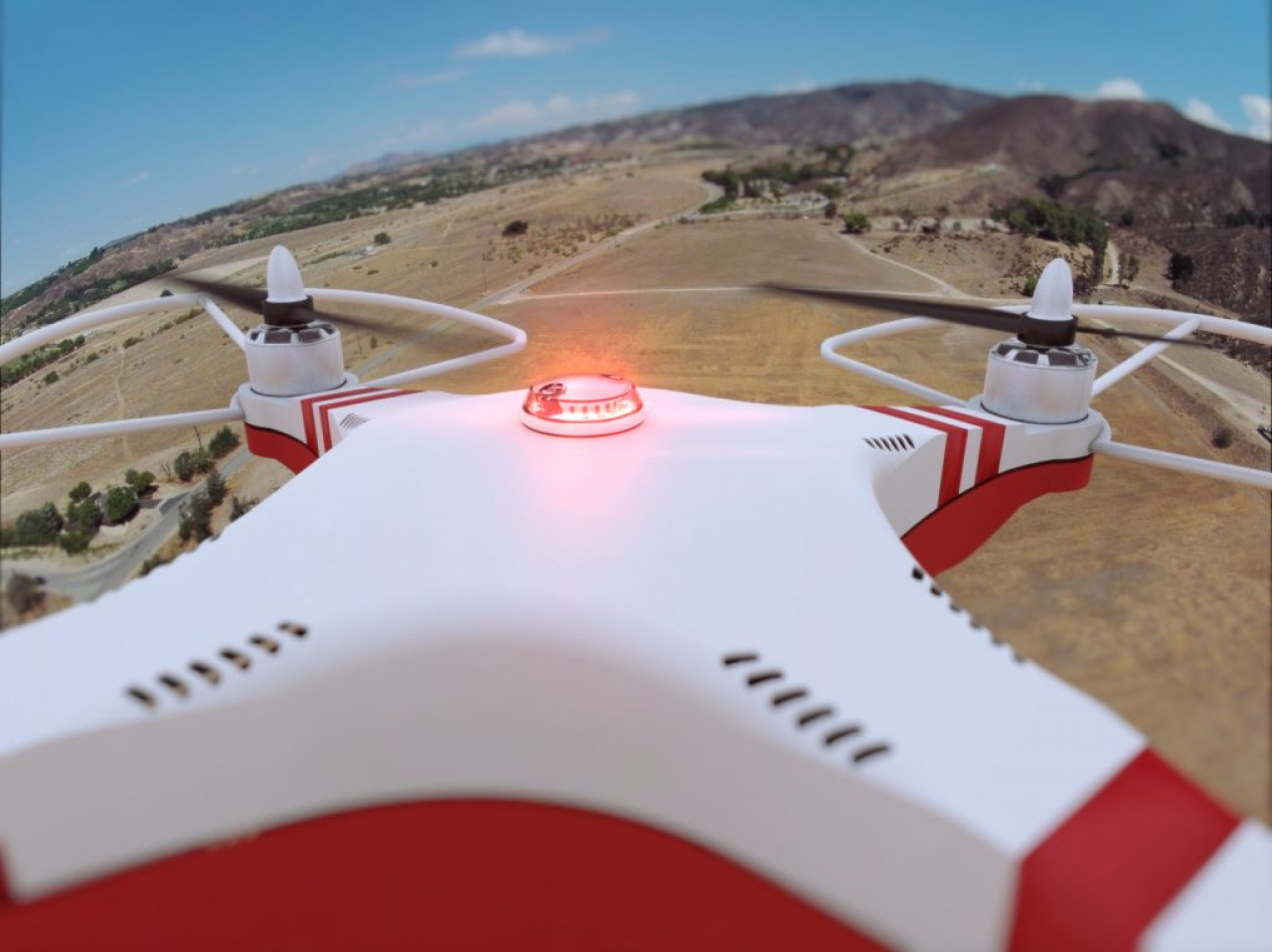

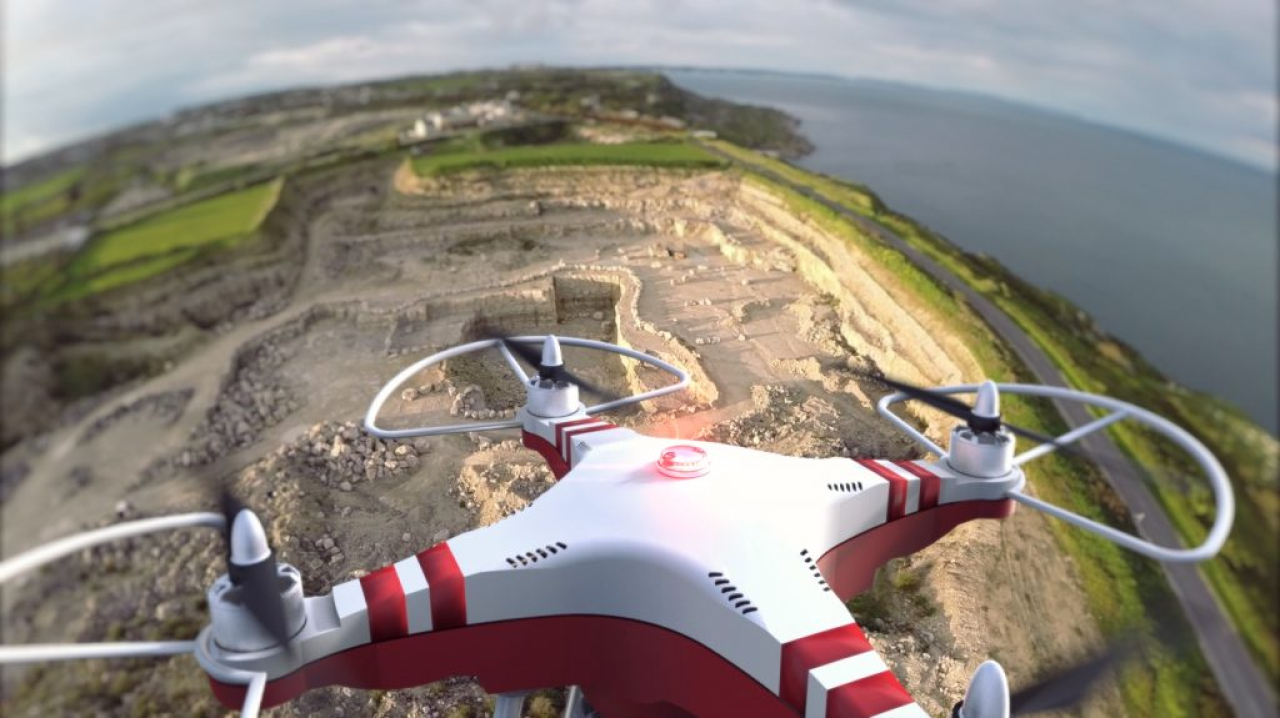

Anti-collision Light for Drones and UAV
Anti-collision Light for Drones and UAV

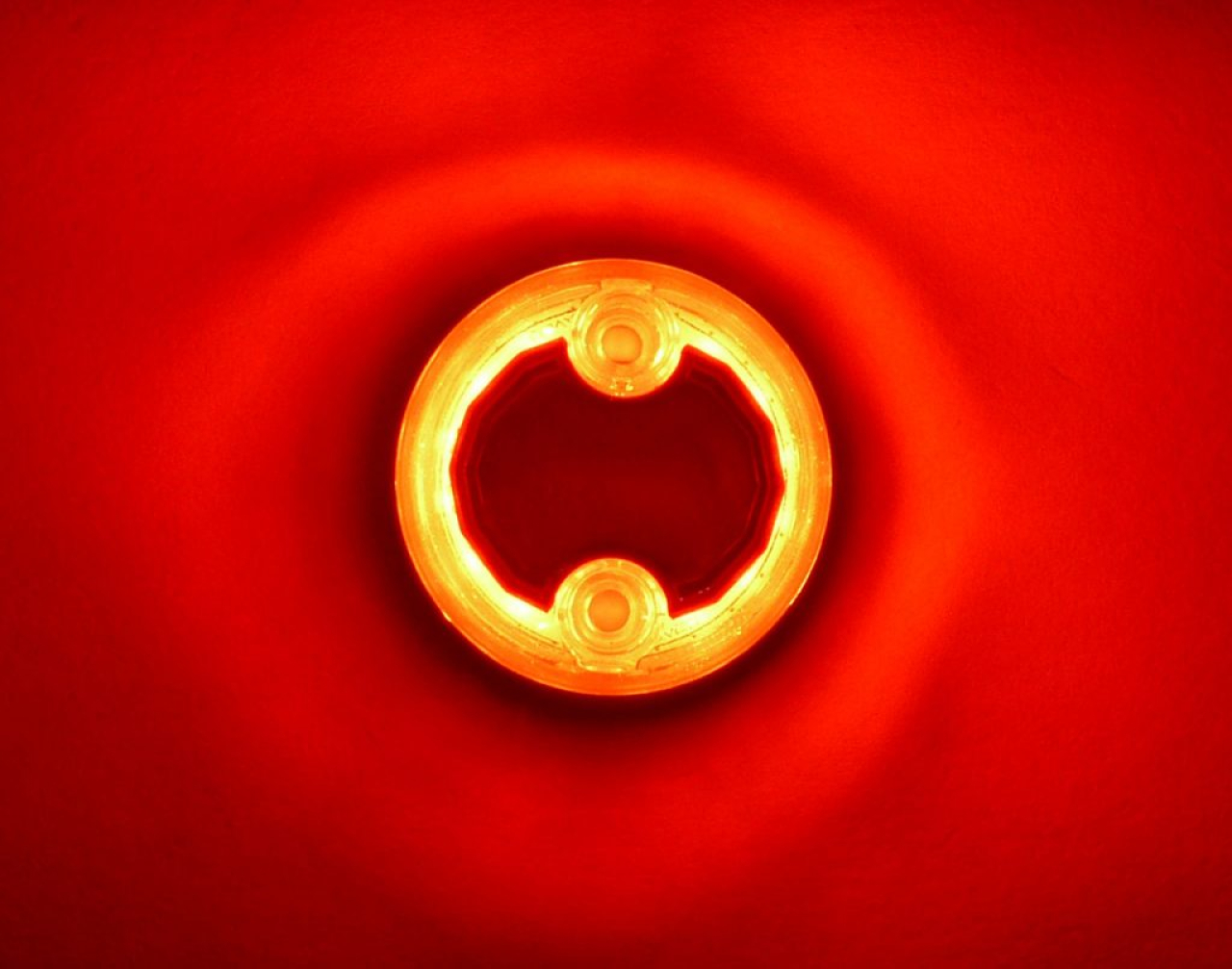

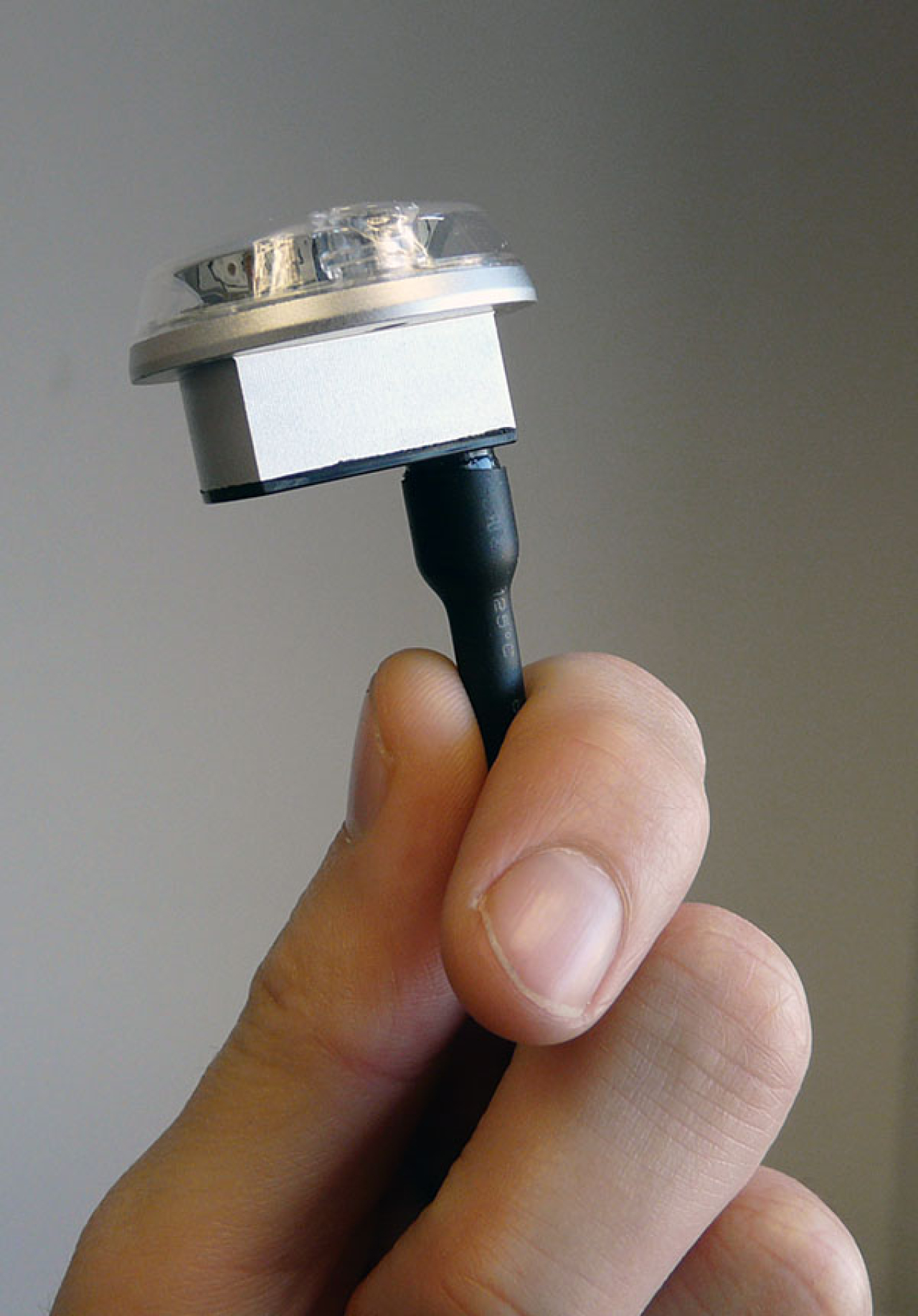

Fully D0-160 tested and weighing less than 30 grams, MicroMax™ will help you comply with all the tightening and future regulations around operating small UAVs/MiniDrones and ensure SAFETY is included in your flight operations. Available in Red, White, Green or Amber, the patented MicroMax™ provides a 360 degree arc of coverage. An amazing product from Aveo’s famous engineering prowess, which has made it the world market leader in UAV lighting by a wide margin.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
Functions:

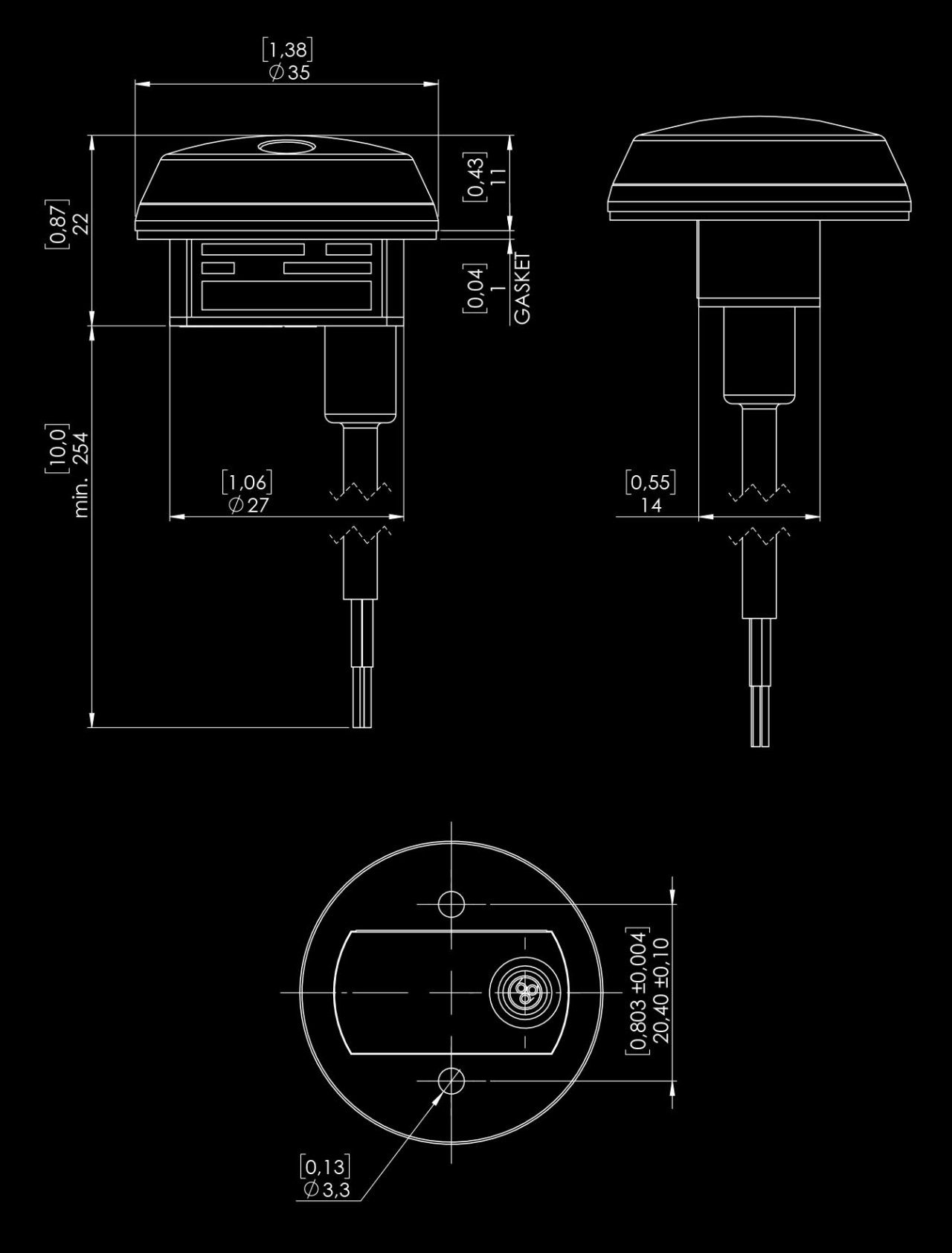

| Dimensions – above surface (mm) | 35 mm x 11 mm |
| Dimensions – above surface (inches) | 1.378“ x 0.433“ |
| Weight | Less 30 g / 1.05 oz |
| Operating Voltage Range | 9–32 V DC |
| Input Power – Red | 5.4 W (peak) |
| Input Power – White | 7.8 W (peak) |
| Input Power – Green | 7.8 W (peak) |
| Input Power – Amber | 7.8 W (peak) |
| Input Current – Red | 0.39 A @14V (peak) 0.19 A @28V (peak) |
| Input Current – White | 0.56 A @14V (peak) 0.28 A @28V (peak) |
| Input Current – Green | 0.56 A @14V (peak) 0.28 A @28V (peak) |
| Input Current – Amber | 0.56 A @14V (peak) 0.28 A @28V (peak) |
| Repetition Rate of Strobe | 50 cycles per minute |
| Ambient Temperature | -40°C to +85°C -40°F to +185°F |
| Overheat Protection | Yes |

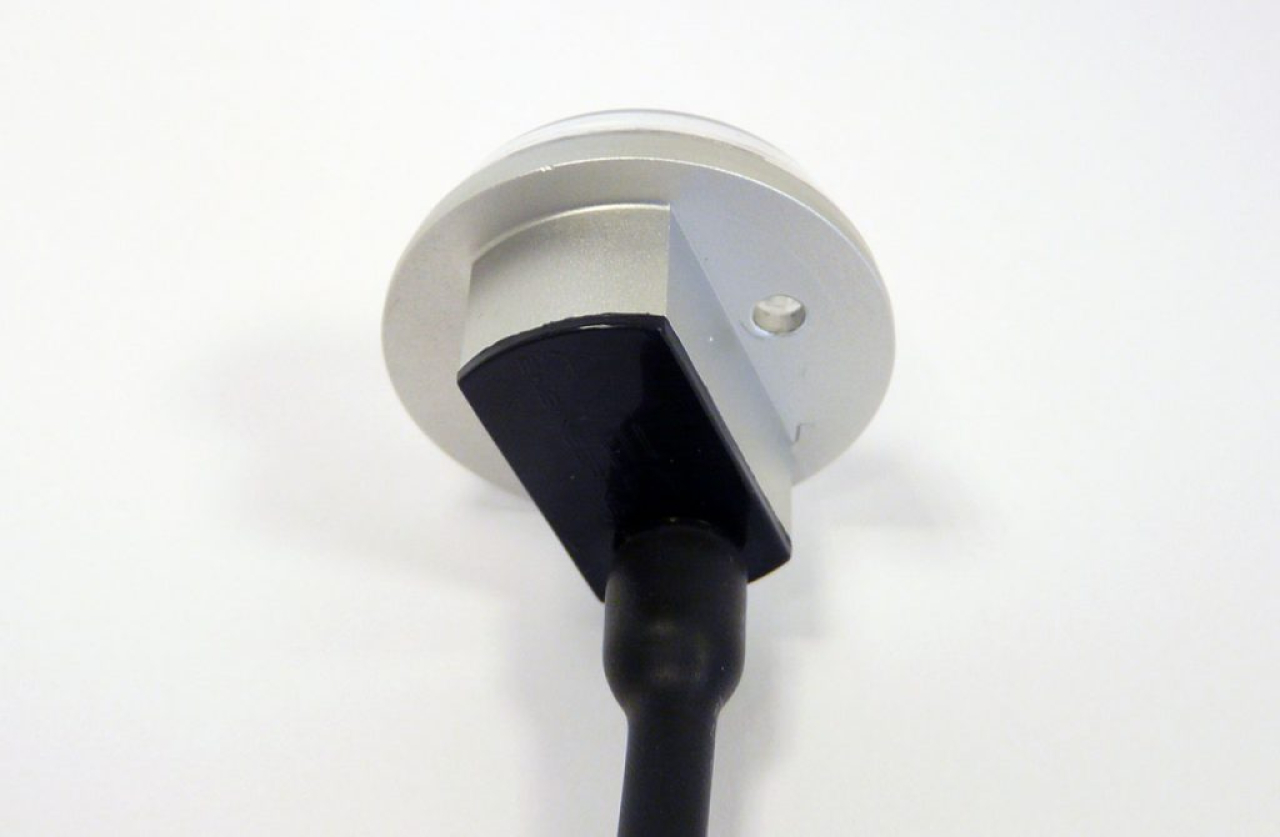

| Recommended size of mounting screw | M3 |
| Reverse Polarity Protection | Yes |
| Over-Voltage Spike Protection | 60 V / 1 s |
| Under-Voltage Protection | Yes, 8.5 V |
| Over-Voltage Protection | Yes, 33 V |
| Waterproof, Dust-proof, Vibration-proof | Yes |
