AirBurst NG DayLite™
Anti-collision LED Light
Anti-collision LED Light

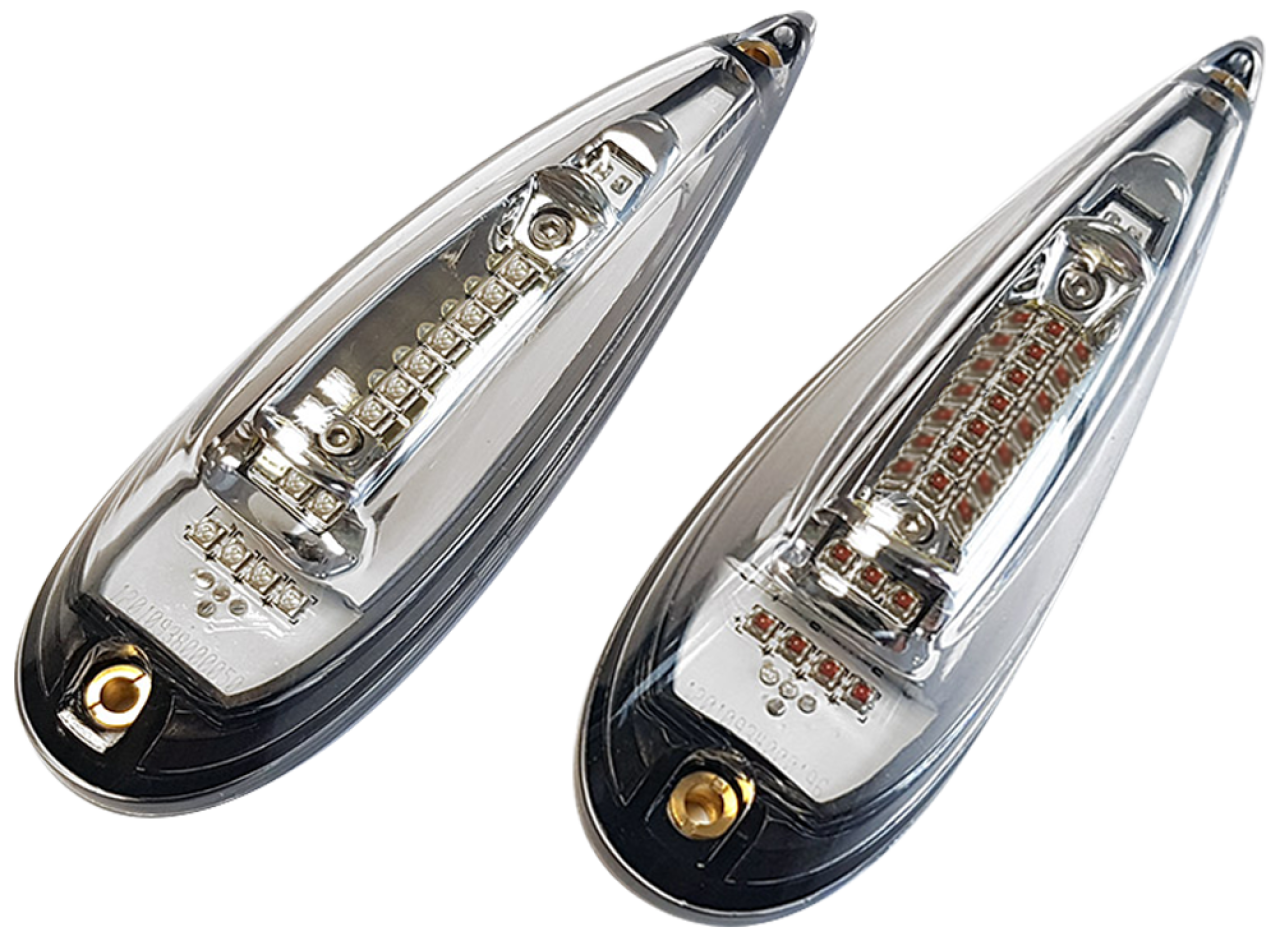

At only 26 millimeters in height (1.024 inch) the new AirBurst™ is a value anticollision light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and LED management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
THIS IS NOT A TSO CERTIFIED LIGHT
Functions:

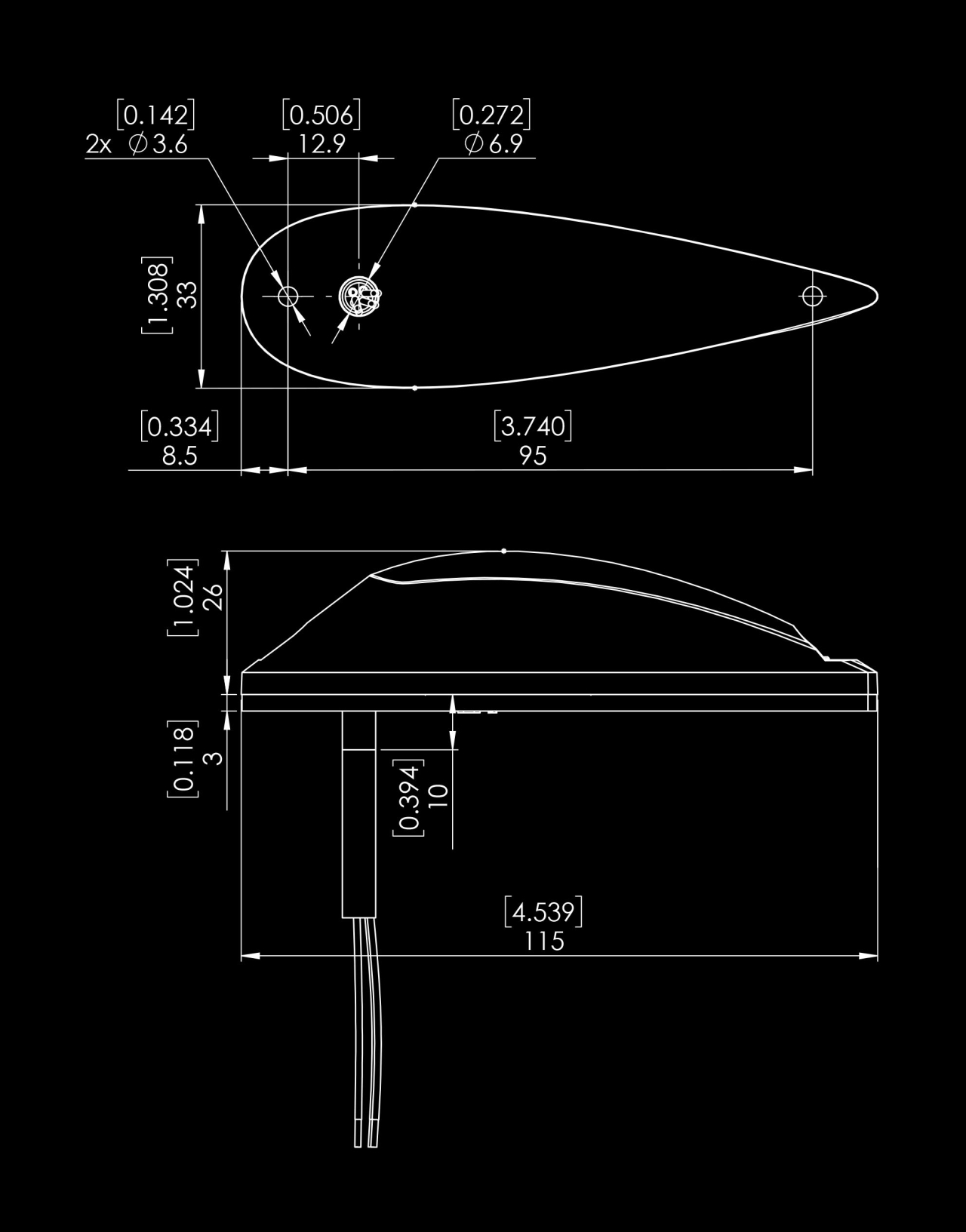

| Dimensions (mm) | 115 mm x 33 mm x 26 mm |
| Dimensions (inches) | 4.539” x 1.308” x 1.024” |
| Weight | 68 g / 2.39 oz |
| Operating Voltage Range | 9–36 V DC |
| Input Current (peak) – Red Input Current (peak) – Green |
1.5 A @14 V, 0.8 A @28 V 1.9 A @14 V, 0.9 A @28 V |
| Input Power (peak) – Red Input Power (peak) – Green |
21 W @14 V, 22 W @28 V 26 W @14 V, 26 W @28 V |
| Recommended size of mounting screw | M3 / DIN 7984, stainless steel recommended. Length depends upon placement location on wing tips. |
| Torque requirement for screw (M3 / DIN 7984) | 0.5 Nm / 0.3688 ft-lb |
| Repetition Rate of Strobe | 50 cycles per minute |
| Ambient Temperature | -55°C to +85°C -67°F to +185°F |
| Overheat Protection | Yes (+85°C / +185°F) |
| Reverse Polarity Protection | Yes |
| Transient Voltage | No |
| Under-Voltage Protection | No |
| Over-Voltage Protection | No |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof | Yes |
