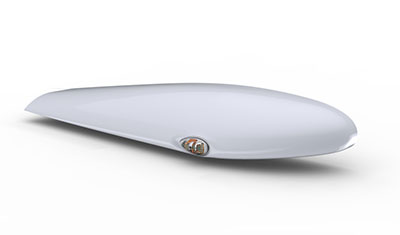

Wingtip with Ultra Galactica for Cessna
| Parametr | Hodnota |
|---|---|
| Operating Voltage Range | 9 – 36 VDC |
| Input Current – Position / Nav - green | 0.25A @36V, 0.3A @28V, 0.62A @14V, 0.9A @9V |
| Input Current – Position / Nav - red | 0.2A @36V, 0.25A @28V, 0.48A @14V, 0.8A @9V |
| Input Current – Strobe | 1.1A @36V, 1.4A @28V, 2.3A @14V, 2.9A @9V |
| Input Power - Position / Nav - green | 9 W @36V, 8.4 W @28V, 8.7 W @14V, 8.1 W @9V |
| Input Power - Position / Nav - red | 7 W @36V, 7 W @28V, 6.7 W @14V, 7.2 W @9V |
| Input Power - Strobe | 39.6 W @36V, 39.2 W @28V, 32.2 W @14V, 26.1 W @9V |
| Repetition Rate of Strobe | 50 cycles per minute |
| Recommended size of mounting screw | M5 |
| Ambient Temperature | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection | YES (+85°C) |
| Reverse Polarity Protection | YES |
| Transient Voltage | 80V at 2sec max, both polarities |
| Under-Voltage Protection (lockout) | YES (9V) |
| Over-Voltage Protection (lockout) | YES (36V) |
| Weight - Fiberglass | 900 g / 1.984 lb |
| Weight - Carbon | 830 g / 1.829 lb |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof | YES |
