Pegatron™

Tail/Rudder LED Light

Tail/Rudder LED Light - Position Only

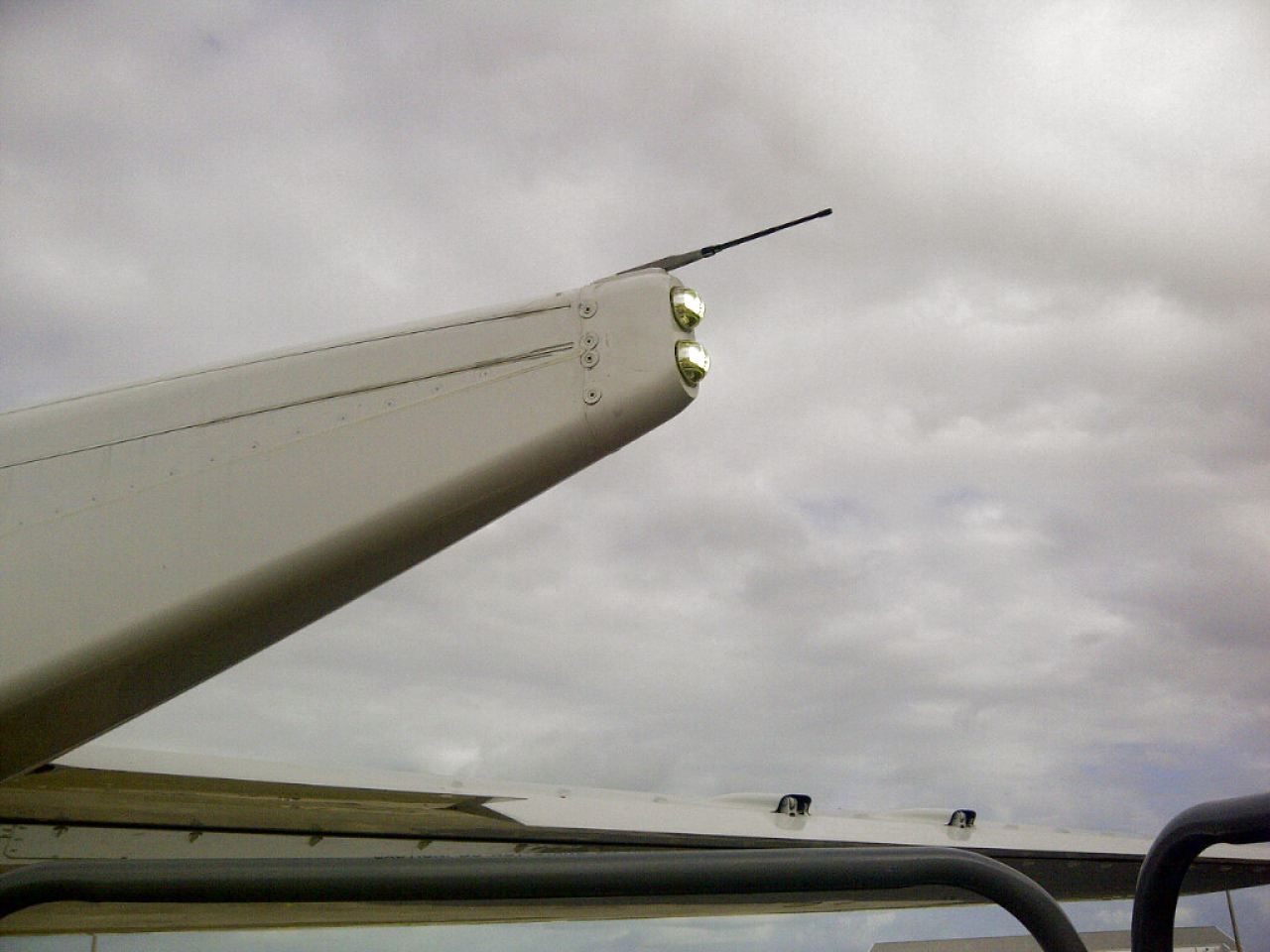

This light was originally developed for the Gulfstream 4 and 5 series aircraft to replace the legacy lights that failed so often and could not be seen from far away at high speed jet flight. Two per tail of Gulfstreams and is now flying on over 1000 aircraft.

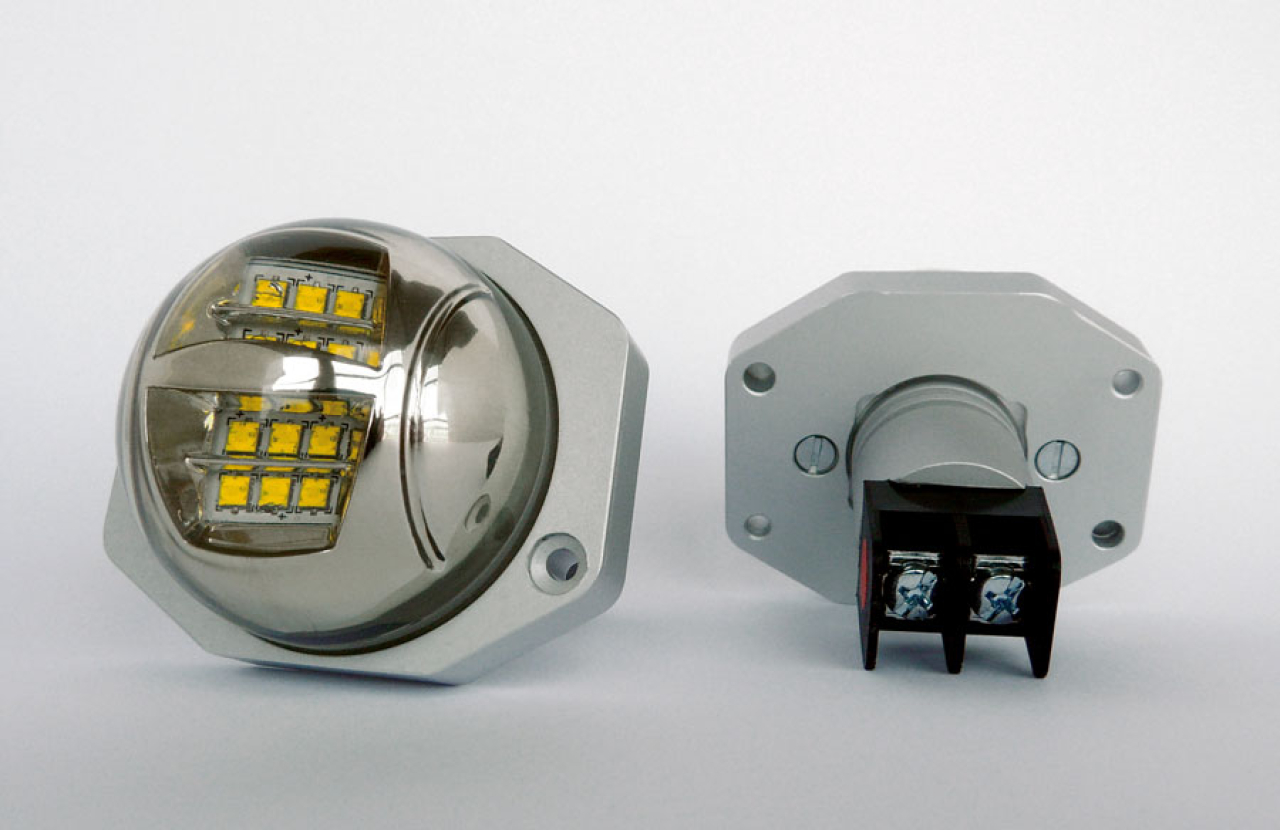

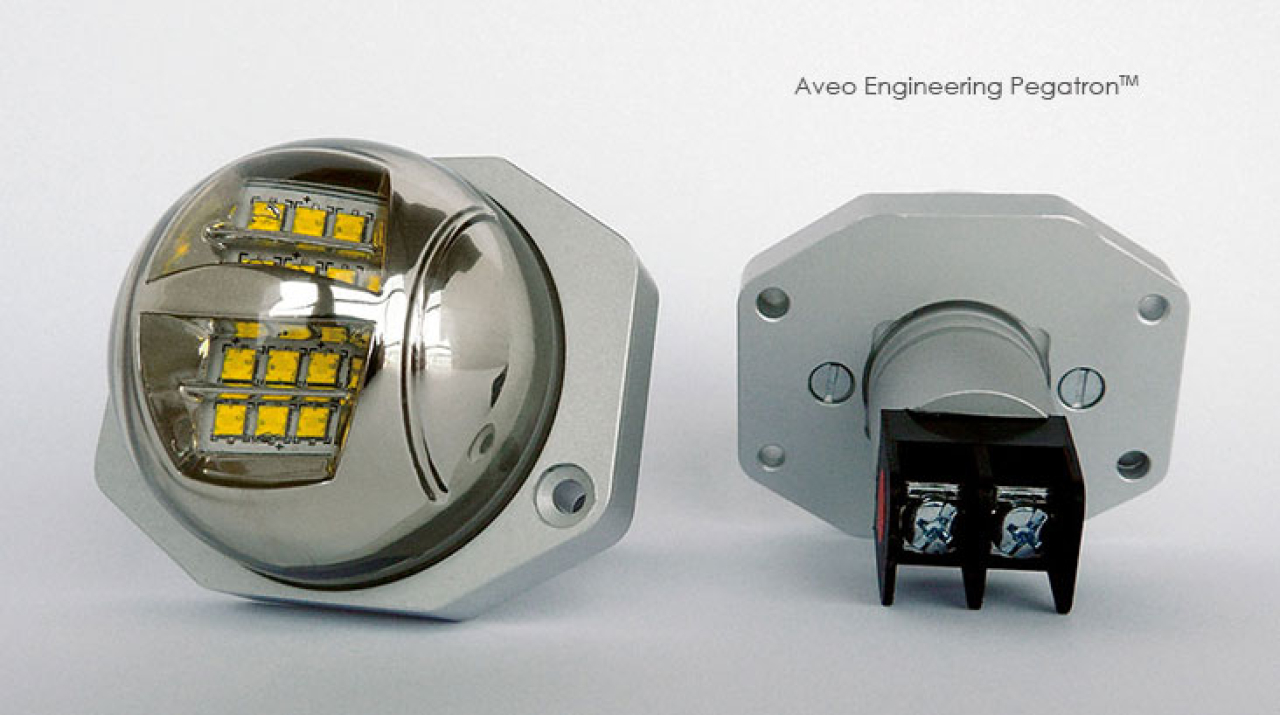

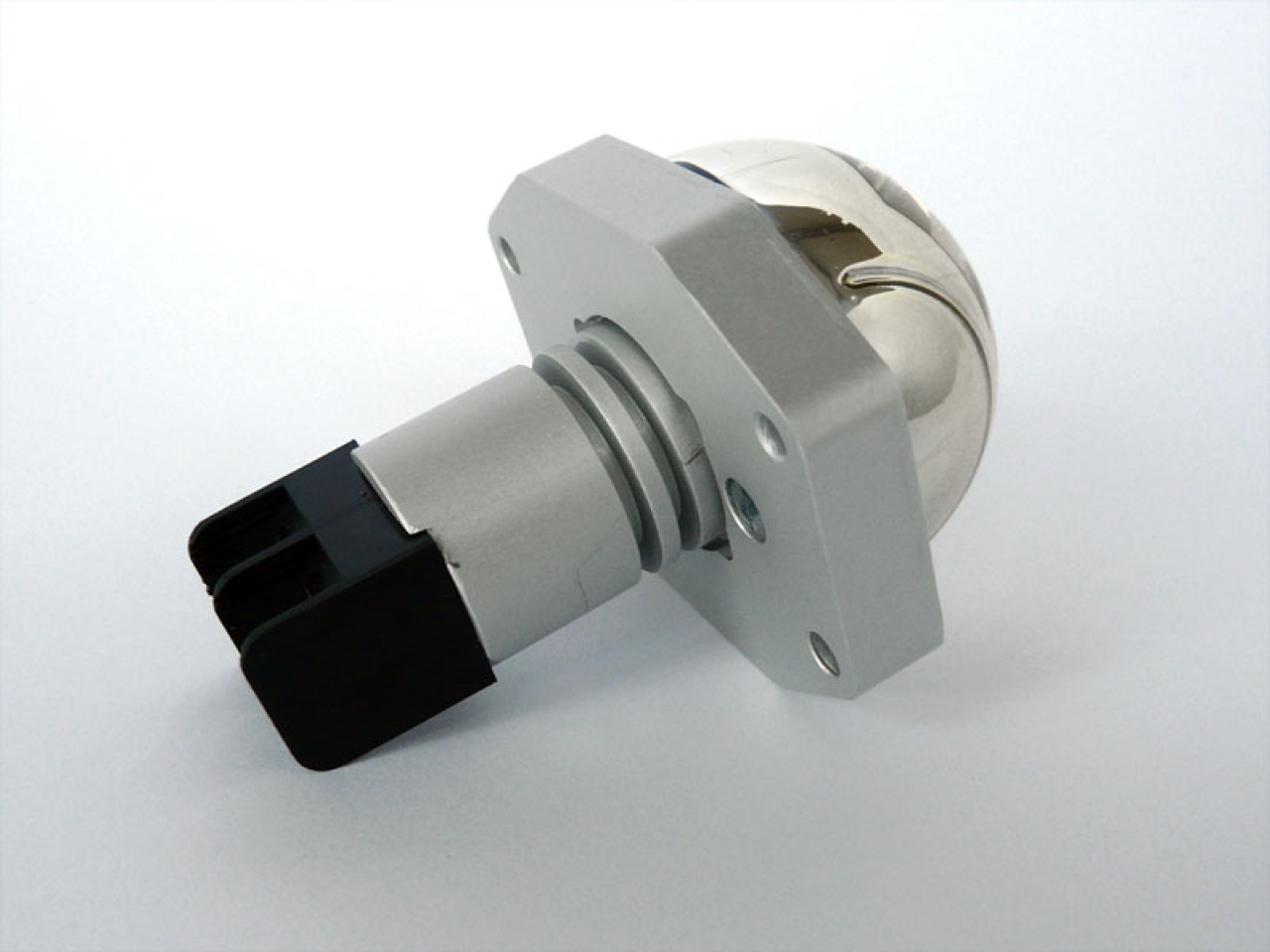

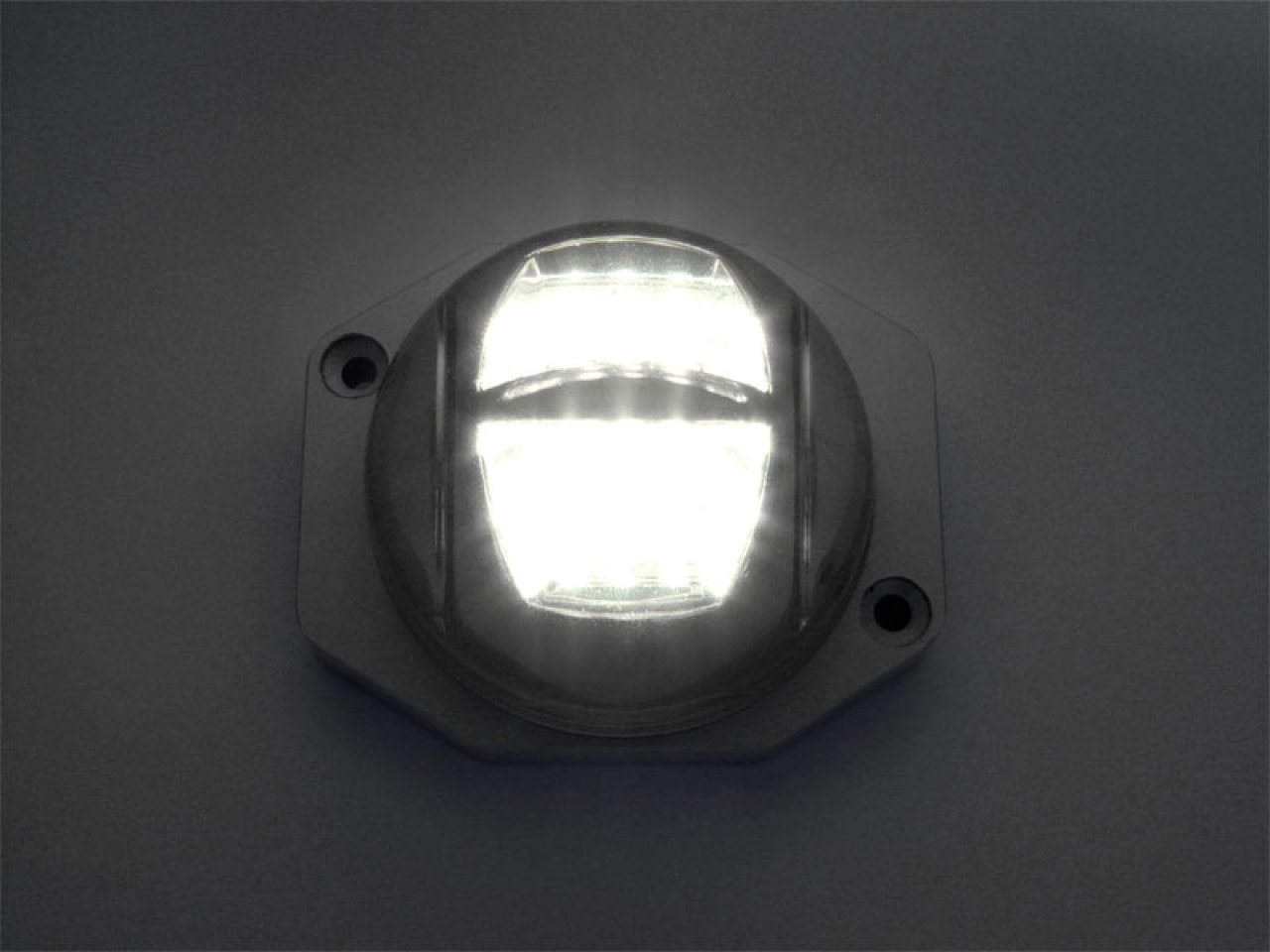

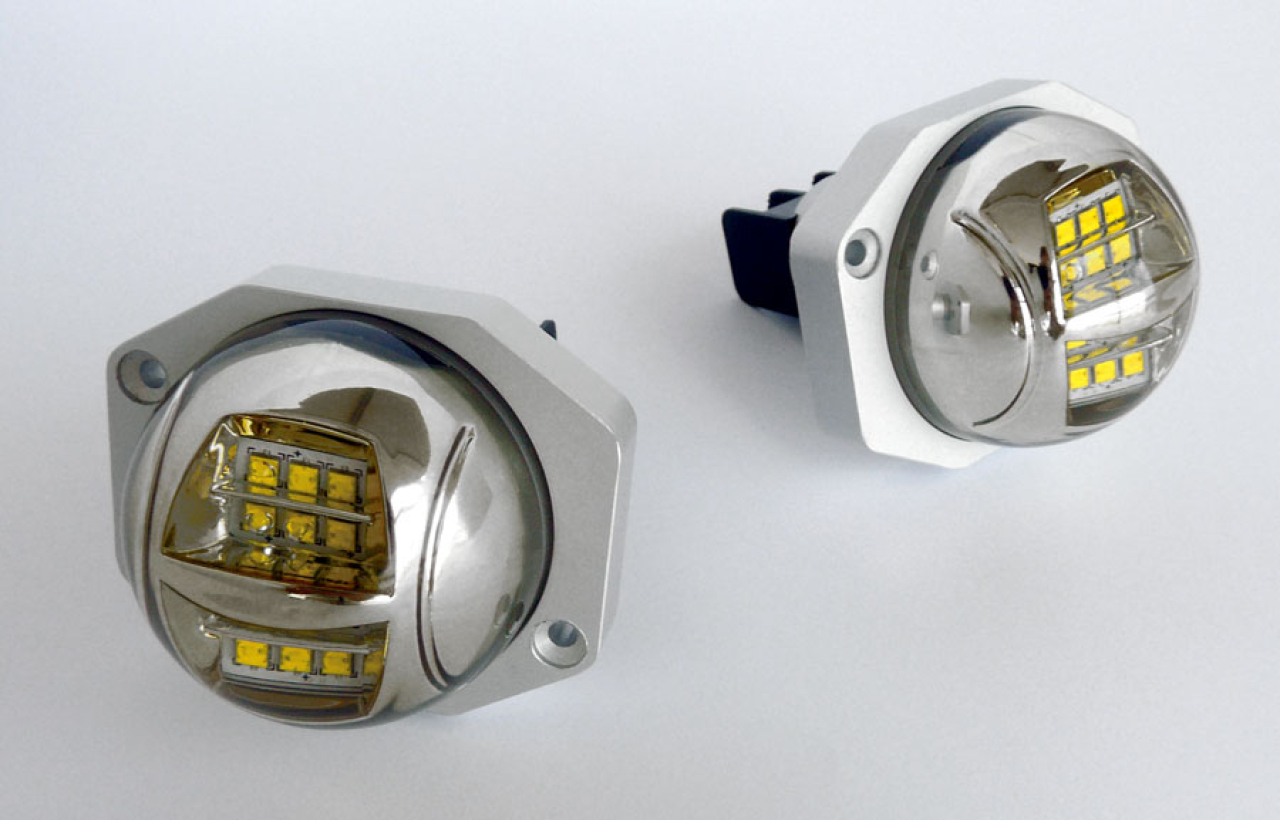

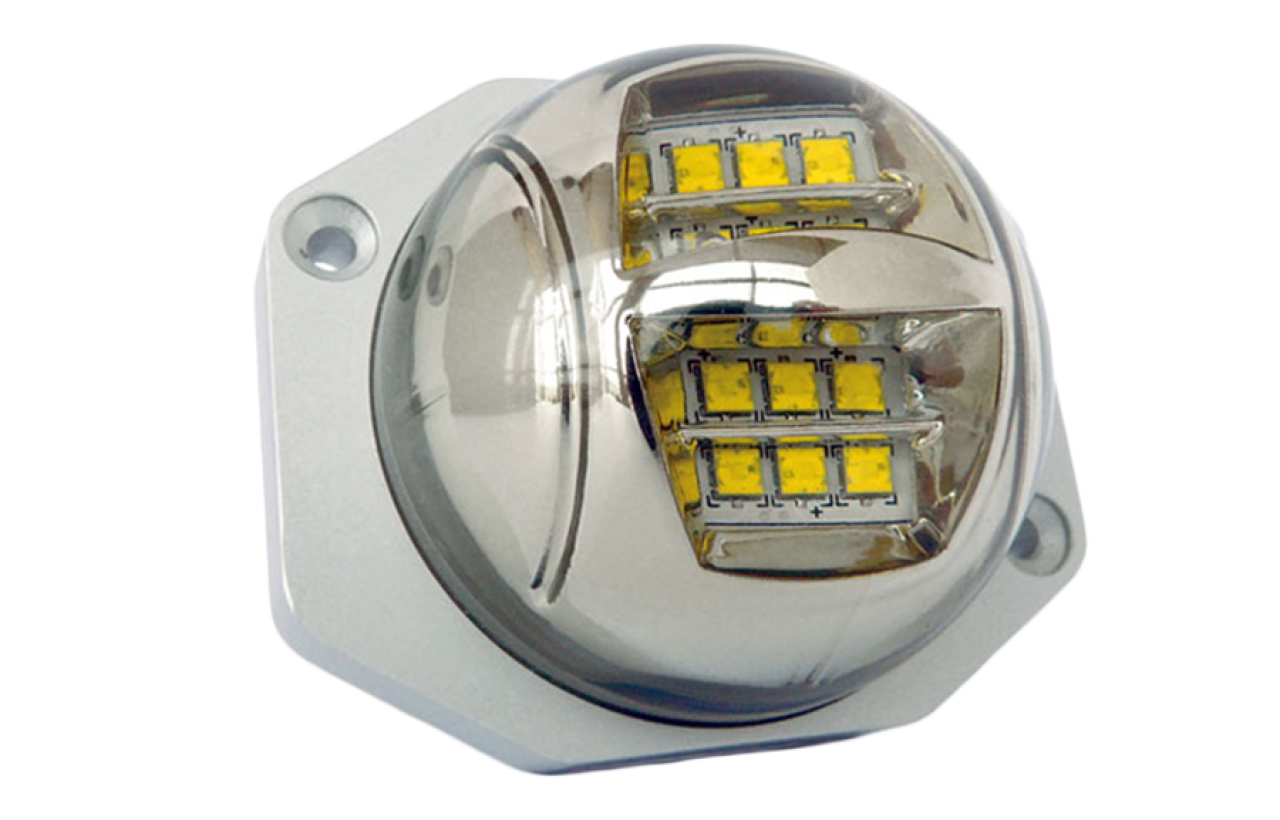

Pegatron is a compact Tail Fin steady position-light-only function. Features terminal connectors on base. Pegatron is direct drop-in replacement for the Honeywell Astreon™ Tail Position Light.

Pegatron™ is a solid-state, hermetically sealed position light that is simple drop-in replacements for these old legacy lights – A2064, B9730, 30-2368, 30-2382.

Functions:

  • Position (White)

Specifications:

Dimensions See drawing on the left
Output Power 5.2 W
Weight 106 g / 0.234 lbs
Operating Voltage Range 18-36V DC
Primary Input Voltage 28V DC
Over-voltage Protection 80V (1s)
Input Current at 28V 0.22A (+/- 5%)
Reverse Polarity Protection Yes
Over-Voltage Shut Down 38.5V DC
Operating Temperature -55°C to +85°C / -67°F to +185°F
Over-Temperature Protection Yes
Waterproof Yes
Vibration-proof Yes
Shock-proof Yes
Dust-proof Yes

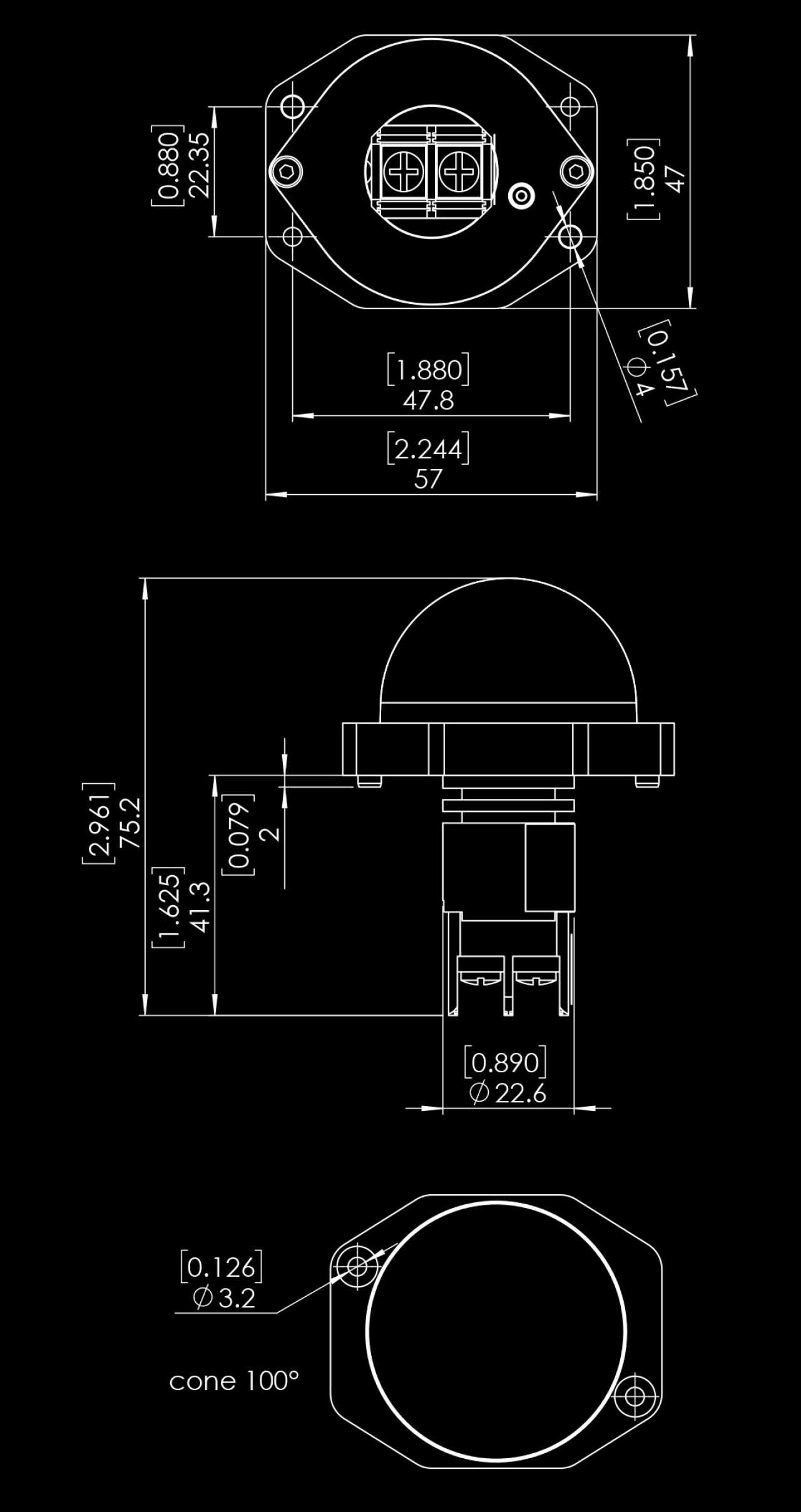

Drawing:
