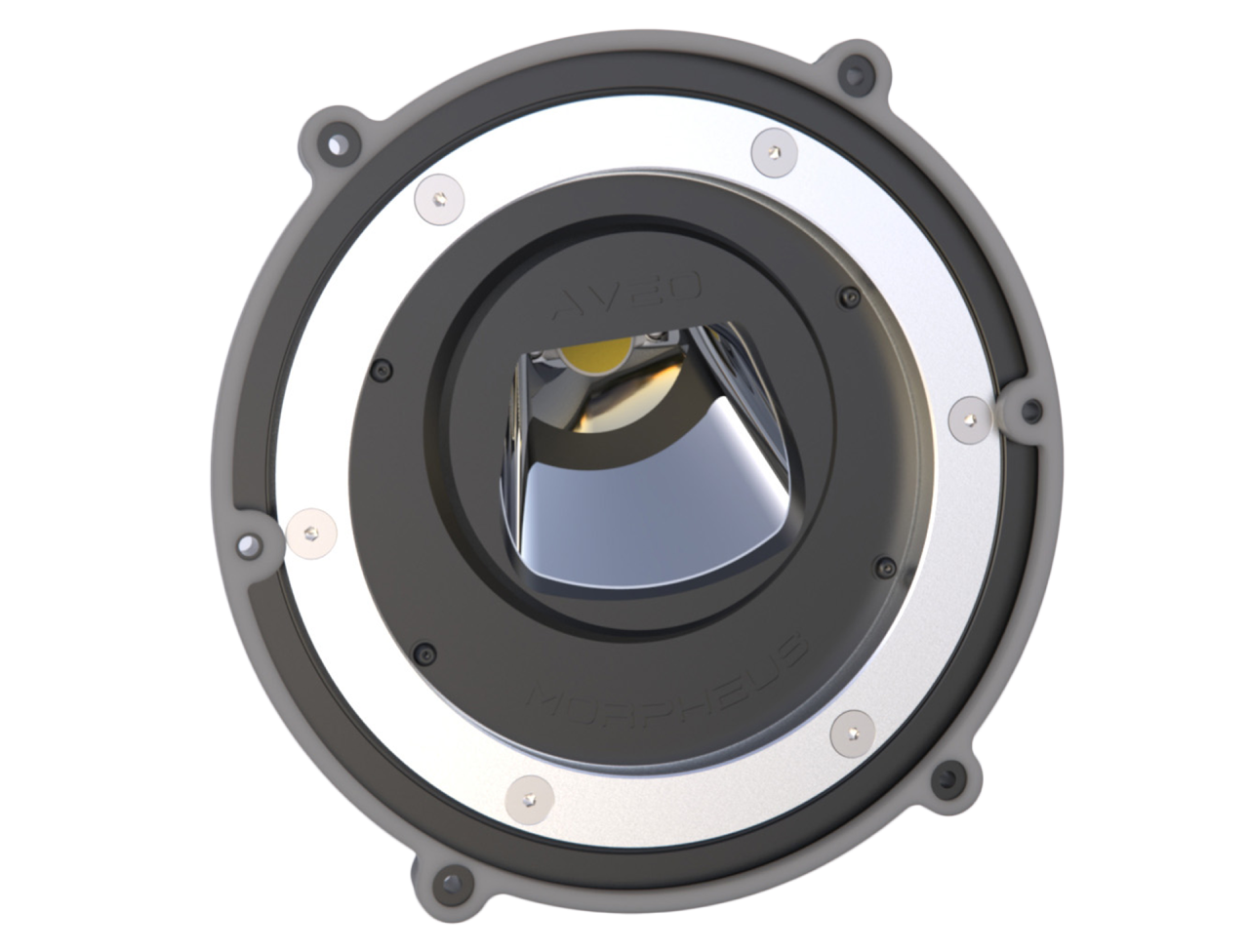

Morpheus™ VDC
Logo LED Light
Logo LED Light
Originally developed custom for the Mi-17/Mi-18 fuselages, the Morpheus is customizable for the required angular optics for many other types of airframes and uses. No NRE is required for a custom version ideally optimized for your needs. Just drop us a line!
Functions:
| Light characteristics | Logo Light |

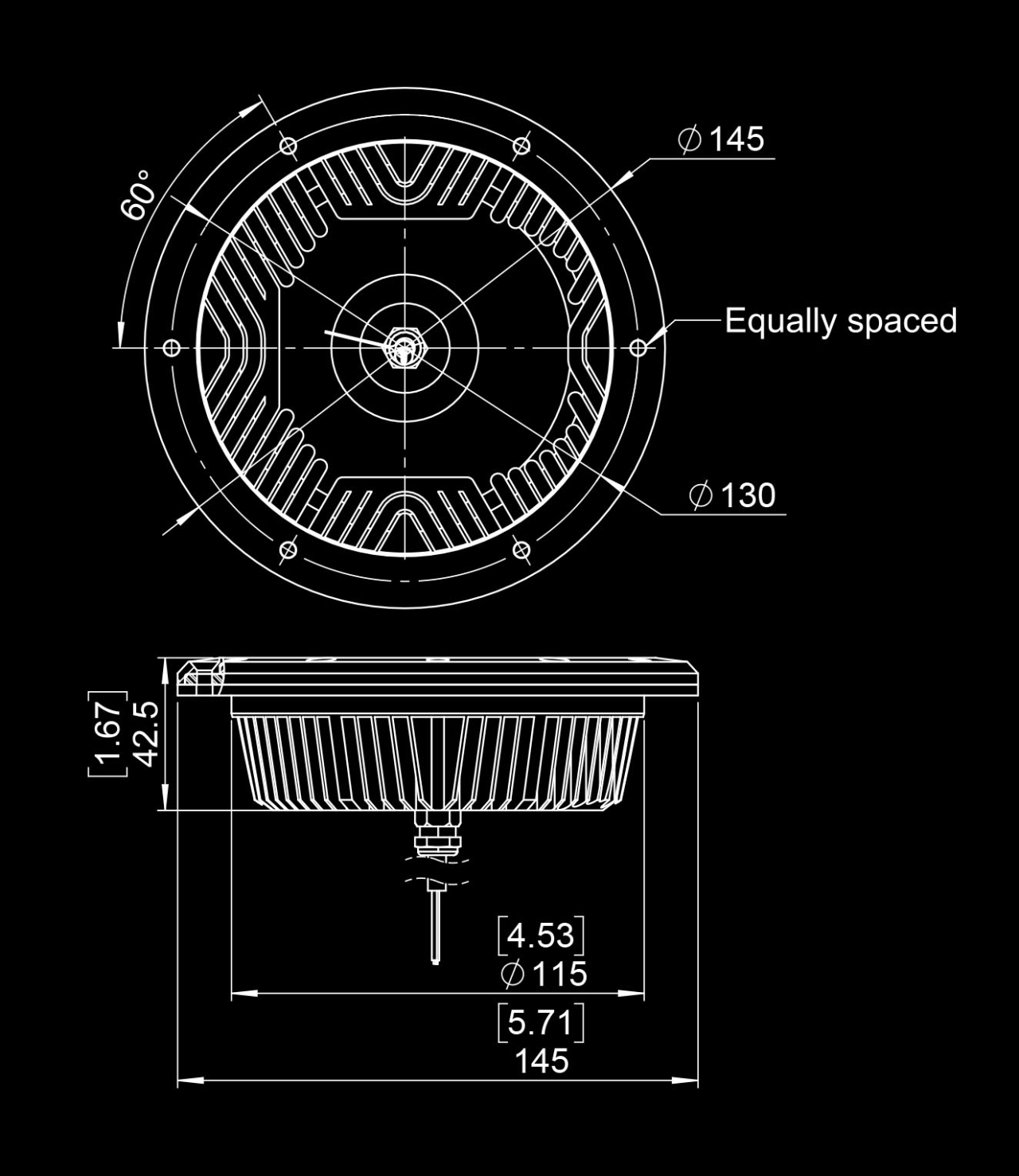

| Dimensions | See dimensional drawing |
| Weight | 524 g / 1.15 lb |
| Input voltage | from +18 to +36 VDC |
| Input current | 1.2 A @ 28 VDC |
| Input power | 33.5 W (typ) |
| Ambient temperature | -55°C to +85°C / -67°F to +185°F |
| Overheat protection | +85°C / +185°F (temperature dependent decrement of intensity) |
