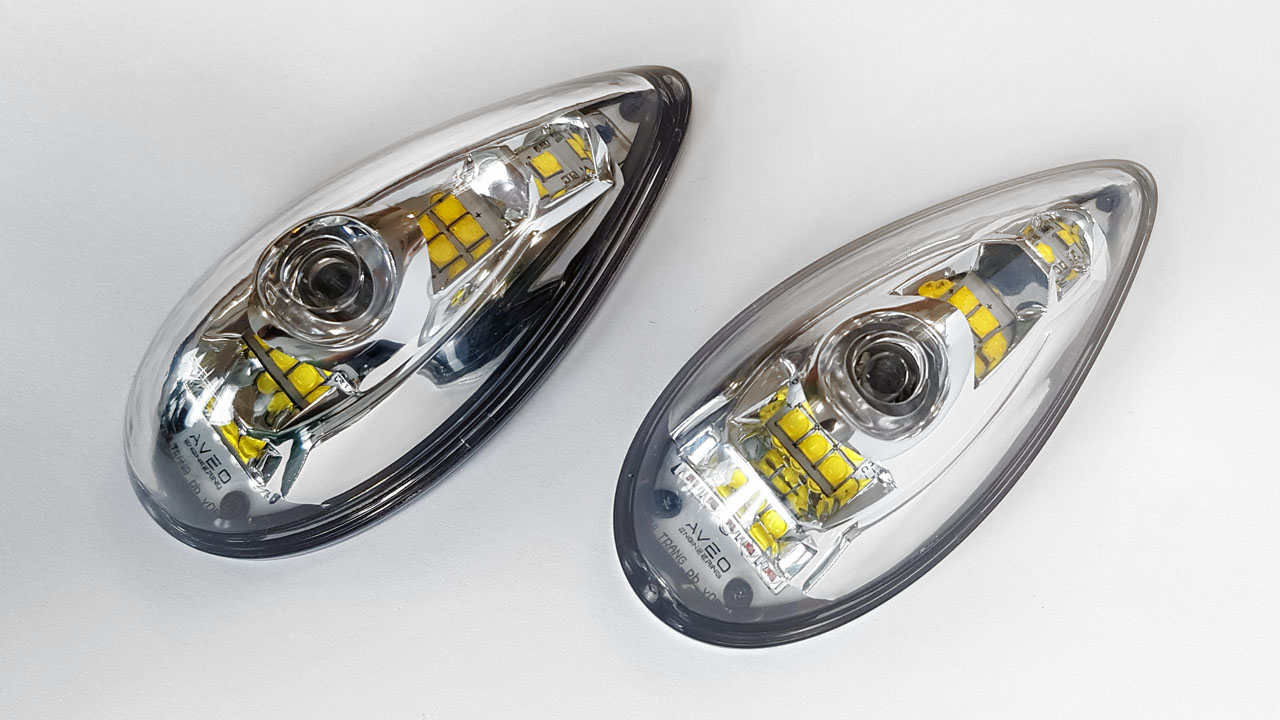

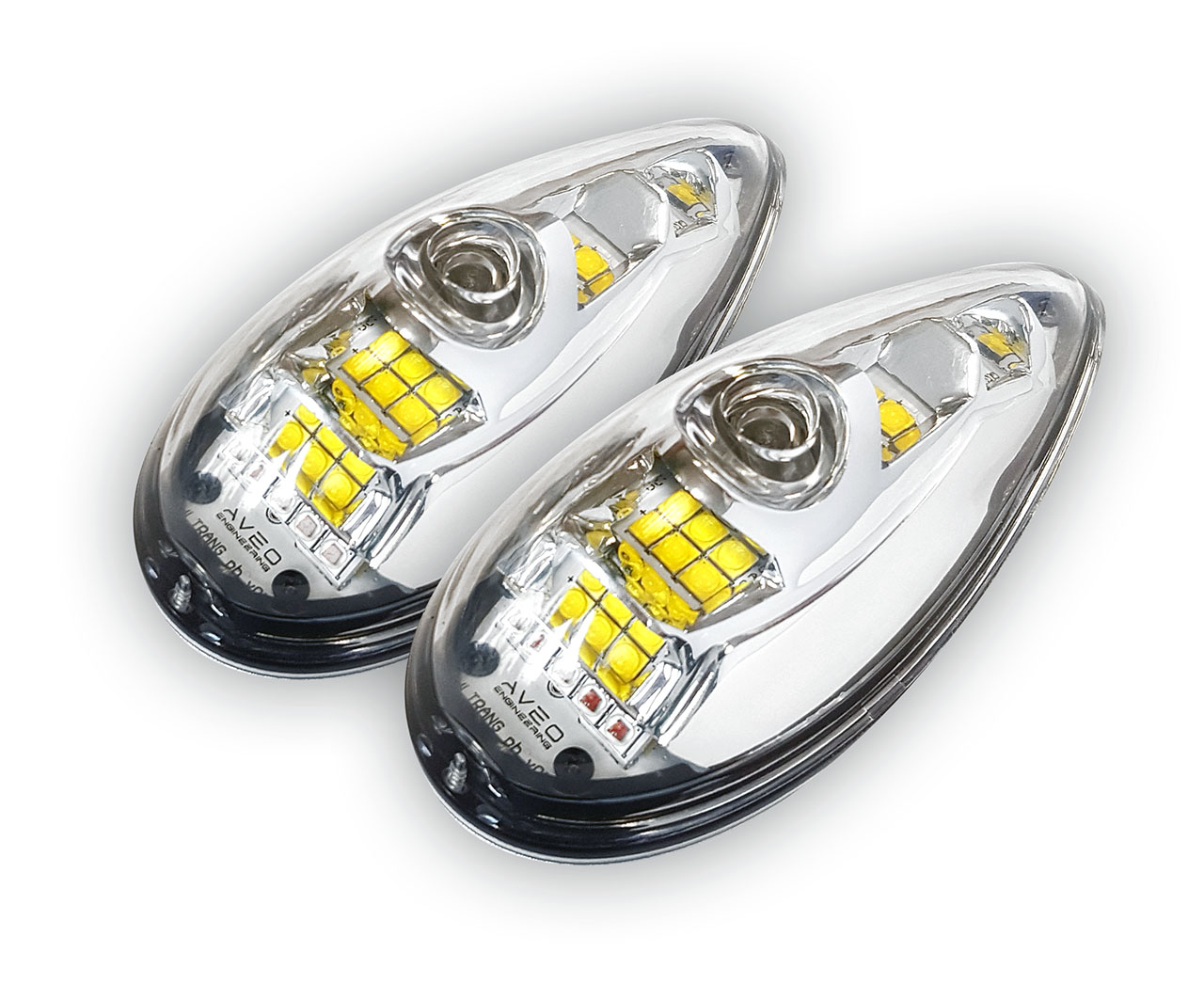

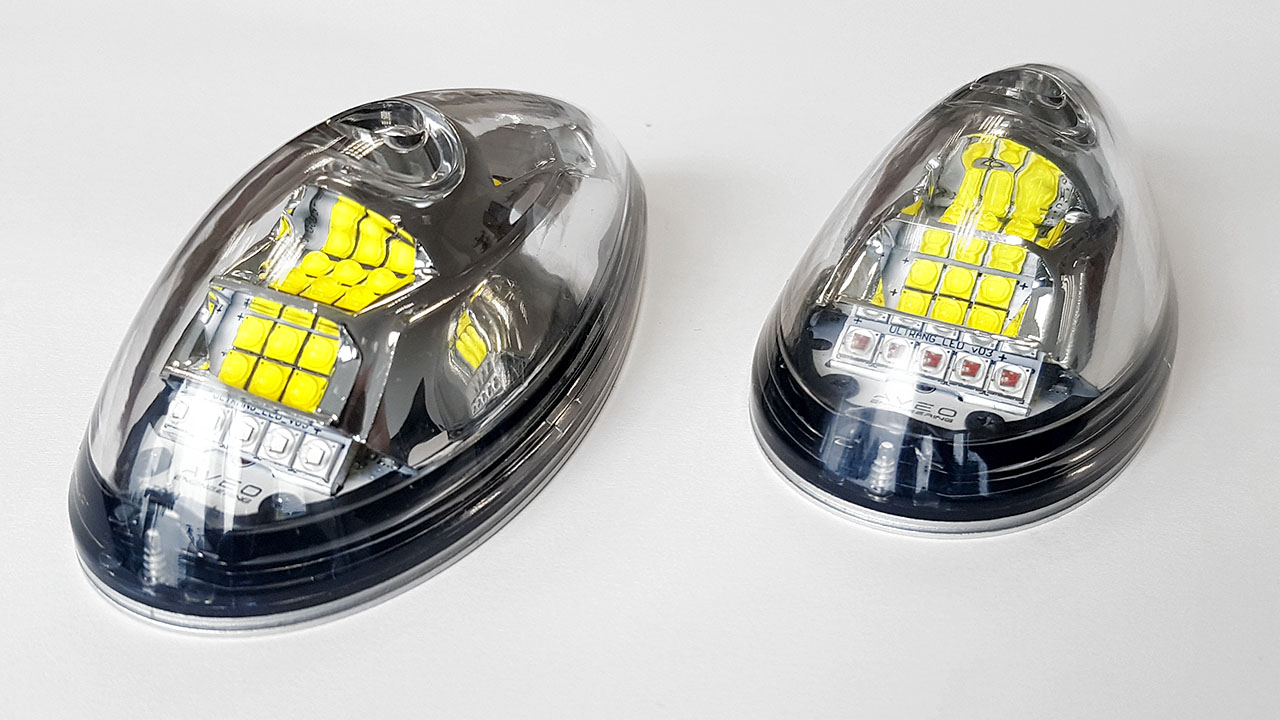

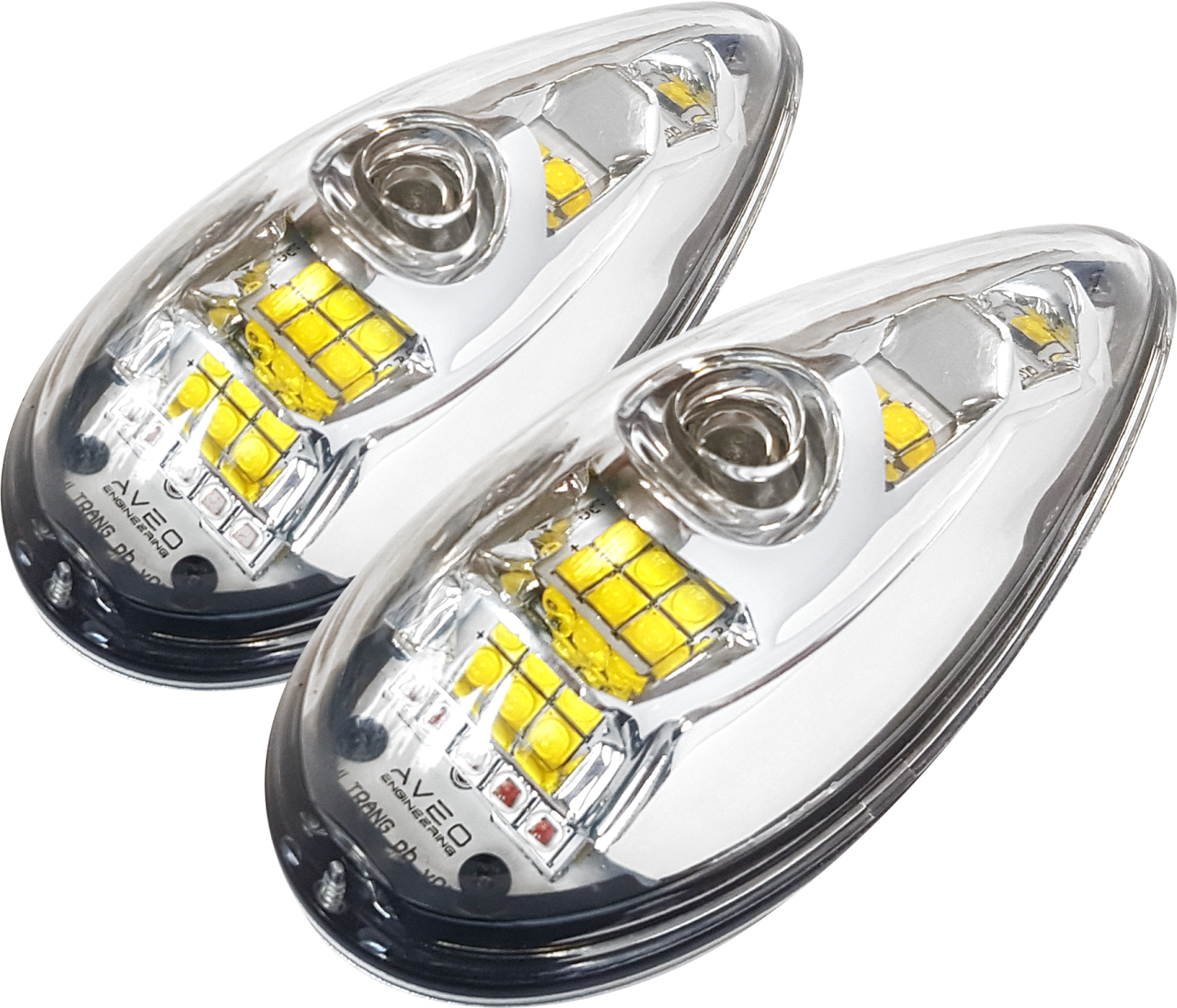

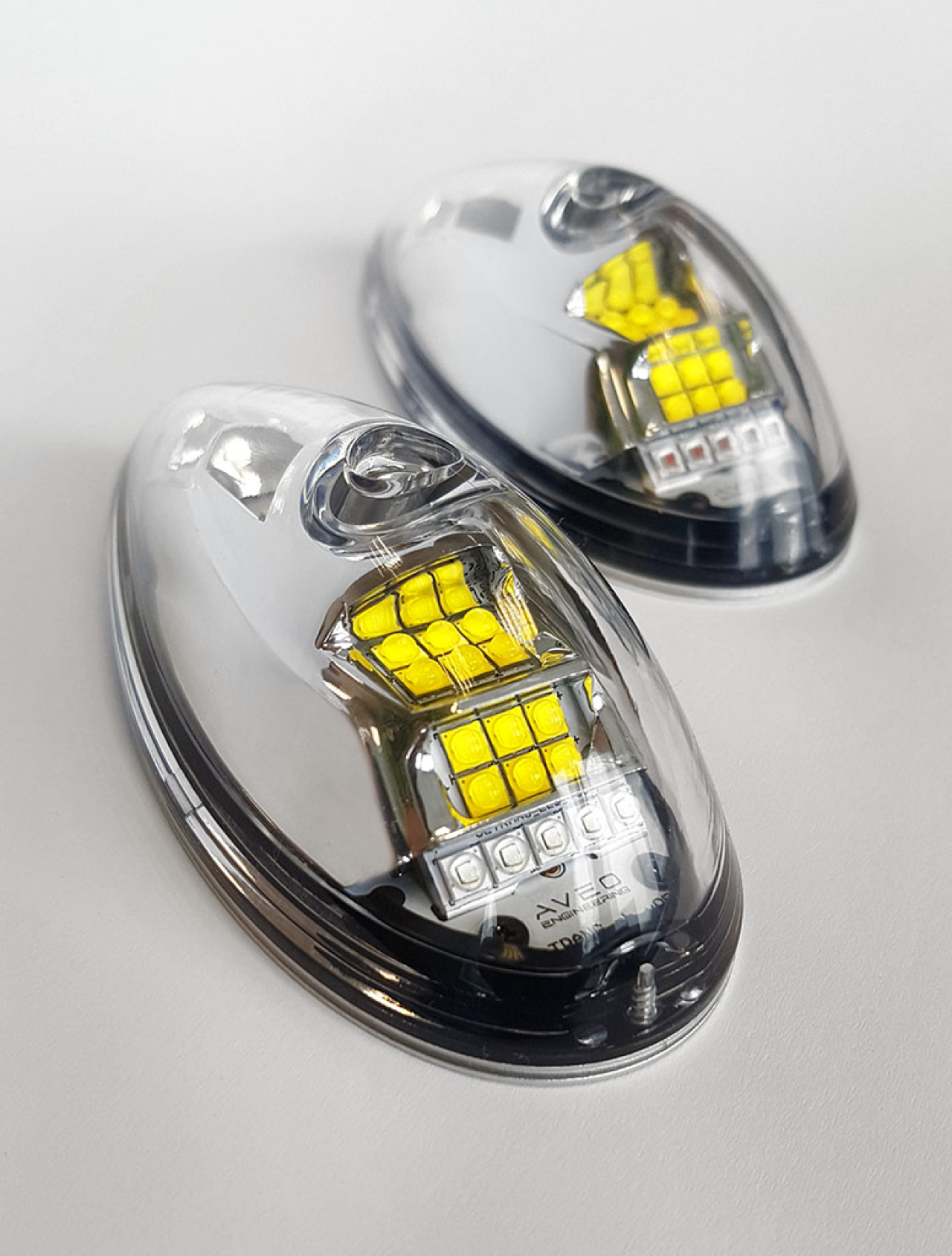

Ultra Galactica™
Navigation / Strobe / Position LED Light
Navigation / Strobe / Position LED Light
The Ultra Galactica™ Series lights are a very popular choice for certified and general aviation aircraft of any size, due to their compact design and easy installation. The Ultra has also become the leading nav-position-strobe all-in-one solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with OEM aircraft manufacturers. The lowest profile, lowest drag certified light in the aviation world.
TSO CERTIFIED
Functions:

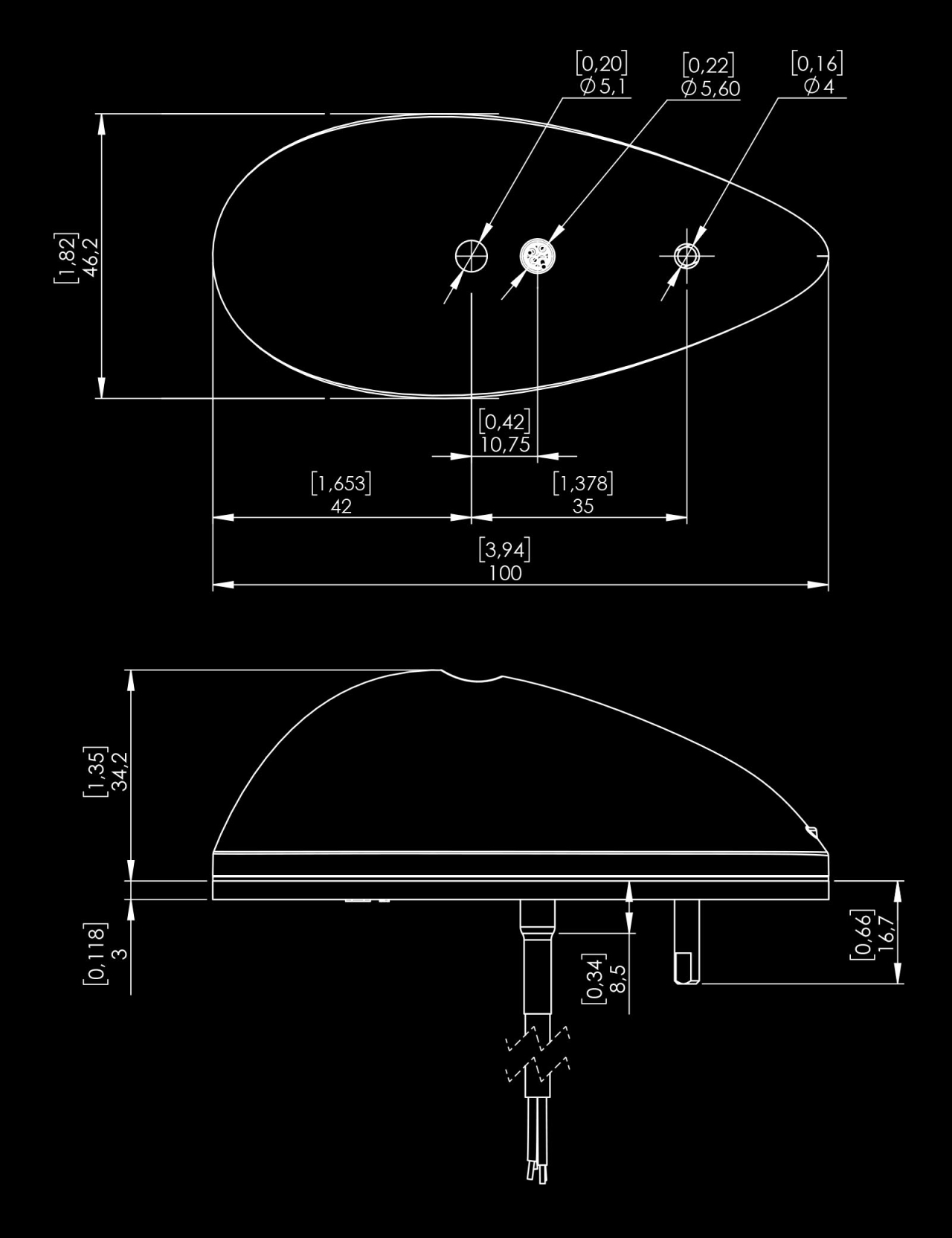

| Dimensions (mm): | 100 mm x 46.2 mm x 34.1 mm |
|---|---|
| Dimensions (inches): | 3.94“ x 1.819“ x 1.34“ |
| Weight: | 96 g / 3.386 oz |
| Operating Voltage Range: | 9 – 36 VDC |
| Input Power P/N: AVE-WPSTG-54G Mod(4) Nav Green / Rear White Position: |
14 V / 0.36 A : 5.1 W 28 V / 0.19 A : 5.4 W |
| Input Power P/N: AVE-WPSTG-54G Mod(4) Strobe: |
14 V / 2.92 A : 40.9 W 28 V / 1.36 A : 38.1 W |
| Input Power P/N: AVE-WPSTR-54G Mod(4) Nav Red / Rear White Position: |
14 V / 0.36 A : 5.0 W 28 V / 0.19 A : 5.3 W |
| Input Power P/N: AVE-WPSTR-54G Mod(4) Strobe: |
14 V / 2.97 A : 41.6 W 28 V / 1.38 A : 38.5 W |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended mounting screw: | See pictures in section Drawing |
| Torque requirement for screw M5x45mm: | 1.2 Nm |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V at 2sec max, both polarities |
| Under-Voltage Protection (lockout): | Yes (9V) |
| Over-Voltage Protection (lockout): | Yes (36V) |
| Waterproof, Dustr-proof, Shock-proof, Vibration-proof: | Yes |
