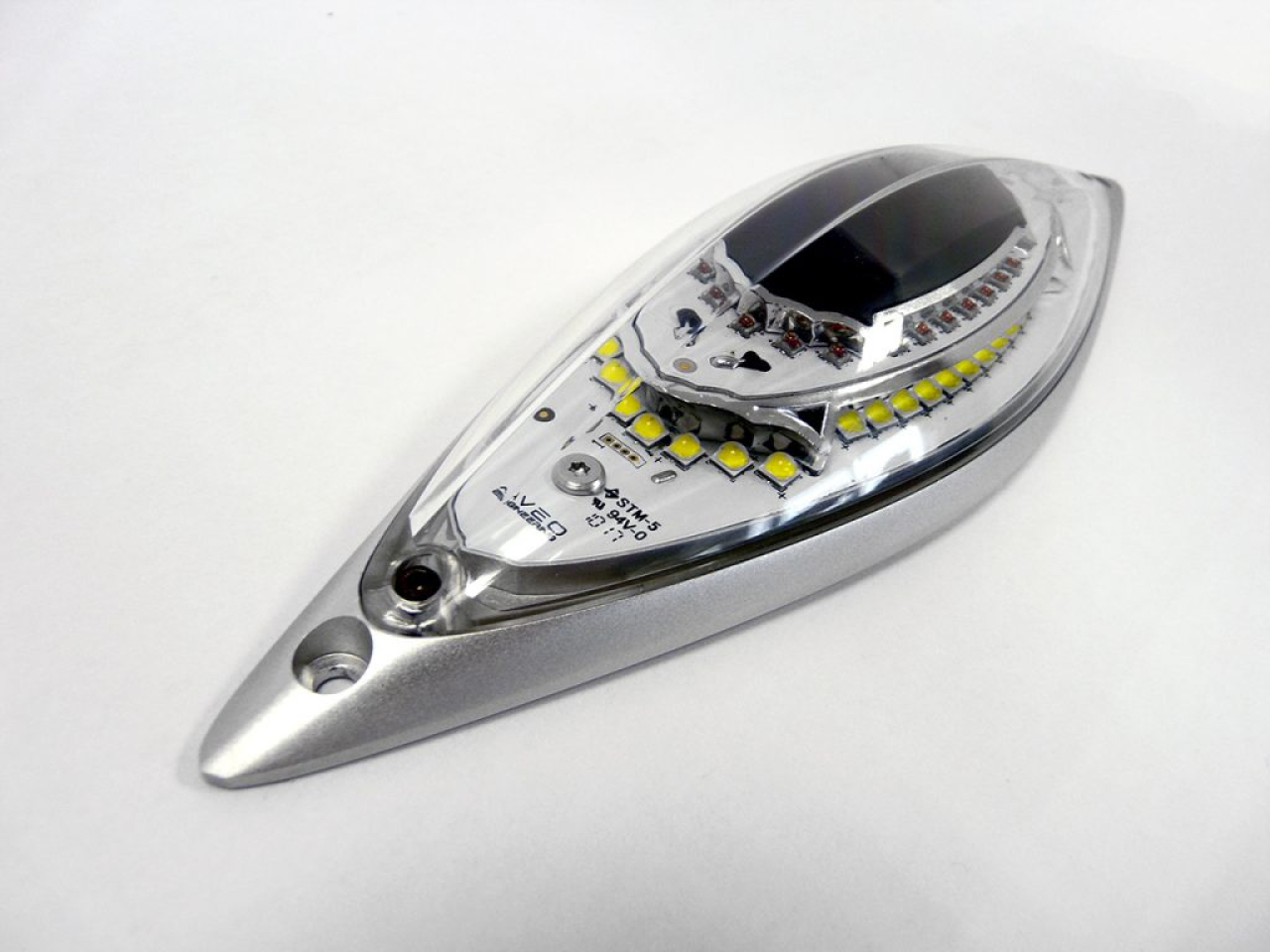

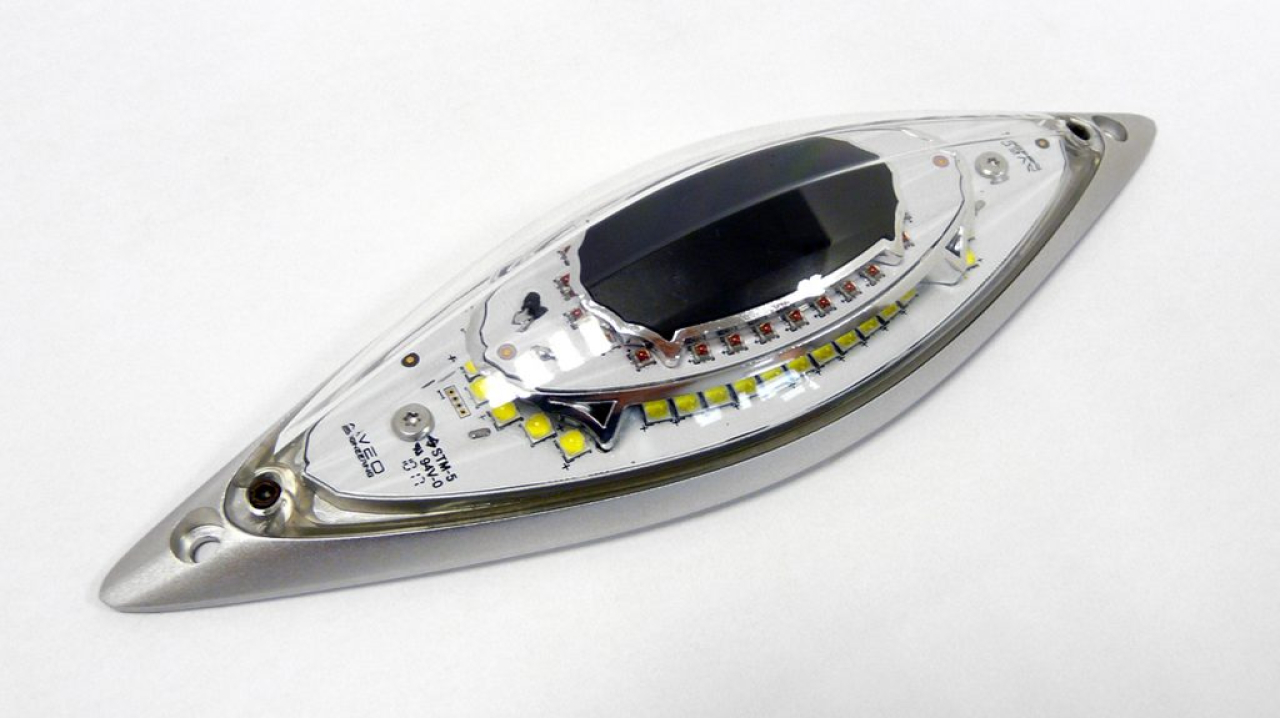

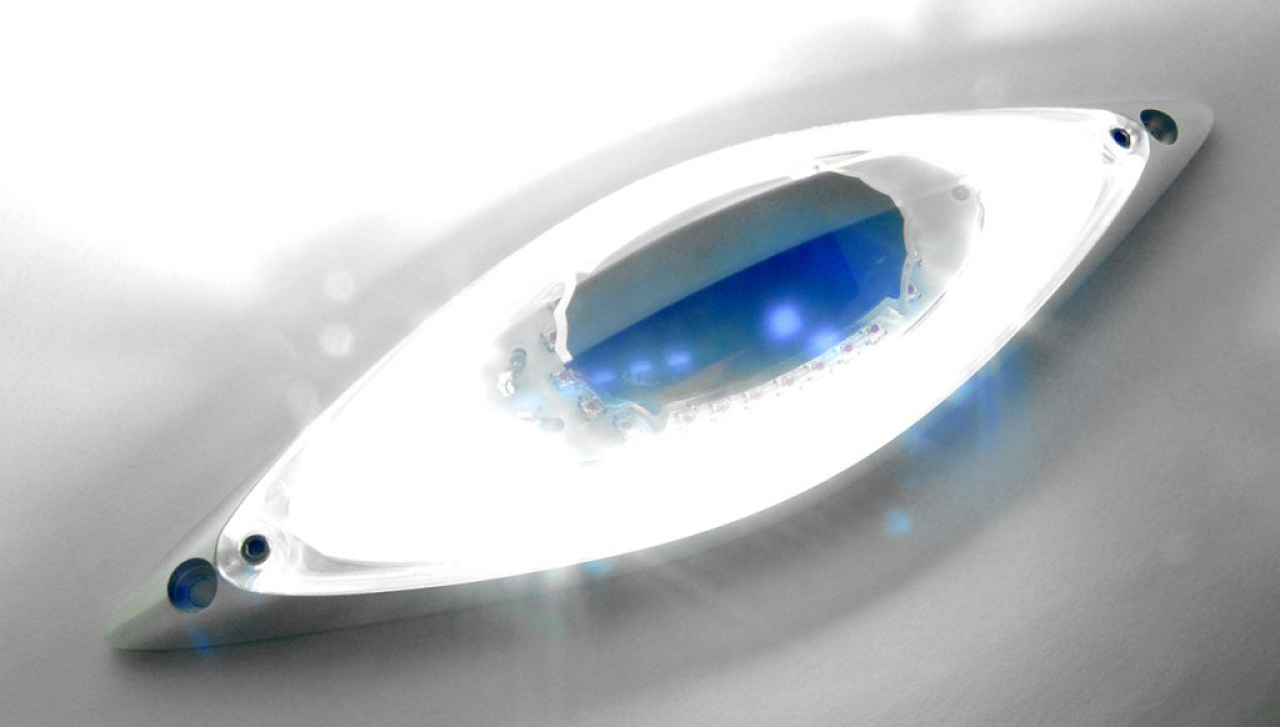

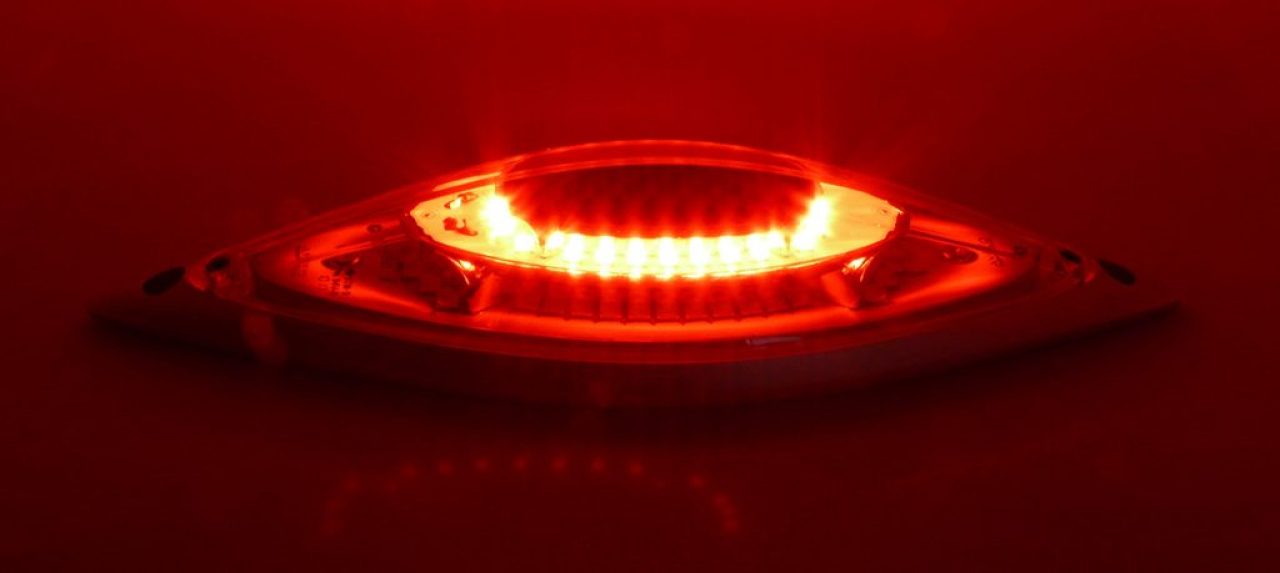

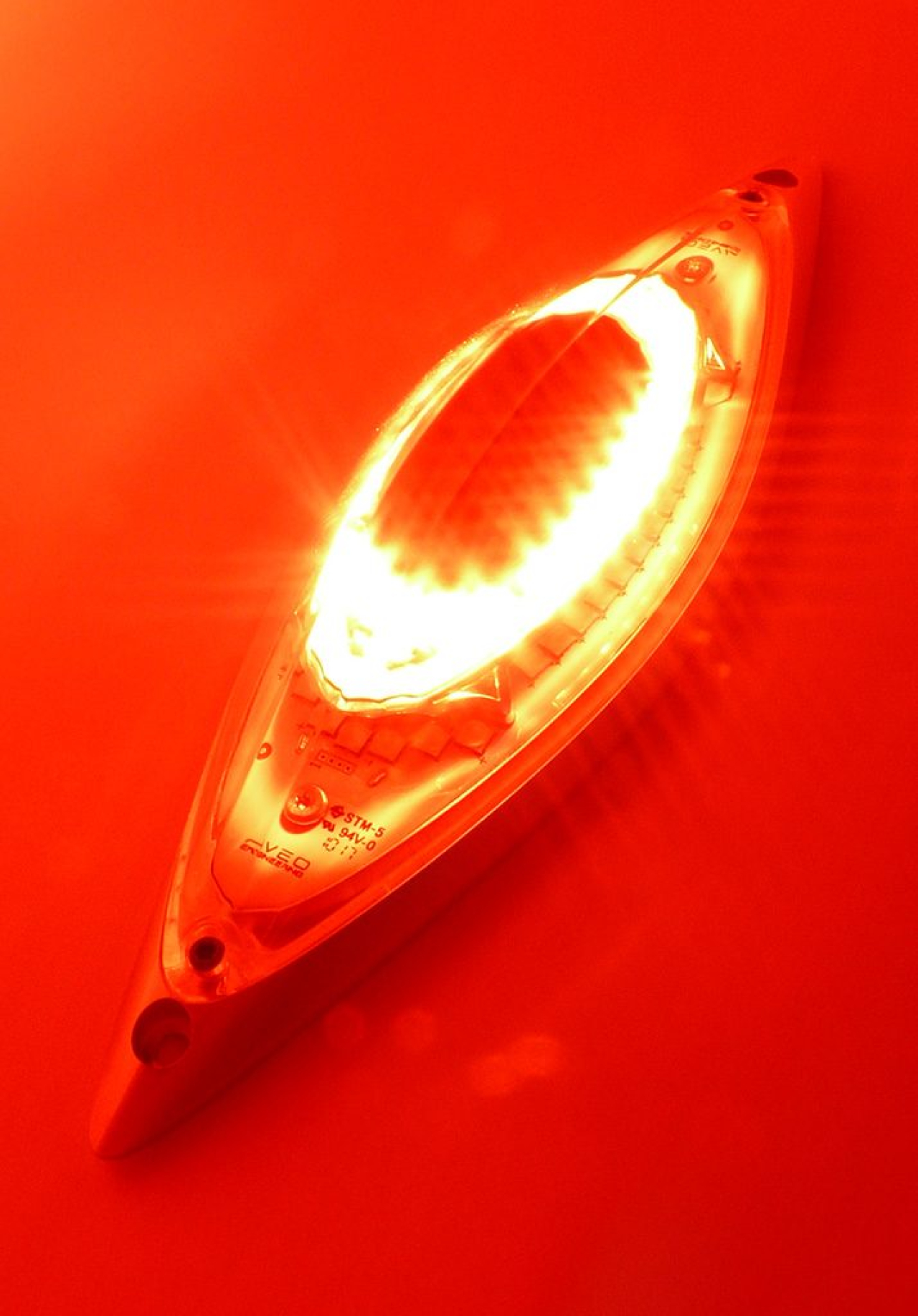

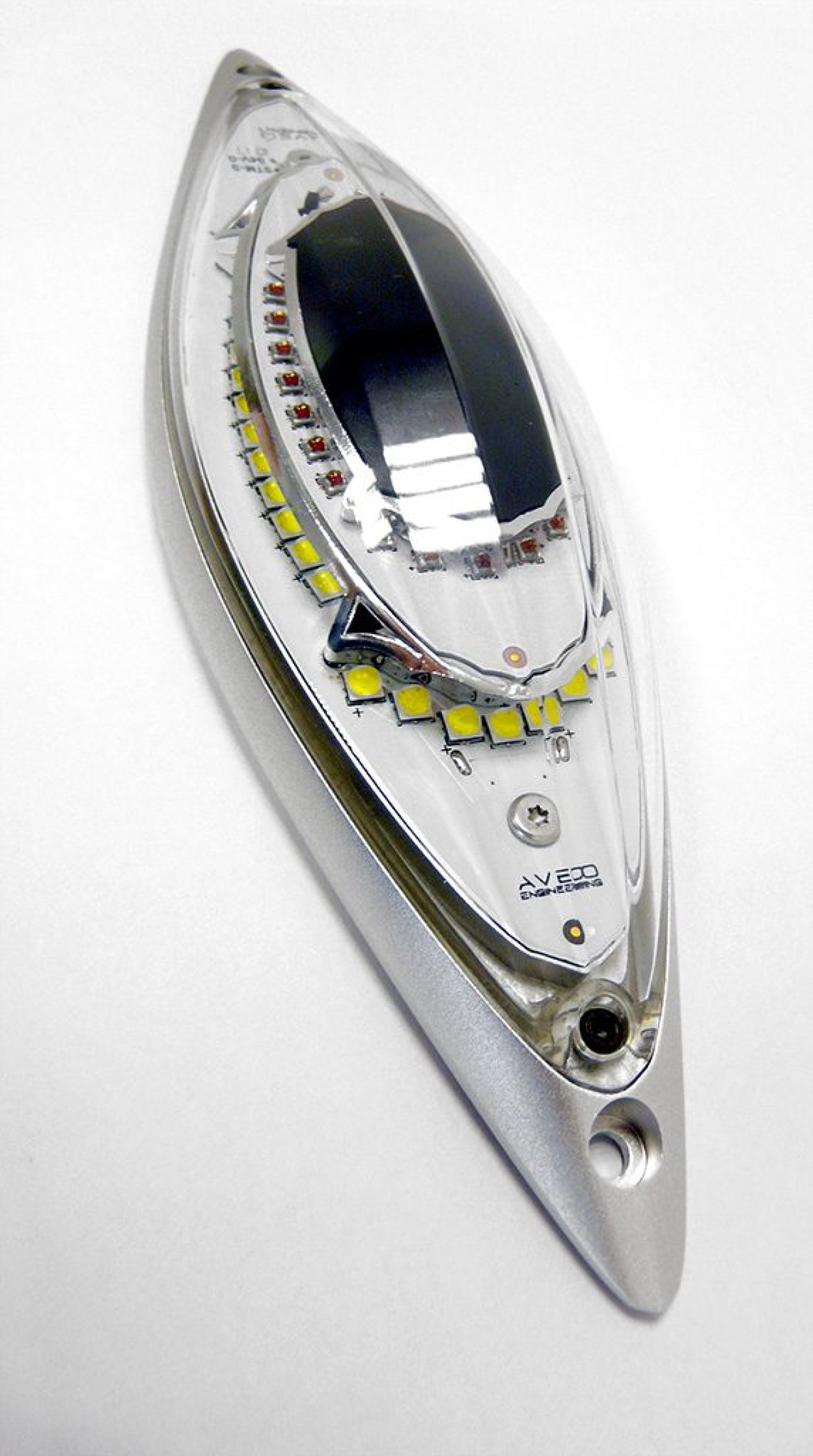

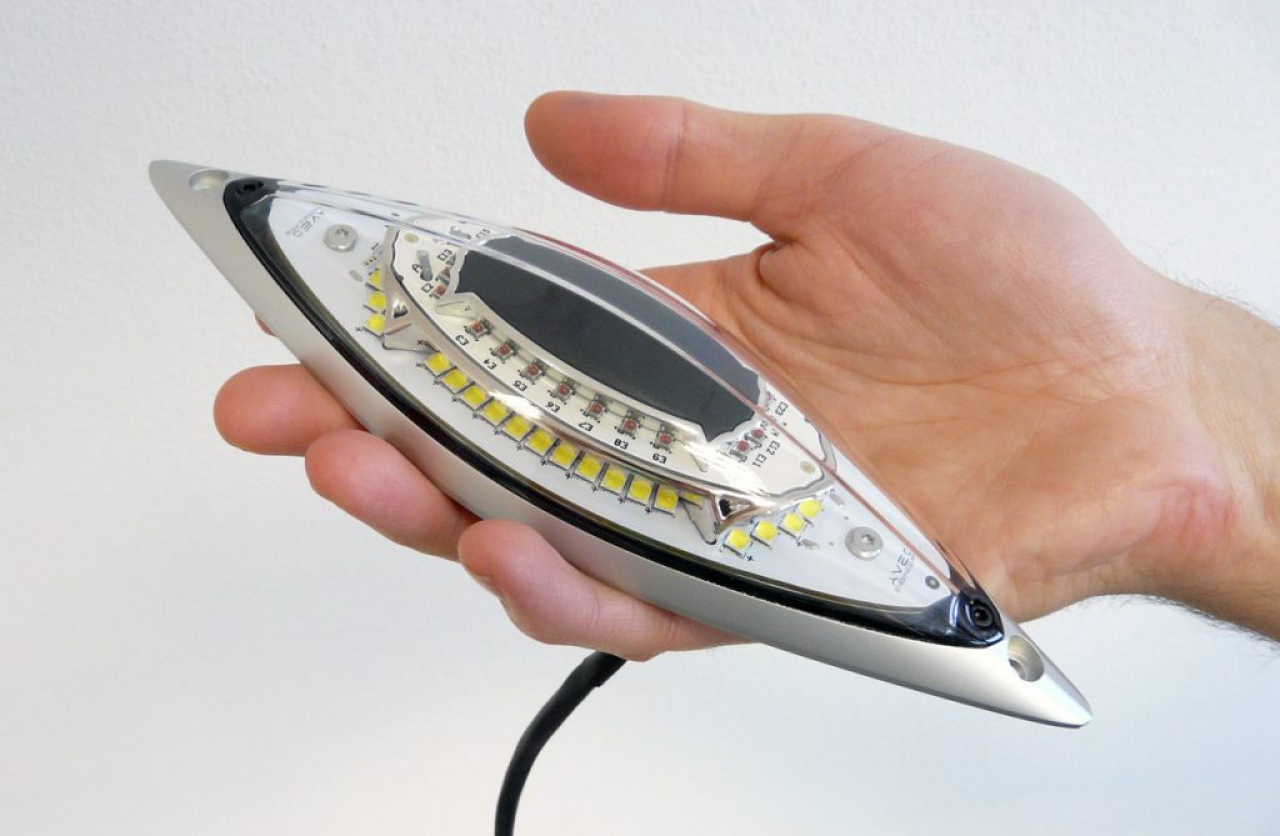

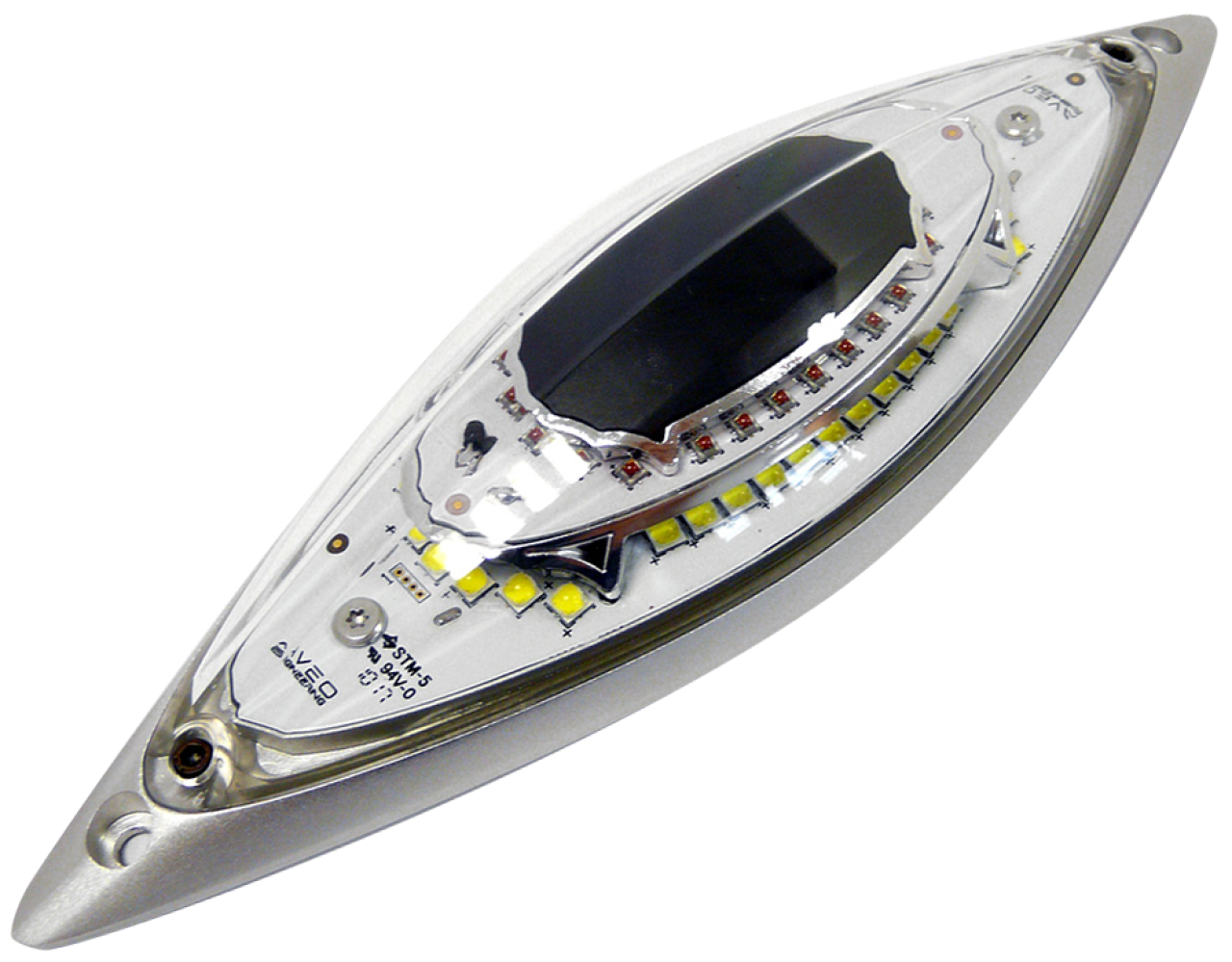

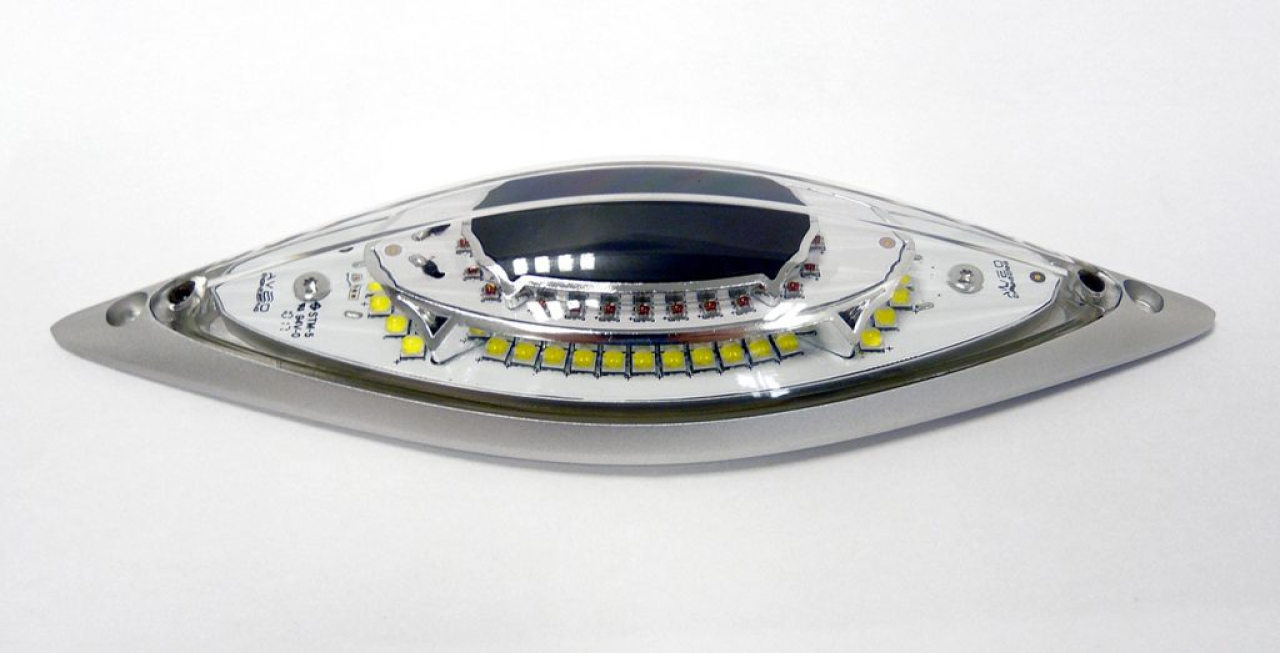

SuperNova Titania™
Anti-collision LED light
Anti-collision LED light
When extremely low drag and probably just even cool looks are in play, the SuperNova products are award winners. Don’t be fooled by its low profile, this light is a powerful strobe that will make you seen from 50nm or more. Unmatched by any product in the world.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
Functions:

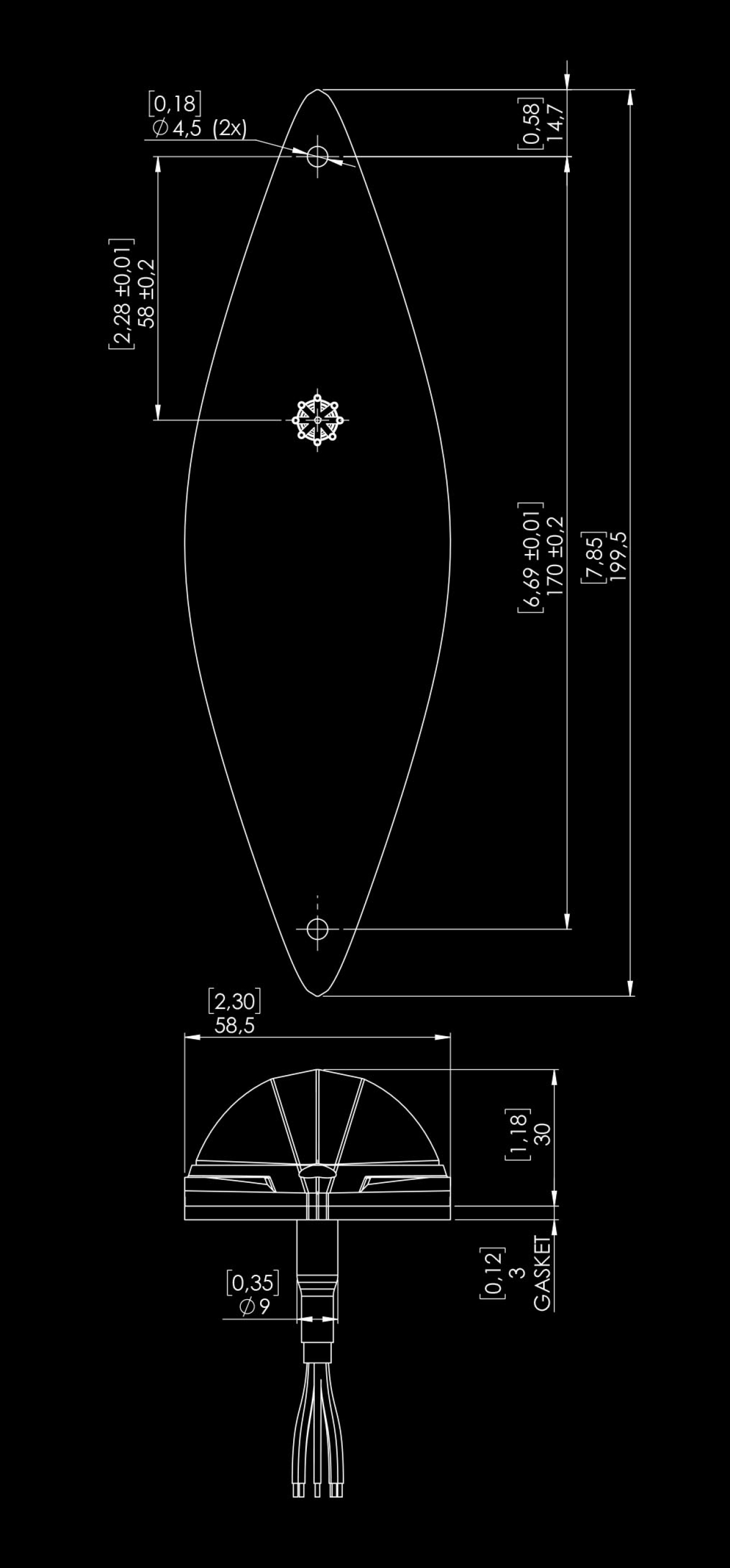

| Dimensions (mm) | 199.5 mm x 57.4 mm x 29 mm |
| Dimensions (inches) | 7.854“ x 2.260“ x 1.144“ |
| Weight | 250 g / 0.55 lb |
| Operating Voltage Range | 18-36 V DC |
| Input power (max) | White strobe: 100 W Red strobe: 35 W IR strobe: 30 W |
| Input current | White strobe branch: 3.6 A @28 V Red strobe branch: 1.2 A @28 V |
| Wavelength (IR) | IR 850nm |
| Repetition Rate of Strobe | 50 cycles per minute |
| Recommended size of mounting screw | M4 (DIN912) or SHCS #8-32 |
| Ambient Temperature | from -55°C to +85°C from -67°F to +185°F |
| Overheat Protection | Yes (+85°C) |
| Reverse Polarity Protection | Yes |
| Transient Voltage | 60V at 2sec max, both polarities |
| Under-Voltage Protection (lockout) | Yes (18V) |
| Over-Voltage Protection (lockout) | Yes (36V) |
| Waterproof, Dust-proof, Shock-proof, Vibration-proof | Yes |
