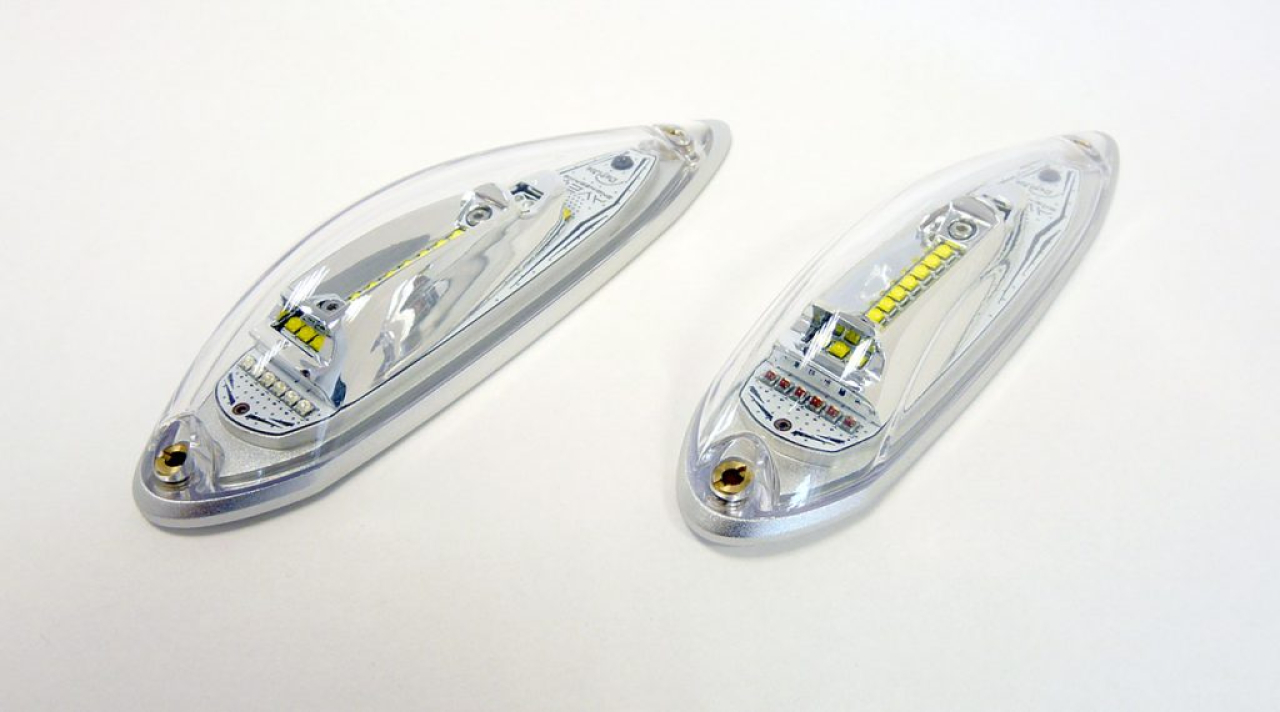

Andromeda DayLite™ 28VDC

Dimensions (mm):

134.7 mm x 33.6 mm x 28 mm

Dimensions (inches):

5.303” x 1.323” x 1.102”

Weight:

82 g / 2.89 oz

Operating Voltage Range:

18 – 36 V DC

Input Current – Position / Nav - green (@28V):

0.18 A

Input Current – Position / Nav - red (@28V):

0.17 A

Input Current – Strobe (@28V):

0.9 A peak

Input Power - Position / Nav - green:

5.04 W

Input Power - Position / Nav - red:

4.76 W

Input Power - Strobe:

25.2 W peak

Repetition Rate of Strobe:

50 cycles per minute

Recommended size of mounting screw:

M3, stainless steel recommended. Length depends upon placement location on wing tips.

Ambient Temperature:

from -40°C to +85°C
from -40°F to +185°F

Overheat Protection:

Yes

Reverse Polarity Protection:

Yes

Transient Voltage:

50 V DC for 1s

Under-Voltage Protection:

Yes

Over-Voltage Protection:

Yes

Waterproof, Dust-proof, Vibration-proof:

Yes
