EyeBeam Pilot™
Interior Focusable / Dimmable / Touch LED Light
Interior Focusable / Dimmable / Touch LED Light
Developed originally as an upgrade simple replacement to the Boeing 737 pilot overhead map lights, the Pilot™ has quickly become the coolest and most valuable upgrade to any cockpit in the world. Pilots rave about the change in their cockpit environment and its capabilities. Check it out!
Functions:

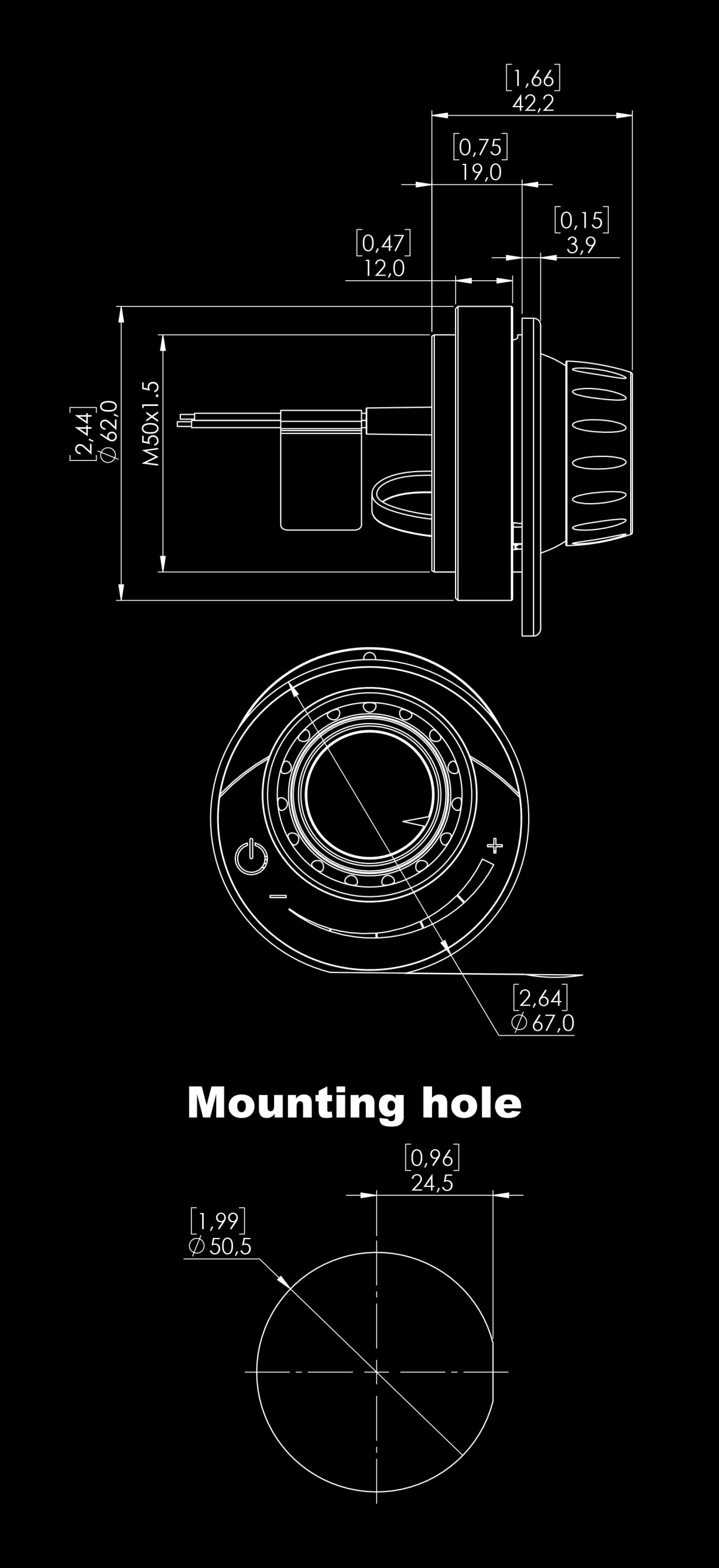

| Dimensions (mm) | 67 mm x 67 mm x 23.6 mm |
| Dimensions (inches) | 2.638“ x 2.638“ x 0.928“ |
| Weight | 130 g / 4.59 oz |
| Operating Voltage Range | 9 – 36 V DC |
| Input Current (Min) | 0.026A @14V 0.027A @28V |
| Input Current (Max) | 0.16A @14V 0.10A @28V |
| Input Power (Min) | 0.36W @14V 0.76W @28V |
| Input Power (Max) | 2.24W @14V 2.80W @28V |
| Repetition Rate of Strobe | 48 flash patterns per minute (96 strobes per min.) |
| Ambient Temperature | from -55°C to +85°C from -67°F to +185°F |
| Beam angle | from 14° to 40° |
