RedBaron NXT
Anti-collision Light

beacon-red-or-white-daylite
RedBaron NXT - anti-collision lights

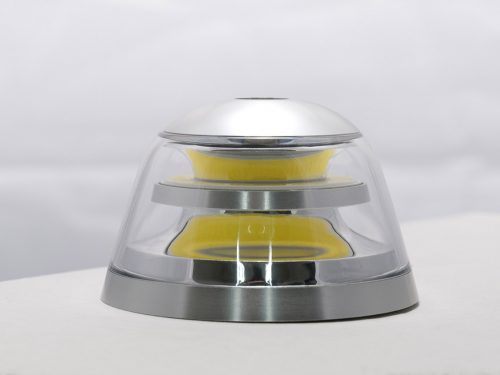

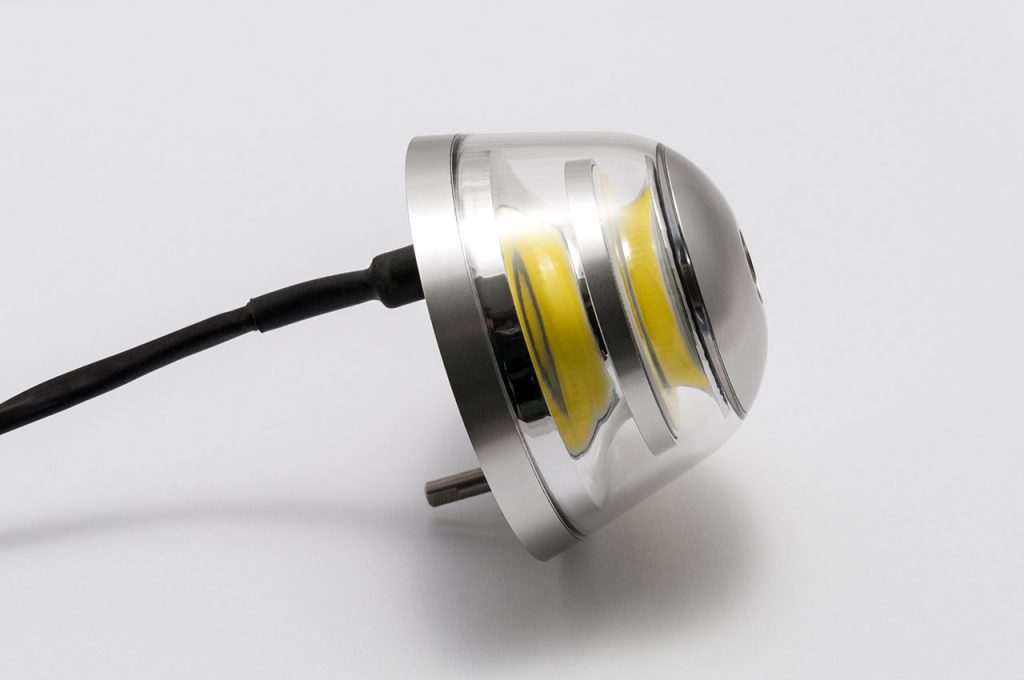

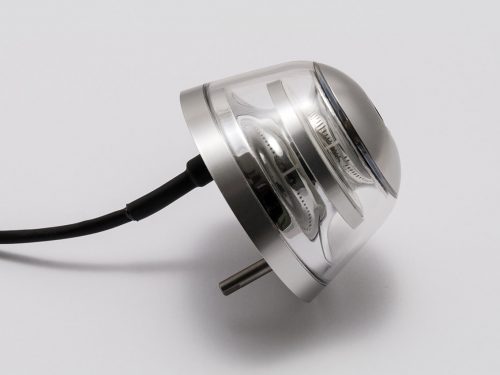

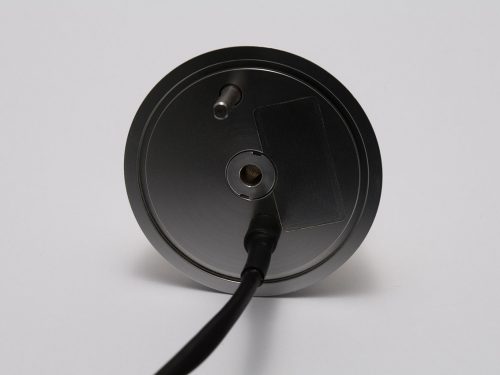

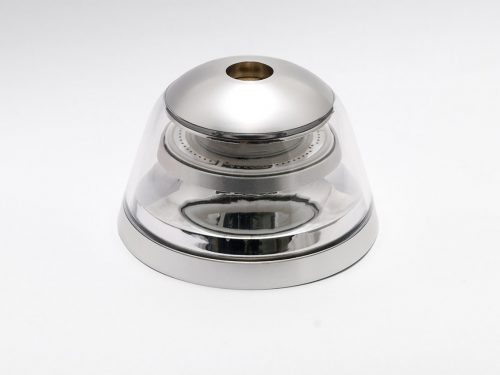

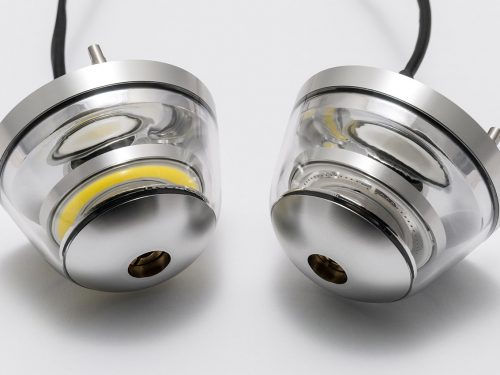

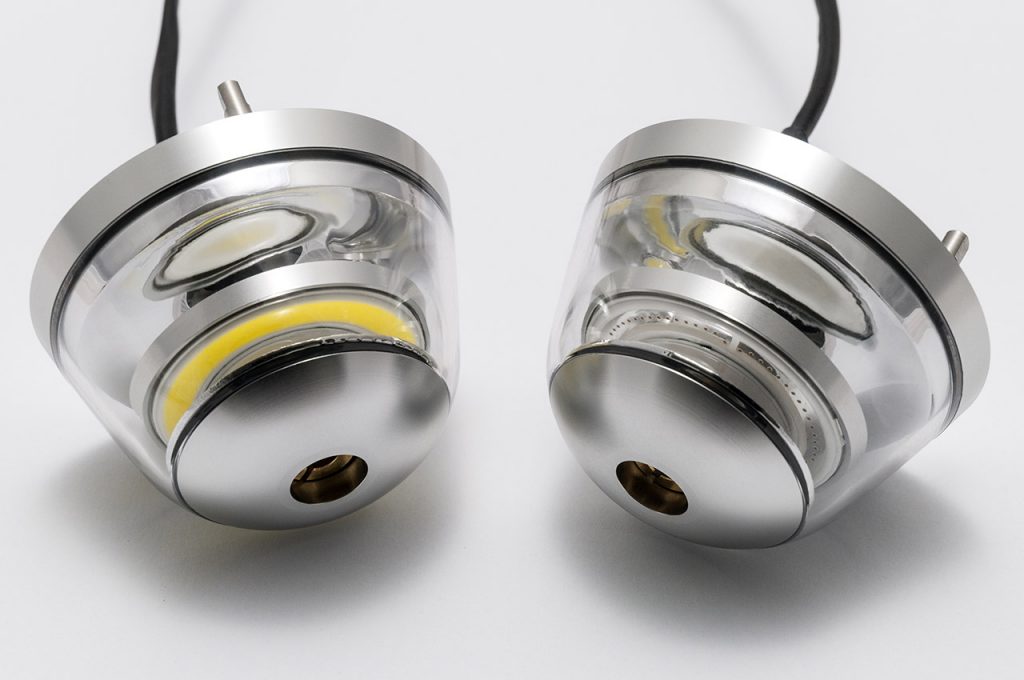

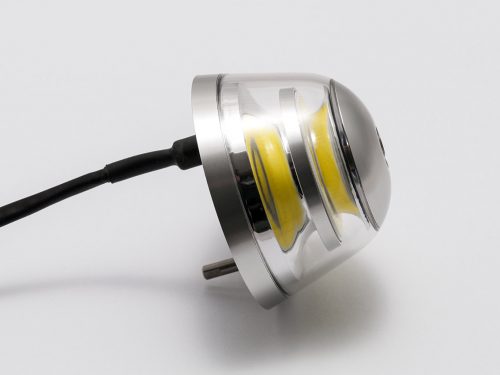

Anti-collision LED light – Red or White

At only 39.8 millimeters in height (1.565 inch) the new RedBaron NXT™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Specification

Dimensions (mm): 64 mm x 64 mm x 39,8 mm
Dimensions (inches): 2.52“ x 2.52“ x 1.565“
Weight: 90 g / 3.17 oz
Operating Voltage Range: 9 – 18 VDC
Input Current – Red Strobe: 3.20A @14V
Input Current – White Strobe: 4.88A @14V
Input Power – Red Strobe: 44.8W @14V
Input Power – White Strobe: 68.3W @14V
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: See pictures in section Drawing
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Reverse Polarity Protection: Yes
Transient Voltage: 80V, both polarities
Under-Voltage Protection (lockout): Yes (7.5V)
Over-Voltage Protection (lockout): Yes (19.9V)
Waterproof, Dust-proof, Vibration-proof: Yes

Installation Manual

DOWNLOAD HERE

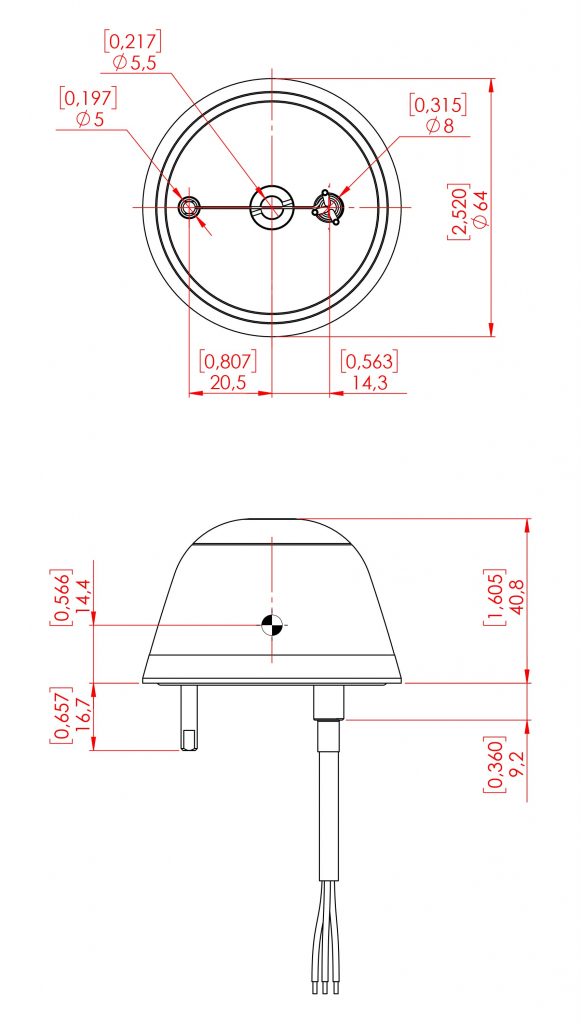

Drawing
