Hercules Drop-In Plus – PAR 36 Landing, Taxi, WigWag and Recognition Light with Hi-Lo Function

Hercules DropIn Plus - landing taxi wigwag recognition lights

PAR 36 Drop-In replacement

Landing, Taxi, WigWag or Recognition light for aircraft or helicopters

Aveo Engineering introduces the exclusive next-generation Hercules™ – Replacement for Legacy Lights. A PAR 36 drop-in multifunction (landing / taxi / wigwag / recognition / hi-lo) light with the legendary Hercules power!



Specification

Input voltage: from +9 to +36 VDC
Input current: Landing Mode:
2.5A @14 VDC
1.25A @28 VDC

Taxi Mode:
2.5A @14 VDC
1.25A @28 VDC
Input power: Landing Mode:
28W @14 VDC
28W @28 VDC

Taxi Mode:
35W @14 VDC
35W @28 VDC
Transcient voltage: 2 seconds +80V
Under-voltage lockout: +9 VDC, not more
Over-voltage lockout: +36 VDC, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Color and shade: Cool White
Overheat protection: temperature dependent decrement intensity
Weight: 403g / 0.888 lb
Useful life: not less than 15.000 aircraft flight hours
Dimension: See drawing

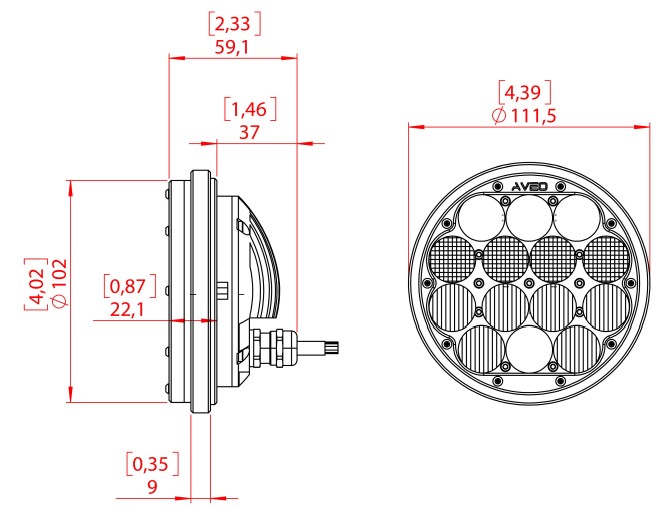

Drawing

HerculesDI Plus - drawing

Installation Manual

DOWNLOAD HERE
