RedBaron Combo HISL 1000™

Introducing the Aveo RedBaron Combo HISL 1000™, a light designed to far exceed all requirements for anti-collision lights in all categories of aircraft.

If you operate in bad weather, or night operations over urban areas with intense ground light below, or you just want to be sure you are seen, then there is only one light in the world for your helicopter or aircraft or UAV, the RedBaron Combo HISL 1000™. Nothing else in the industry comes close!

Red and White

The RedBaron Combo HISL 1000™ features the world’s highest output LEDs, chromaticity compliant and intensity far exceeding the aerospace TSO regulations worldwide.

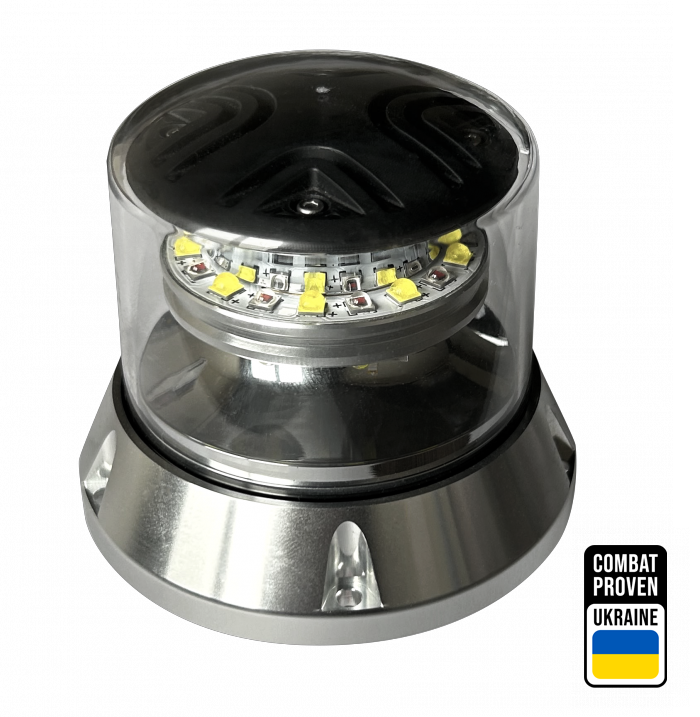

Aveo RedBaron Combo HISL 1000 - anticollision light
Aveo HISL1000 - anti-collision light

Specification

Dimensions (mm): 77 mm x 77 mm x 68 mm
Dimensions (inches): 3.031“ x 3.031“ x 2.677“
Weight: 0.365 kg / 0.8 lb
Operating Voltage Range: 18 – 36 V DC
Input Current – Red Strobe: 1.64A @28V
Input Current – White Strobe: 1.88A @28V
Input Power – Red Strobe: 45.9W @28V
Input Power – White Strobe: 52.5W @28V
Repetition Rate of Strobe: 48 flash patterns per minute
(96 strobes per min.)
Recommended size of mounting screw: Screw M3x12 DIN 912 (AVS-11430903012)
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Overheat Protection: Yes (+75°C / +167°F)
Reverse Polarity Protection: Yes
Transient Voltage: 2 seconds +80 V DC
Under-Voltage Protection (lockout): +17 V DC, not more
Over-Voltage Protection (lockout): +36.7 V DC
Waterproof, Dust-proof, Vibration-proof: Yes

Installation Manual

DOWNLOAD HERE

Drawing

technical drawing
